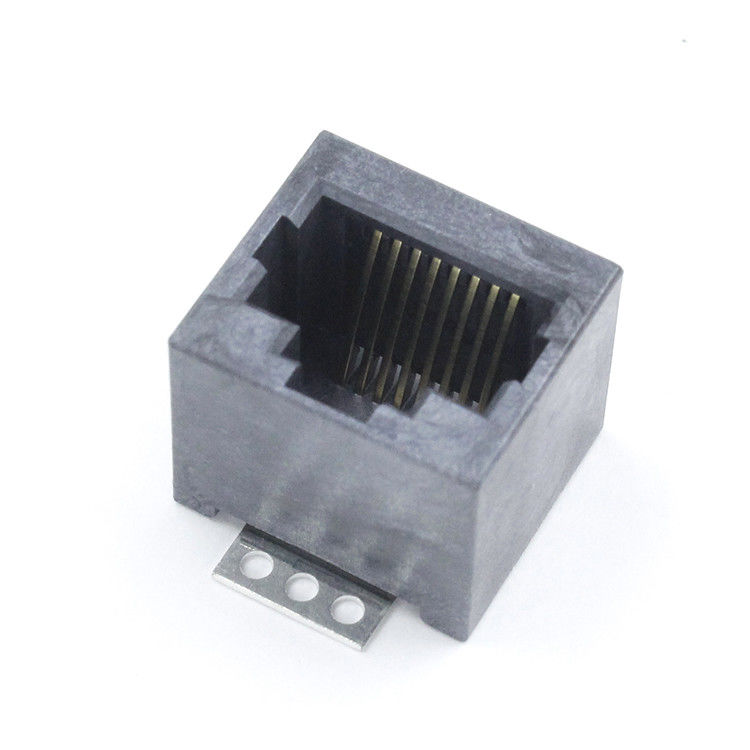

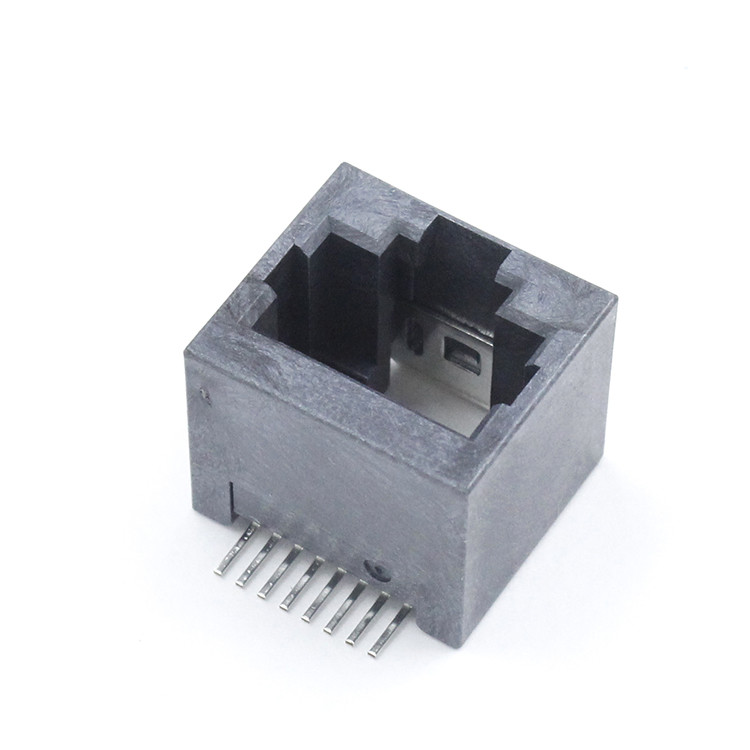

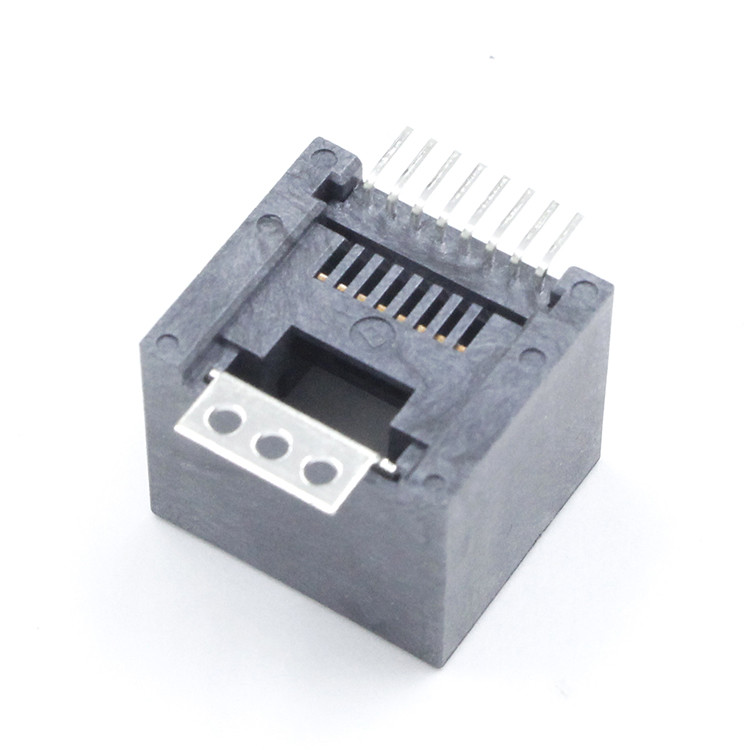

8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
Contact Now

8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52S811SXX31

Detail Information
Jack Type: RJ45 PLUG Number Of Positions: 8
Terminals Per Port: 8 Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
High Light:

rj45 female connector

,

surface mount rj45 plug

,

8P8C RJ45 Ethernet Jack No LED

Product Description

SMT 1X1 RJ45 8P8C Connector without Integrated Magnetics ,unshield,,wihtout LED,Tab Up,RoHS TM52S811SXX31



Materials:


Housing : LCP,BLACK,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 3U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: NO Shield
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Connector Length: 14.0 mm
Connector Width: 15.60 mm
Connector Height: 12.8 mm
Termimal Solder Pin Length: 2.6 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM52S811SXX31) Attributes:



Model: TM52S811SXX31
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45 PLUG
Number of Positions : 8
Terminals per Port: 8
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52S811SXX31) Mechnical Drawing:



8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 0
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 18P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 28P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31 3
