Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 100pcs/tray | Delivery Time : | 20 Days |
| Payment Terms : | T/T, Western Union,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM52S511SXX31 |
|
Detail Information |
|||
| Number Of Positions: | 6 | Terminals Per Port: | 6 |
|---|---|---|---|
| Shielded EMI Tabs: | No | Voltage Rating: | 125 V |
| Current Rating: | 1.5 A | Contact Resistance: | 30mΩ |
| Insulation Resistance: | 500 MΩ MIN @ 500V DC | Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN |
| Highlight: | rj45 smt connector,surface mount rj45 plug,6P6C 1X1 Port SMT RJ45 Jack |
||
Product Description

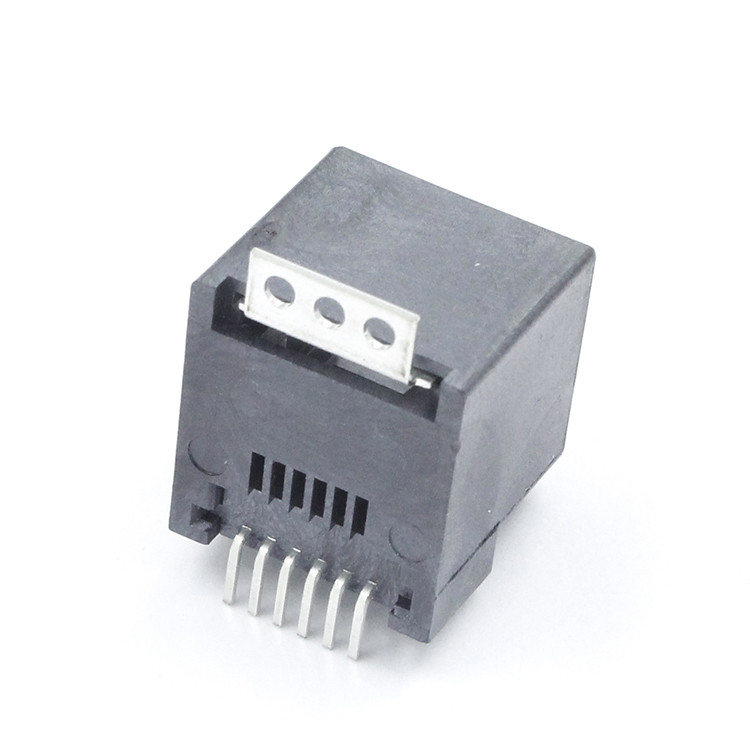

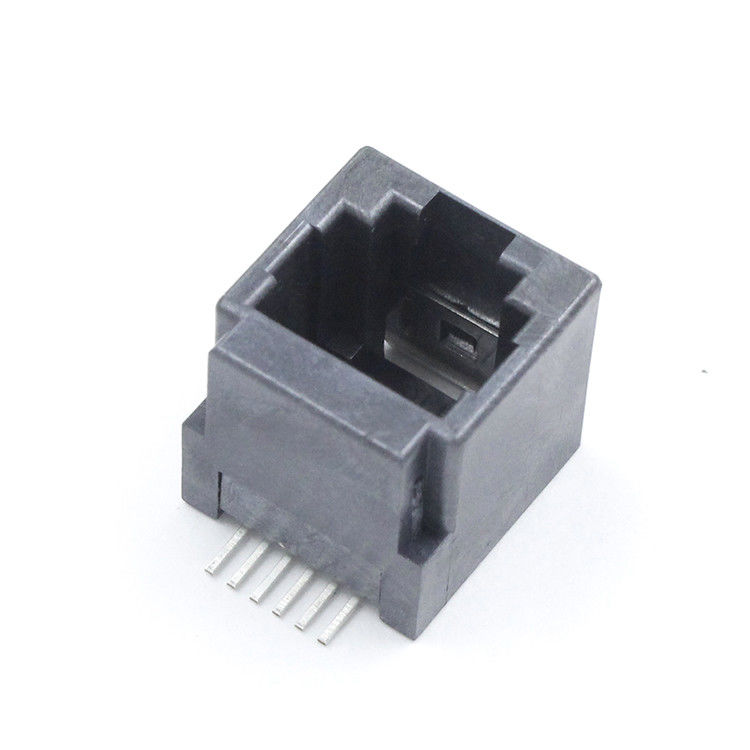

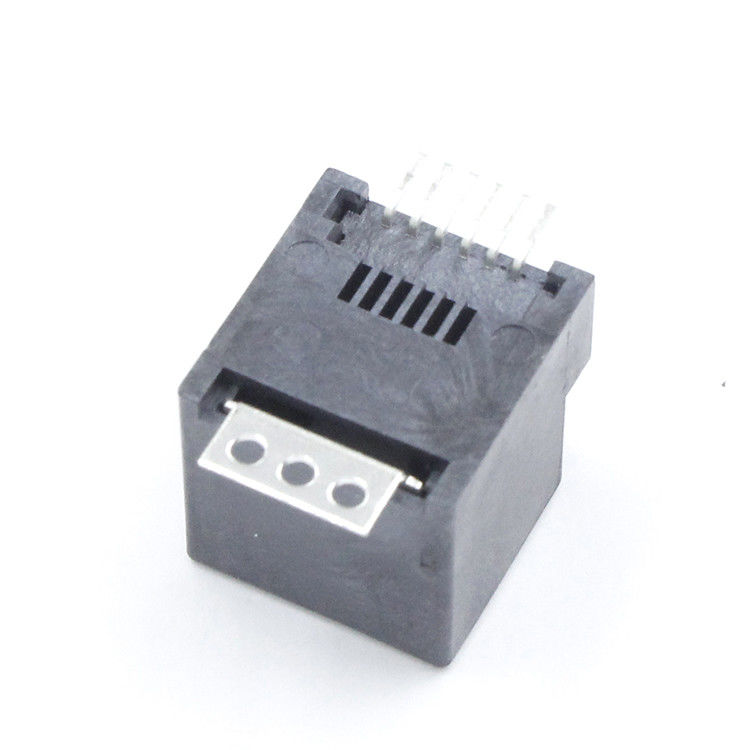

180 degree surface mount rj45 Modular connector, Unshielded 6p6c 1X1 SMT without leds TM52S511SXX31
Materials:
Housing : LCP,BLACK,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 3U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: NO Shield
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ11 Jack
1 x 1 Port / Single Port / SMT Port
Connector Length: 14.0 mm
Connector Width: 13.20 mm
Connector Height: 12.8 mm
Termimal Solder Pin Length: 2.65 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ11 Without Transformer (TM52S511SXX31) Attributes:
| Model: | TM52S511SXX31 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ11 Modular Connector |
| Jack Type: | RJ11 PLUG |
| Number of Positions : | 6 |
| Terminals per Port: | 6 |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ11 Female Connector (TM52S511SXX31) Mechnical Drawing:
