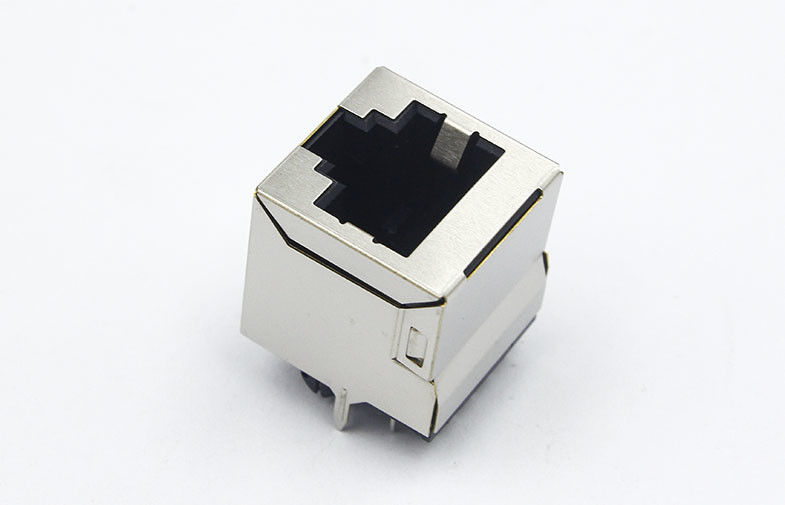

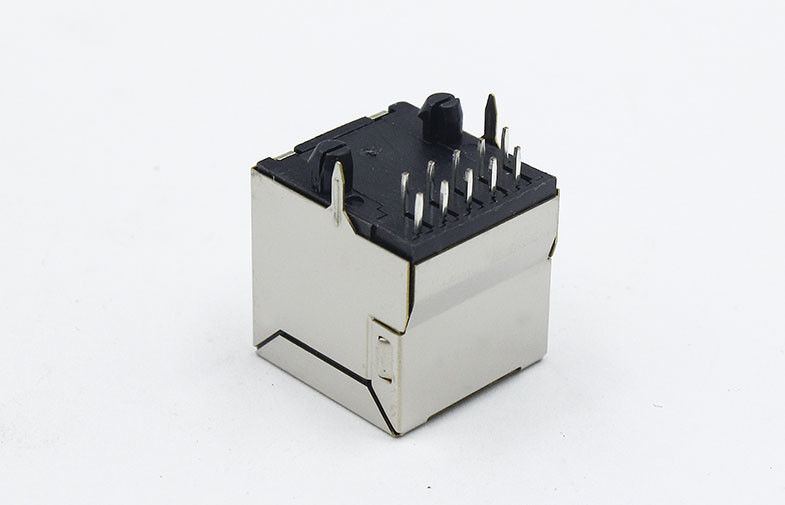

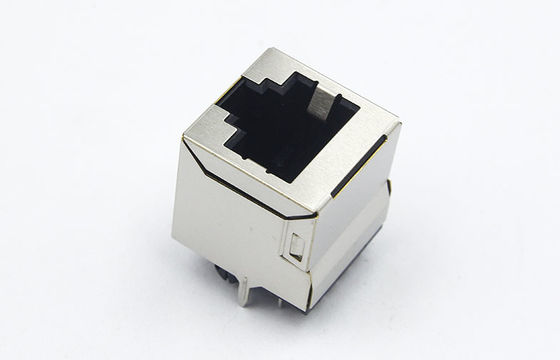

Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41
Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41
Contact Now

Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,2340pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52D011EXX41

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 10 Terminals Per Port: 10
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 90pcs/tray,2340pcs/carton
High Light:

10 pin ethernet connector

,

rj45 network jack

,

Cat5e Tab Up RJ45 Network Jack

Product Description

Cat5e Tab UP Single Port 10 pins Contacts shield without leds TM52D011EXX41



Materials:




Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all


Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 16.59 mm
Connector Width: 15.86 mm
Connector Height: 16.38 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
We Support Custom service as required


RJ45 Without Transformer (TM52D011EXX41) Attributes:



Model: TM52D011EXX41
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray,2340pcs/carton

Delivery Time:

 20 Days



RJ45 Female Connector (TM52D011EXX41) Mechnical Drawing:

Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 0Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 1Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 2Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 3Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 4Cat5e Tab Up RJ45 Single Port / Rj45 Network Jack 10 Pins Contacts with Shield TM52D011EXX41 5
