Home ProductsRJ45 Cable CouplerUL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer

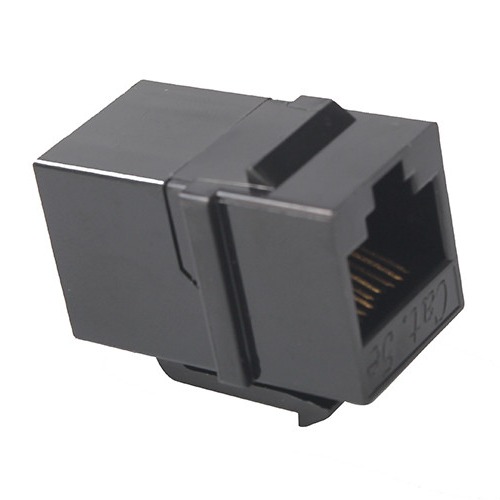

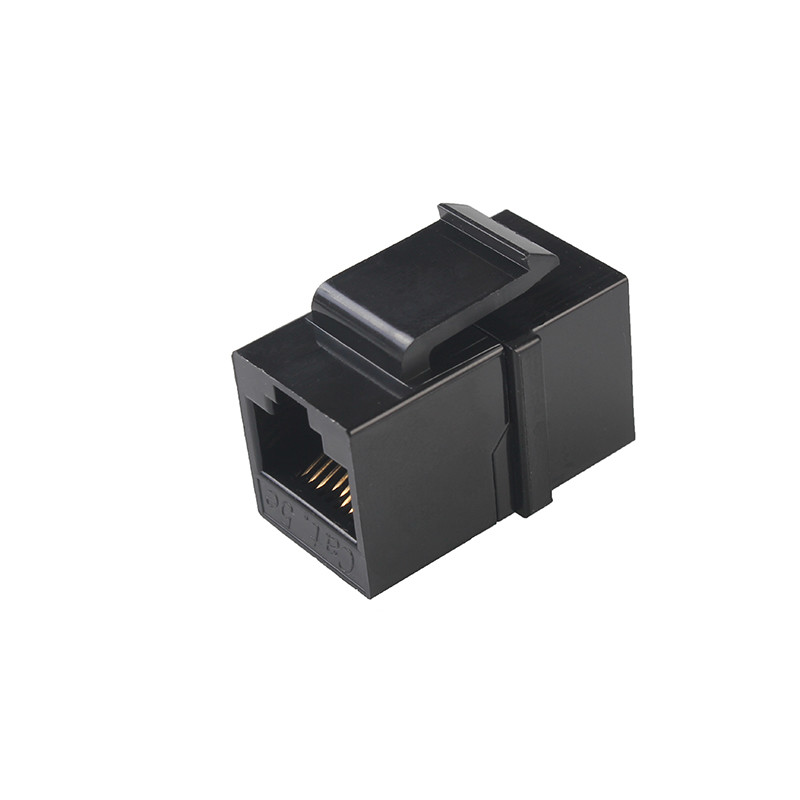

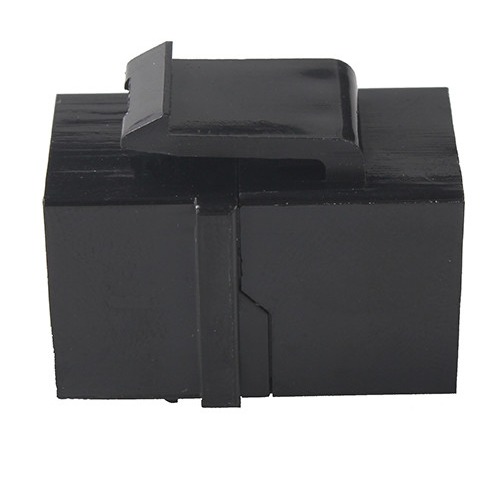

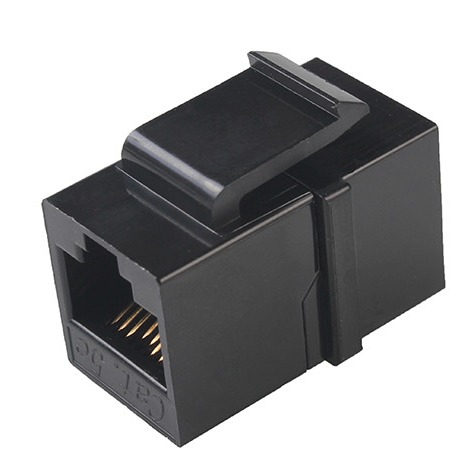

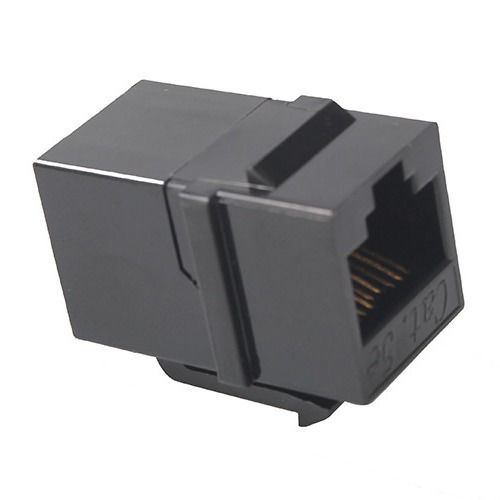

UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer
UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer
Contact Now

UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer

Minimum Order Quantity : 1 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT5811SK004207111059

Detail Information
Voltage Rating: 125 V Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Jack Type: RJ45 Number Of Positions: 8
Terminals Per Port: 8 LED Option: No
Shielded EMI Tabs: No Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Durrability: 750 CYCLES MIN
High Light:

Reach RJ45 Cable Coupler

,

Reach Cat5e Rj45 Connector

,

Rohs Cat5e Rj45 Connector

Product Description

UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer



Unshielded Cat5e Rj45 Connector Clip On Straight Extension Without Transformer


Cat5e RJ45 Adapter (TMZT5811SK004207111059) Attributes:

Model: TMZT5811SK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Cat5e RJ45 Adapter (TMZT5811SK004207111059) Mechnical Drawing:

UL Rohs Reach ISO9001 Cat5e RJ45 Cable Coupler Without Transformer 0

Cat5e RJ45 Adapter Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Cat5e RJ45 Adapter Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Length: 27.6 mm
RJ45 Connector Width: 14.4 mm
RJ45 Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
