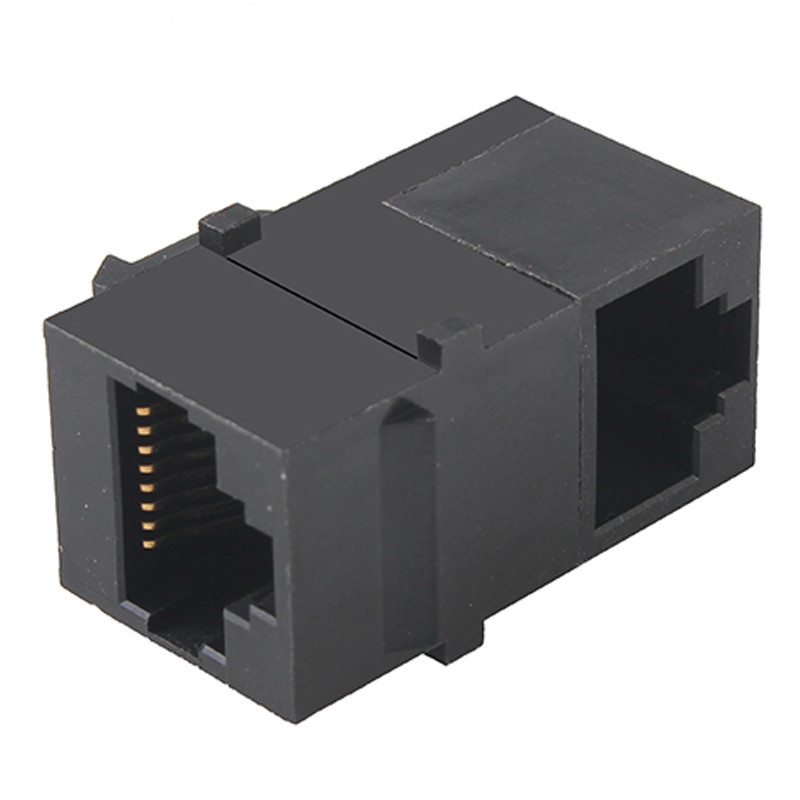

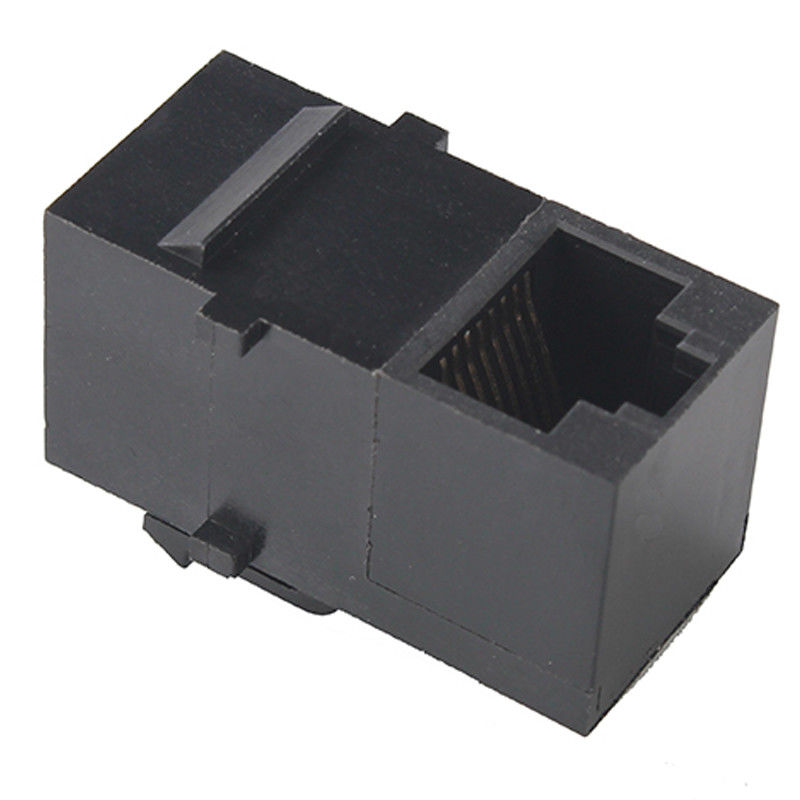

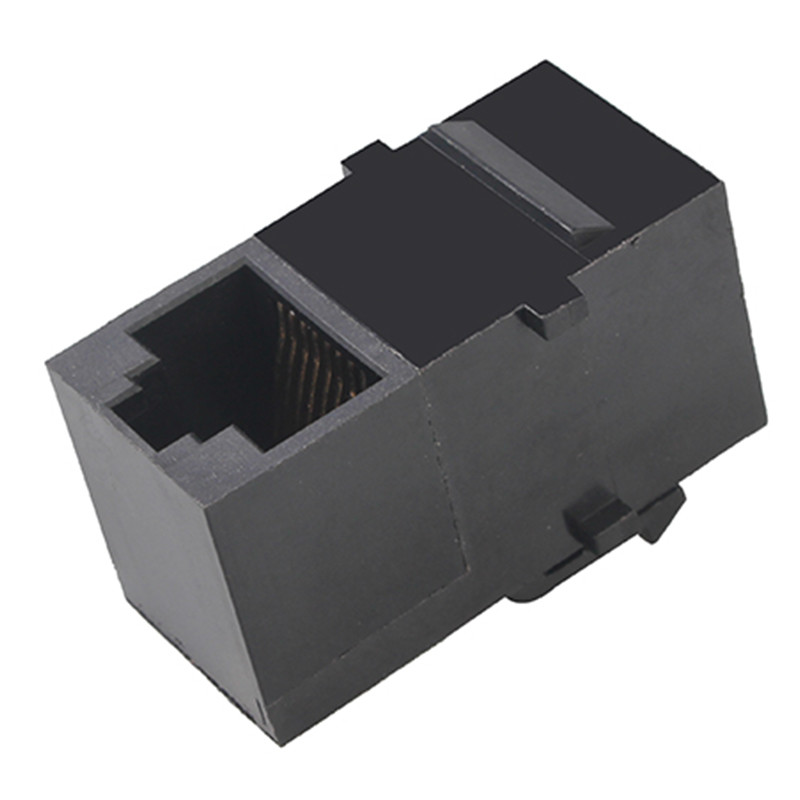

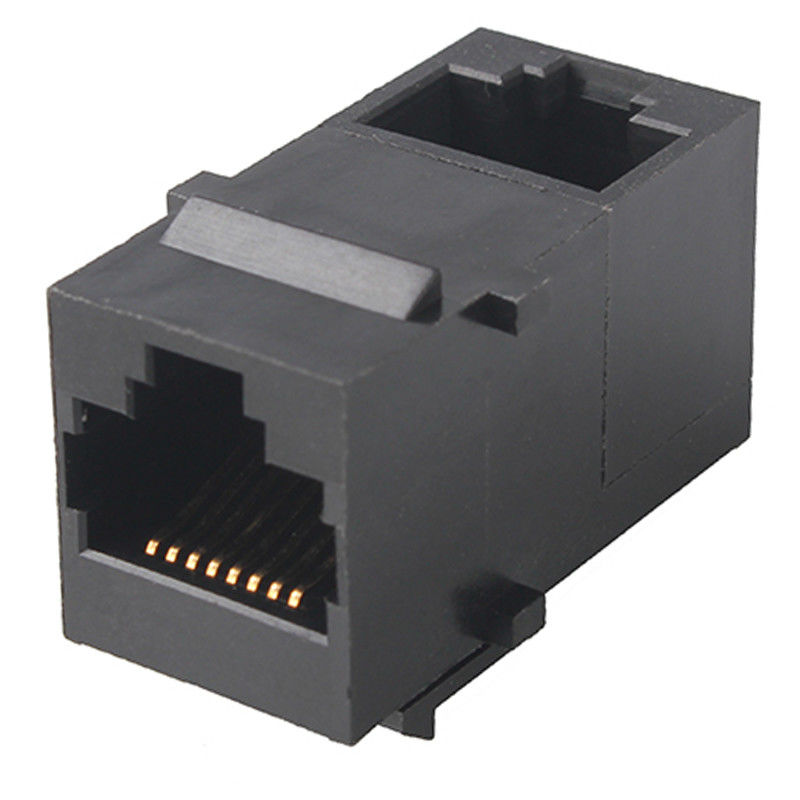

Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter
Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter
Contact Now

Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,1000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT8811SK004201111000

Detail Information
Voltage Rating: 125 V LED Option: No
Jack Type: RJ45 Number Of Positions: 8
Terminals Per Port: 8 Shielded EMI Tabs: No
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Cat3e RJ45 Cable Coupler

,

30mΩ RJ45 Cable Coupler

,

Cat3e Ethernet Female Adapter

Product Description

Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter

Cat3e RJ45 Female Adapter RJ45 Modular Connector 8p8c Rj45 Switching Power

RoHS cat3e plastic 8p8c rj45 switching power adapter ​

rj45 switching power adapter(TMZT8811SK004201111000) ​Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.

RJ45 Without Transformer (TMZT8811SK004201111000) Product Structure:
RJ45 Modular Jack
Connector Length: 30.6 mm
Connector Width: 14.40 mm
Connector Height: 16.05 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TMZT8811SK004201111000) Attributes:

Model: TMZT8811SK004201111000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 50pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year


RJ45 Without Transformer (TMZT8811SK004201111000)Mechnical Drawing:

Cat3e Ethernet Female RJ45 Cable Coupler 8p8c Switching Power Adapter 0
