Home ProductsRJ45 Cable CouplerCat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059

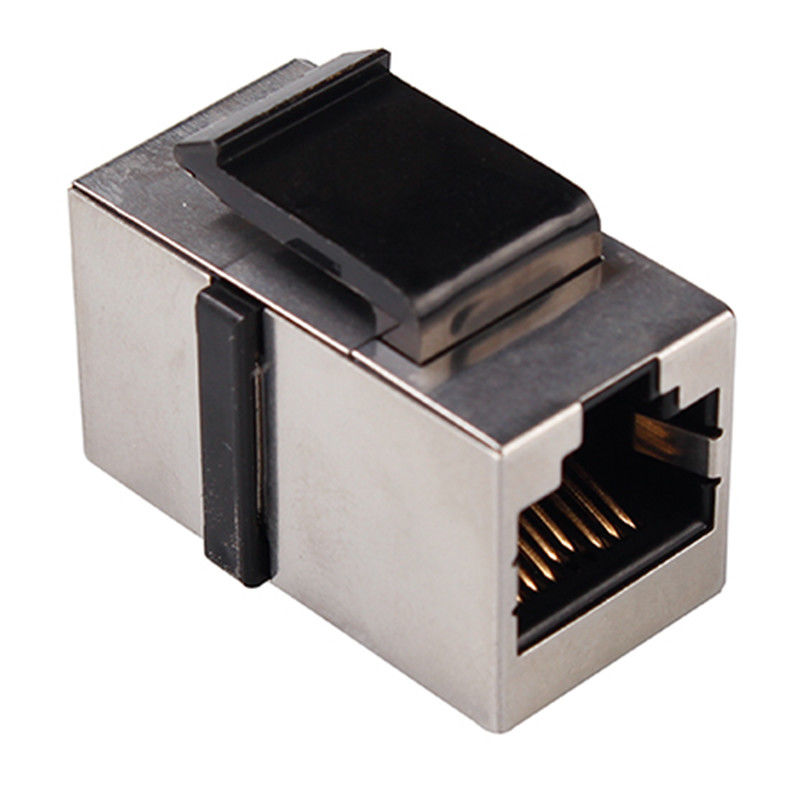

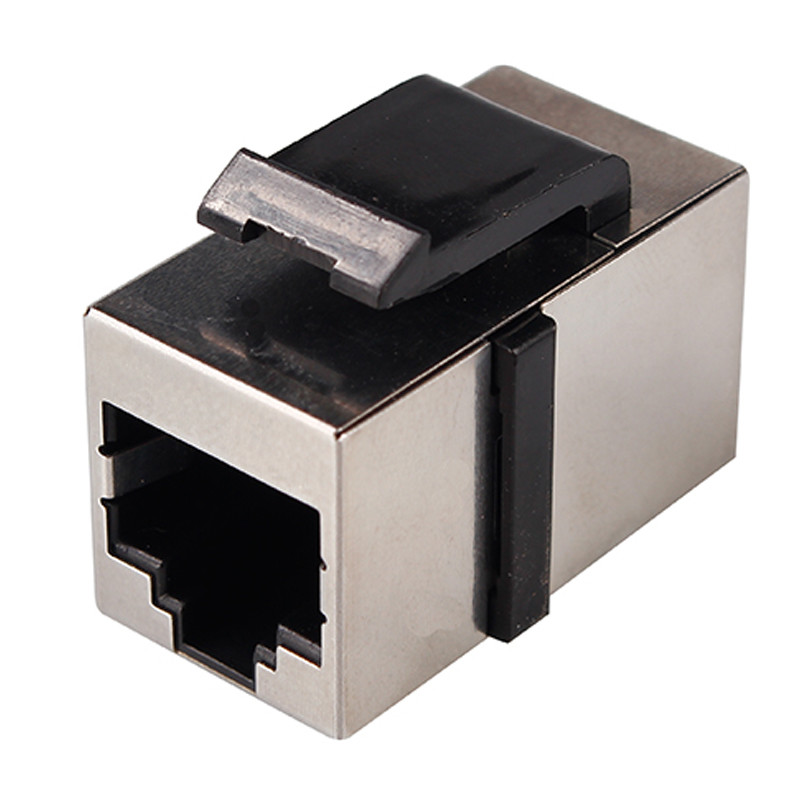

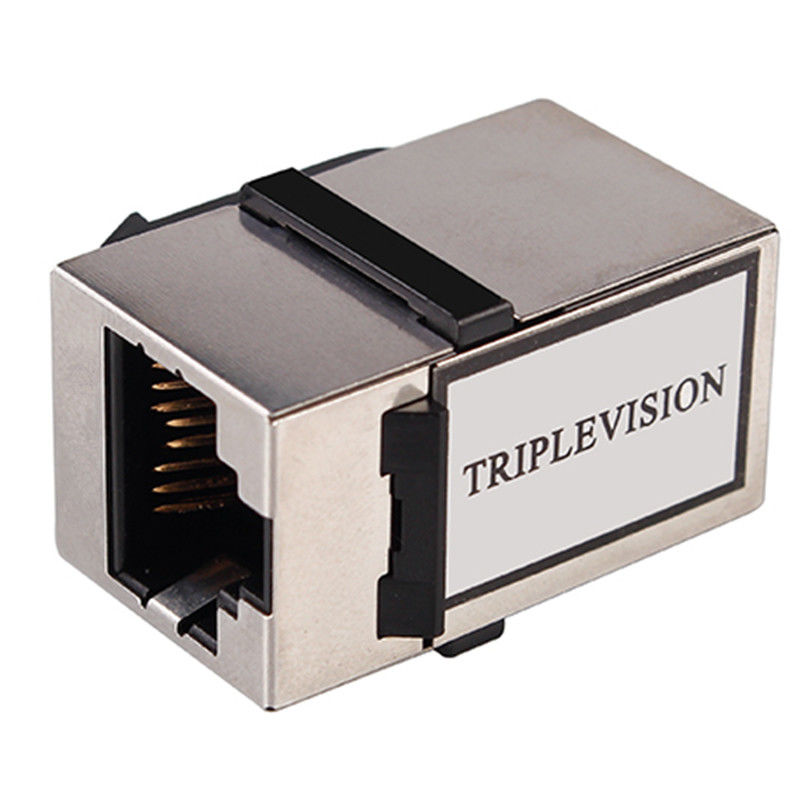

Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059 Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059 Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Contact Now

Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT5811EK004207111059

Detail Information
Voltage Rating: 125 V Current Rating: 1.5 A
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

ethernet female adapter

,

shielded rj45 connector

,

Cat5e RJ45 Keystone Jack

Product Description

Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059



Cat6 RJ45 Keystone Adapter Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: Stainless Steel.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Cat6 RJ45 Keystone Adapter Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


Cat6 RJ45 Keystone Adapter (TMZT5811EK004207111059) Attributes:

Model: TMZT5811EK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Cat6 RJ45 Keystone Adapter (TMZT5811EK004207111059) Mechnical Drawing:



Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059 0Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059 1
