Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle

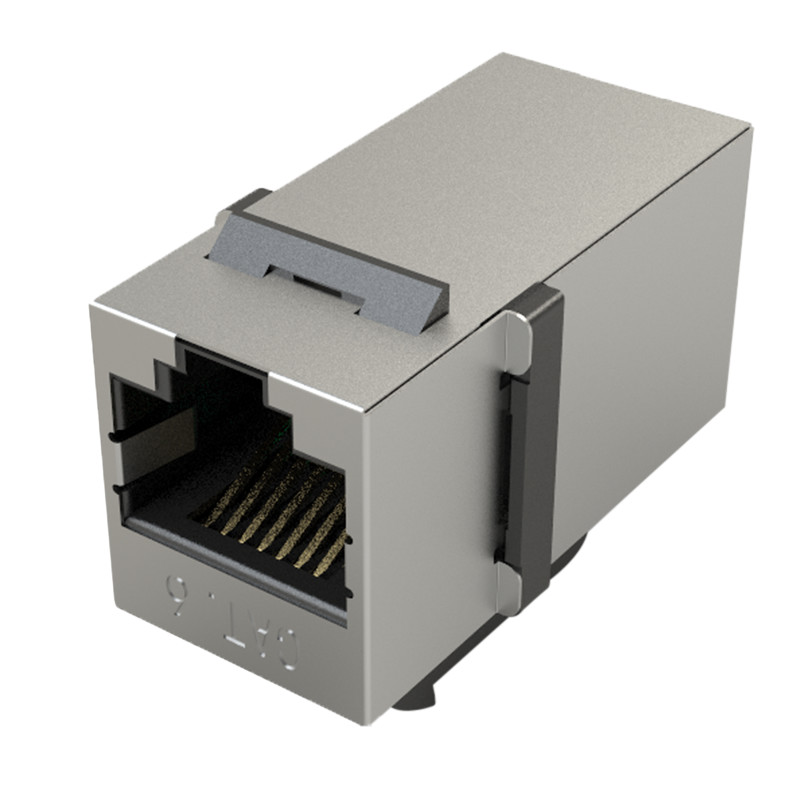

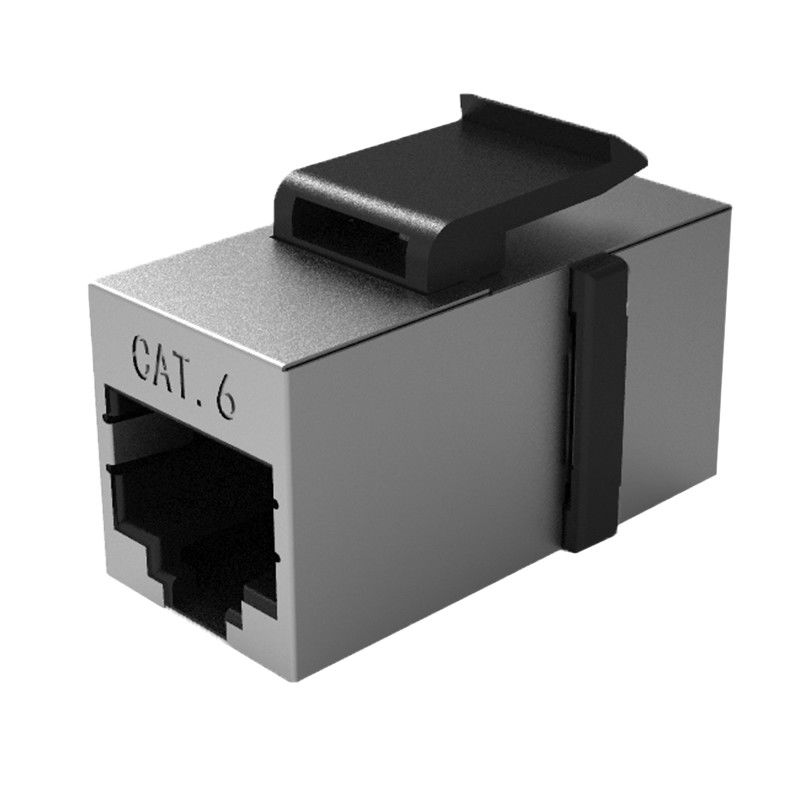

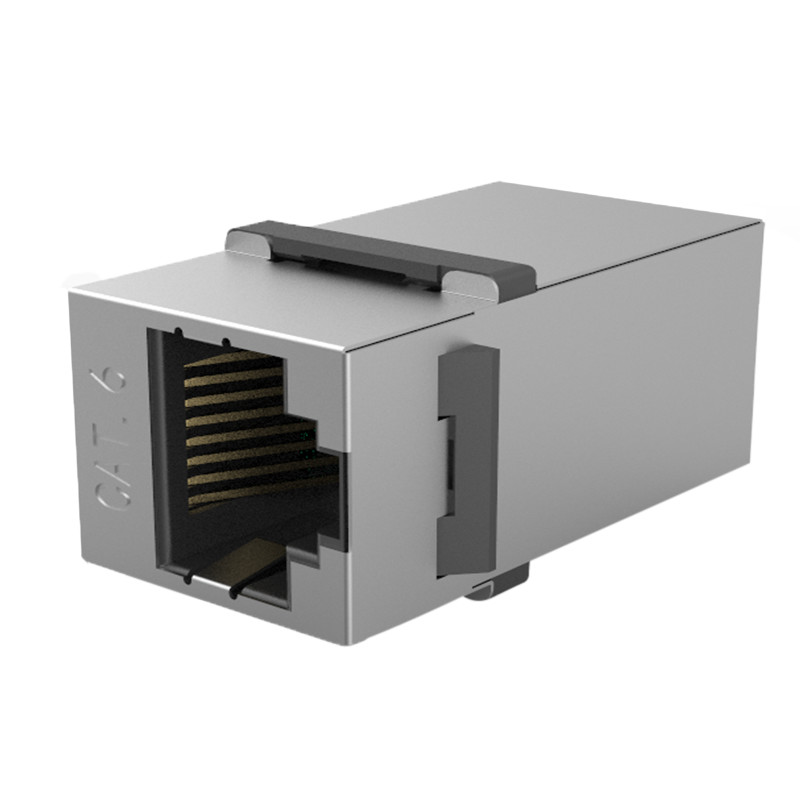

Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Contact Now

Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,1000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZTC811EK007208111010

Detail Information
Contact Resistance: 30mΩ Number Of Positions: 8
Product Type: RJ45 Modular Connector Jack Type: RJ45
Terminals Per Port: 8 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5A Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Cat6e RJ45 Cable Coupler

,

Cat6e RJ45 Keystone Jacks

,

1.5A RJ45 Cable Coupler

Product Description

Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle



Cat6e Single Port Metal Shielded Rj45 adapter ,8p8c Right Angle RJ45 keystone jack


RJ45 keystone jack(TMZTC811EK007208111010) Product Structure:
RJ45 keystone jack
1 x 1 Port / Single Port / One Port
Connector Length: 31.20 mm
Connector Width: 14.4 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 keystone jack(TMZTC811EK007208111010) Attributes:

Model: TMZTC811EK007208111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 keystone jack
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 50pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 keystone jack(TMZTC811EK007208111010) Mechnical Drawing:



Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle 0
