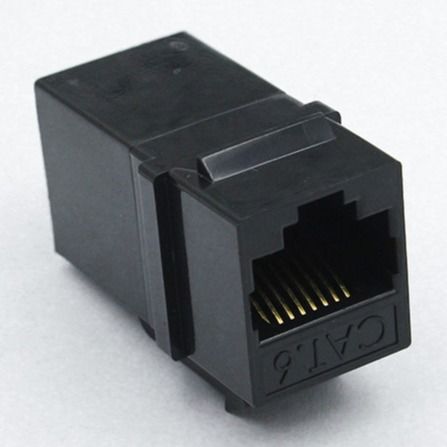

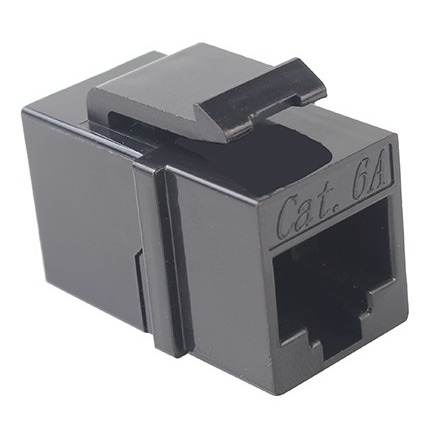

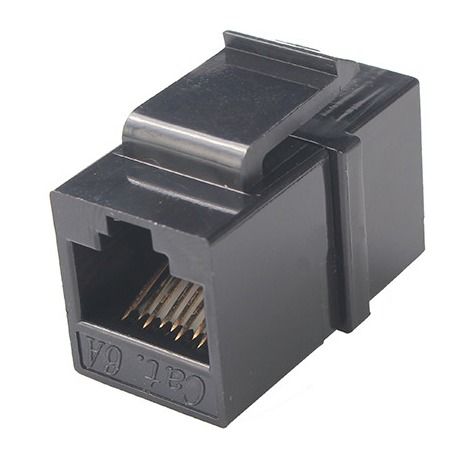

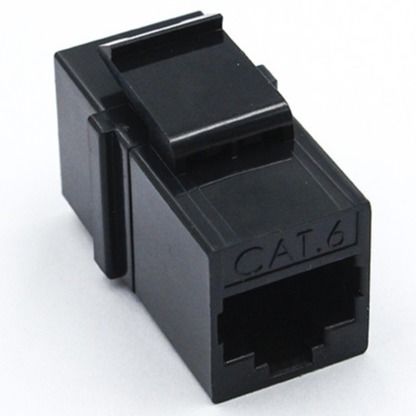

Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer
Contact Now

Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZTC811SK007207111010

Detail Information
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Unshielded RJ45 Cable Coupler

,

125V 1.5A RJ45 Cable Coupler

,

Cat6e Rj45 Single Port

Product Description

Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer



Cat6e Unshielded Ethernet Connector Rj45 Single Port Adaptor without transformer TMZTC811SK007207111010



Rj45 Single Port Adaptor (TMZTC811SK007207111010)Materials:



Housing : ABS,UL94V-0 ( RoHS )

Contact Finish: T=0.30 mm GOLD PLATING 50U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Rj45 Single Port Adaptor (TMZTC811SK007207111010)Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / CAT6 RJ45 Modular Jack
Connector Length: 30.60 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required




Rj45 Single Port Adaptor (TMZTC811SK007207111010) Attributes:



Model: TMZTC811SK007207111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Rj45 Single Port Adaptor (TMZTC811SK007207111010)Mechnical Drawing:



Unshielded RJ45 Cable Coupler Single Port Adaptor Without Transformer 0
