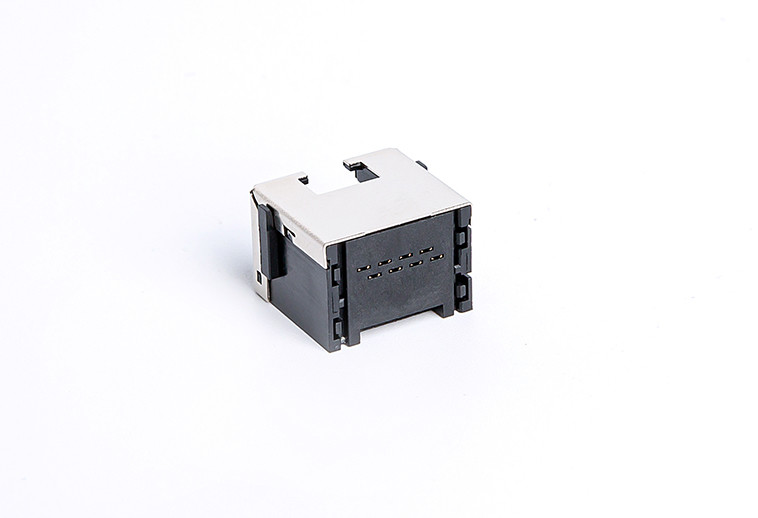

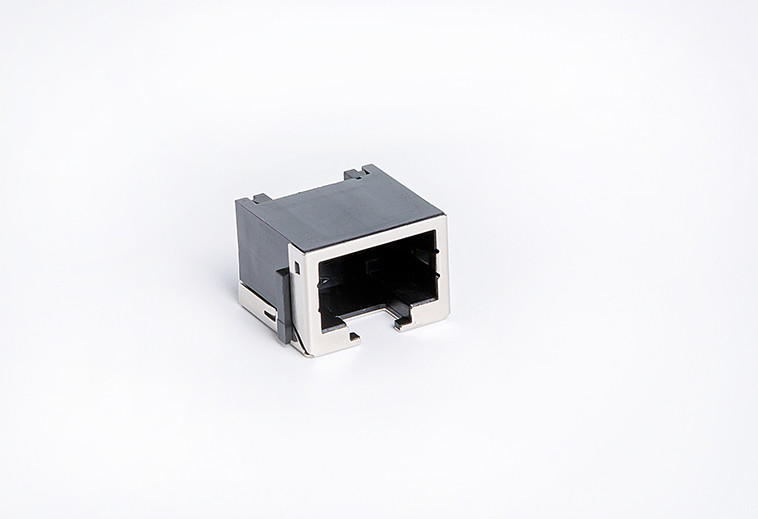

Copper Alloy Shielded RJ45 Single Port / Rj45 8p8c Jack Without LED TMCPS811EXX1
Copper Alloy Shielded RJ45 Single Port / Rj45 8p8c Jack Without LED TMCPS811EXX1 Copper Alloy Shielded RJ45 Single Port / Rj45 8p8c Jack Without LED TMCPS811EXX1
Contact Now

Copper Alloy Shielded RJ45 Single Port / Rj45 8p8c Jack Without LED TMCPS811EXX1

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : 100pcs/tray,3000pcs/carton Delivery Time : 15 days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCPS811EXX11

Detail Information
HOUSING MATERIAL: PA66 CONTACT MATING AREA PLATING: GOLD 6U'' PLATING
LED OPTION: N/A NUMBER OF PORTS: 1X1
NUMBER OF CONTACTS: 8 SHIELD PLATING MATERIAL: THICKNESS SUS201
SHIELD EMI TABS: NO SHIELD: YES
PCB MOUNT ANGLE: SIDE ENTRY PACKAGE: DIP
LATCH ORIENTATION: LATCH UP Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1200pcs Package: 100pcs/tray,3000pcs/carton
Delivery Time: 20 Days Supply Ability: 5KK/year
High Light:

rj45 modular socket

,

shielded rj45 jack

,

Copper Alloy Shielded RJ45 Jack

Product Description

Copper Alloy Shield Single Port Rj45 Magnetics Connector , Tab Up 8P8C SMT Magnetic Rj45 Jack Without LED TMCPS811EXX1




RJ45 Without Transformer (TMCPS811EXX11) Attributes:







Model: TMCPS811EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1200pcs
Package: 100pcs/tray,3000pcs/carton
Delivery Time: 20 Days
Supply Ability:

5KK/year
