Free Sample Up Latch SMT 10/100 rj45 connector with magnetics TM811bd2aab016007
Free Sample Up Latch SMT 10/100 rj45 connector with magnetics TM811bd2aab016007 Free Sample Up Latch SMT 10/100 rj45 connector with magnetics TM811bd2aab016007
Contact Now

Free Sample Up Latch SMT 10/100 rj45 connector with magnetics TM811bd2aab016007

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM811BD2AAB016007

Detail Information
CONNECTOR TYPE: BLACK LENGTH: 23mm
LED OPTION: N/A NUMBER OF CONTACTS: 8
GROUNDING OPTIONS: Panel Ground And PCB Ground HOUSING MATERIAL: PBT UL94V-0
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: No
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: SMD CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
High Light:

rj45 8p8c jack

,

rj45 modular socket

Product Description

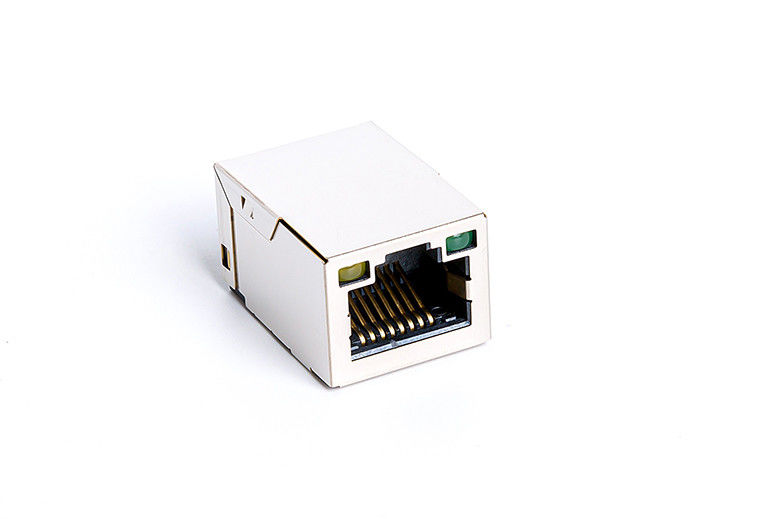

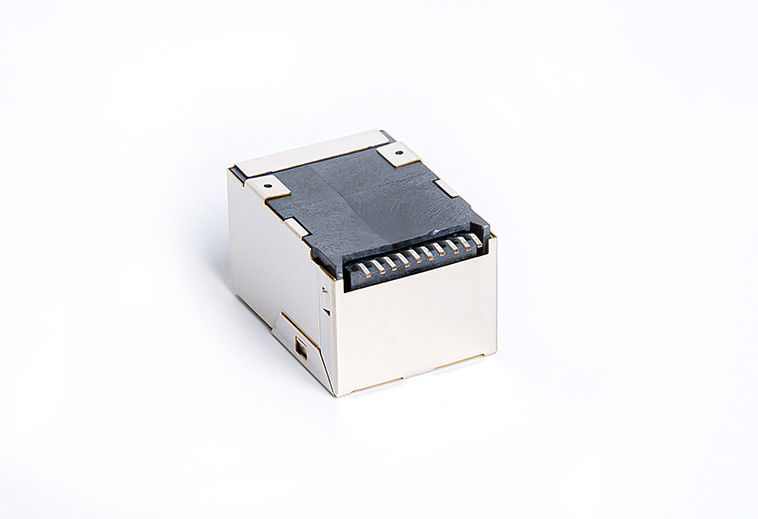

Free Sample Up Latch SMT 10/100 rj45 connector with magnetics TM811bd2aab016007



RJ45 Without Transformer (TM811BD2AAB016007) Attributes:

Model Number TM811BD2AAB016007
LENGTH 23mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION N/A
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS No
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE SMD
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH Up



RJ45 Female Connector (TM811BD2AAB016007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.







Tag:

rj45 smt connector

surface mount rj45 plug

rj45 female connector
