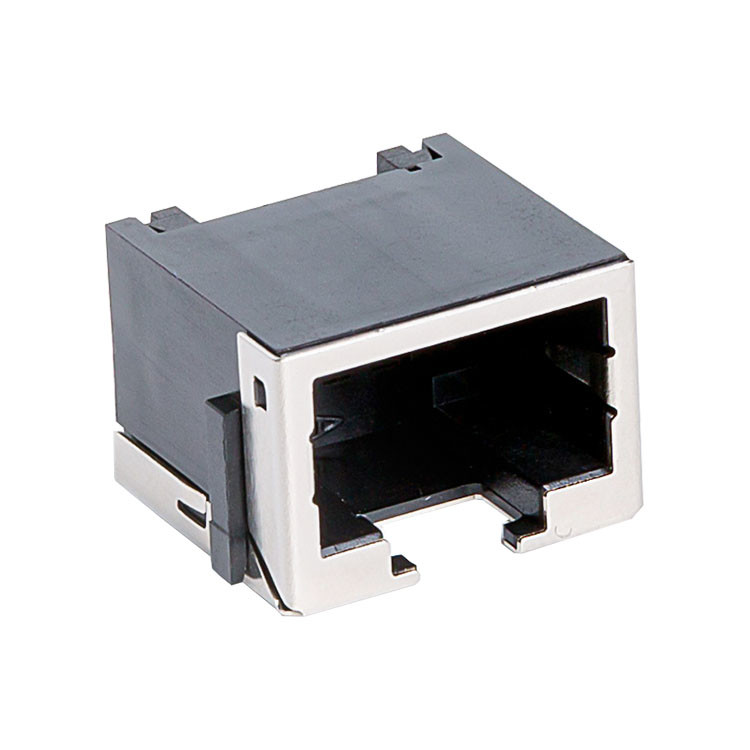

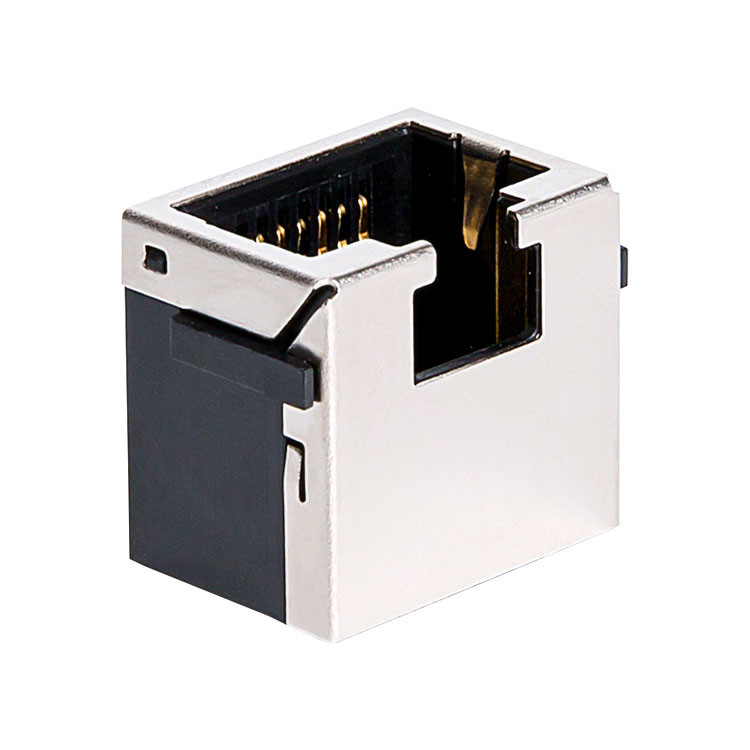

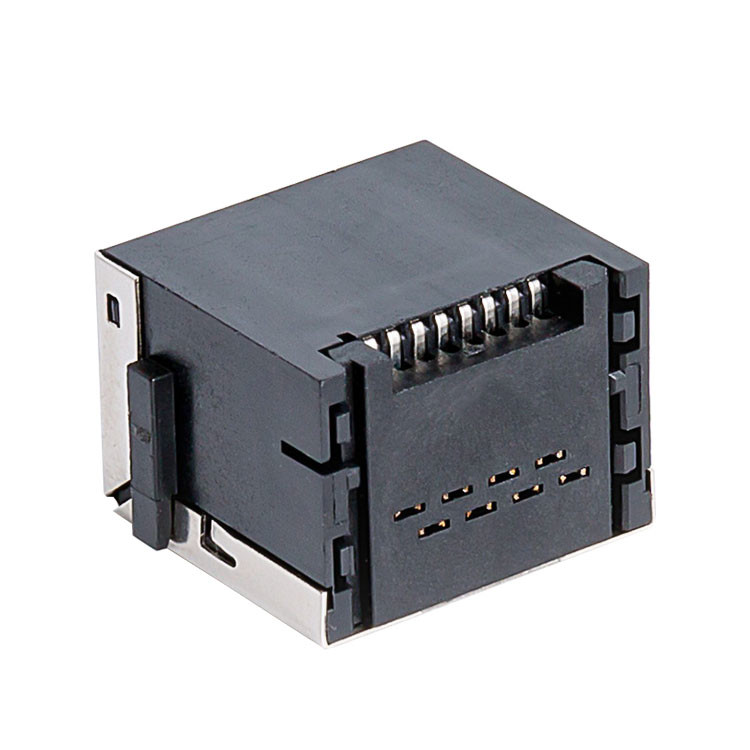

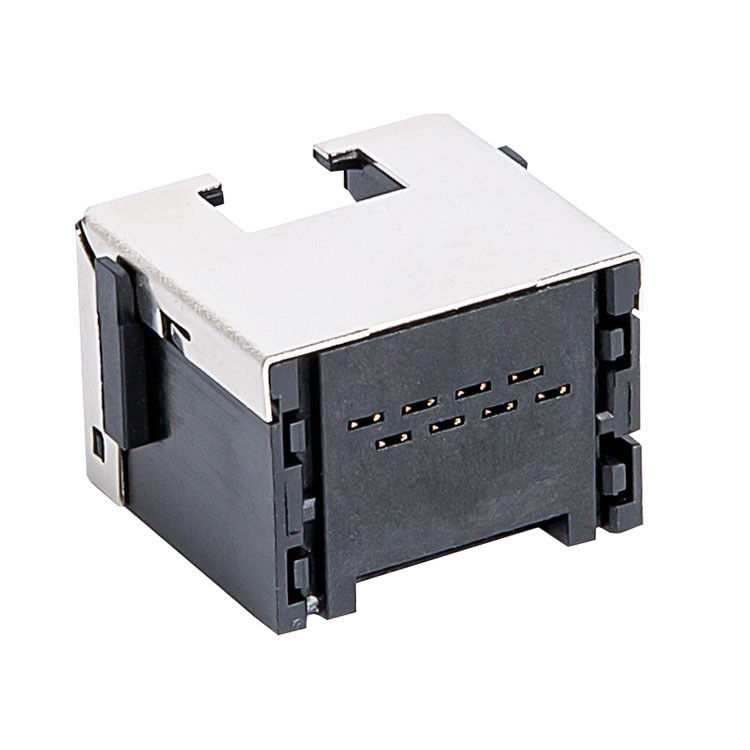

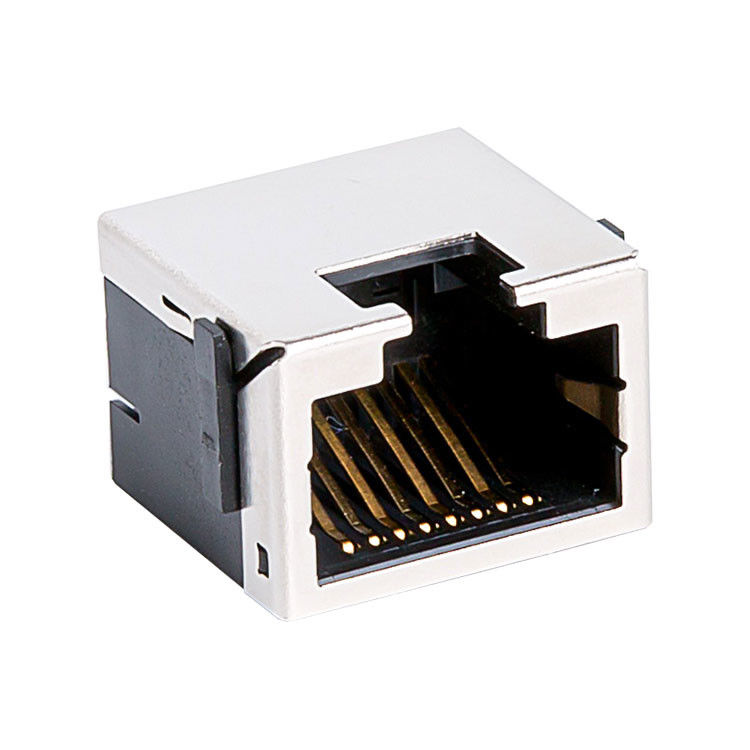

Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT
Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT
Contact Now

Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : 100pcs/tray,3000pcs/carton Delivery Time : 15 days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCPS811EB006206111000

Detail Information
CONNECTOR TYPE: BLACK LENGTH: 13.5 Mm
HOUSING MATERIAL: PA66 CONTACT MATING AREA PLATING: GOLD 6U'' PLATING
LED OPTION: N/A NUMBER OF PORTS: 1X1
NUMBER OF CONTACTS: 8 SHIELD PLATING MATERIAL: THICKNESS SUS201
SHIELD EMI TABS: NO SHIELD: YES
PCB MOUNT ANGLE: SIDE ENTRY PACKAGE: DIP
LATCH ORIENTATION: LATCH UP Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Package: 100pcs/tray,3000pcs/carton Supply Ability: 5KK/year
High Light:

rj45 8p8c jack

,

rj45 modular socket

Product Description

Copper Alloy Shield Single Port Rj45  Connector , Tab Up 8P8C SMT panel stop Rj45 Jack Without LED TMCPS811EB006206111000





Product Structure:

Wire diameter: 1.0mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TMCPS811EB006206111000) Attributes:

Model: TMCPS811EB006206111000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1200pcs
Package: 100pcs/tray,3000pcs/carton
Delivery Time: 20 Days
Supply Ability:

5KK/year



RJ45 Female Connector (TMCPS811EB006206111000) Mechnical Drawing:



Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT 0Copper Alloy Shield Rj45 Connector With Panel Stop Tab Up 8P8C SMT 1
