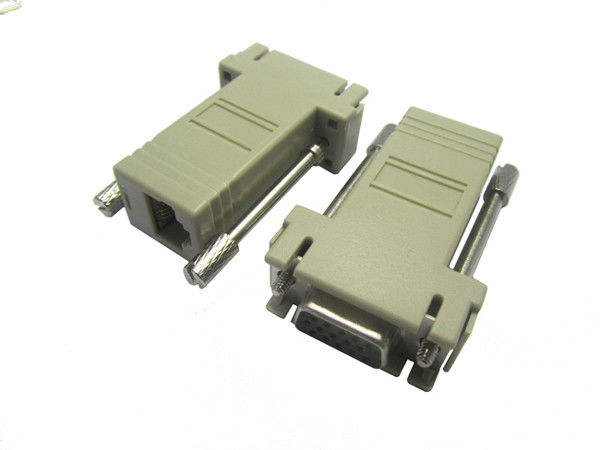

Customized D-SUB Rj45 Male To Female DB15 Adapter RS232 Male To Female Adapter RJ45-DB15F-8P4C-006
Customized D-SUB Rj45 Male To Female DB15 Adapter RS232 Male To Female Adapter RJ45-DB15F-8P4C-006
Contact Now

Customized D-SUB Rj45 Male To Female DB15 Adapter RS232 Male To Female Adapter RJ45-DB15F-8P4C-006

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 10pcs/bag Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: RJ45-DB15F-8P4C-006

Detail Information
Durrability: 750 CYCLES MIN Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 4
LED Option: NO Shielded EMI Tabs: NO
Cable Color: Black Minimal Order: 100pcs
High Light:

female ethernet adapter

,

ethernet female adapter

,

RJ45 Male To Female DB15 Adapter

Product Description

Customized D-SUB RJ45 Male to DB15 Female Modular Adapter rs232 male to female adapter RJ45-DB15F-8P4C-006



Materials:

CONNECTOR :


Housing:ABS,BEIGE,UL94V-0
Contact material:OD=0.46mm gold plating with over nickel( RoHS )
Gold plating:3u” Optional
Shielding Shell: ABS,BEIGE,UL94V-0
Wire:1061# 26awg L=75mm
DB15F: PBT Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:


RJ45 Modular Jack
One to one Port
Connector Length: 49.5 mm
Connector Width: 33 mm
Connector Height: 16 mm
8P4C ( 8 positions 4 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (RJ45-DB15F-8P4C-006) Attributes:

Model: RJ45-DB15F-8P4C-006
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 1pcs/bag
Delivery Time: 20 Days
Supply Ability: 500K/year



RJ45 Female Connector ( RJ45-DB15F-8P4C-006) Mechnical Drawing:

Customized D-SUB Rj45 Male To Female DB15 Adapter RS232 Male To Female Adapter RJ45-DB15F-8P4C-006 0

Customized D-SUB Rj45 Male To Female DB15 Adapter RS232 Male To Female Adapter RJ45-DB15F-8P4C-006 1
