Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 1/500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 50pcs/tray,500pcs/case | Delivery Time : | 20 Days |
| Payment Terms : | T/T, Western Union,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMZT281XSXX44 |
|
Detail Information |
|||
| Voltage Rating: | 125 V | Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN |
|---|---|---|---|
| Jack Type: | RJ45 | Number Of Positions: | 8 |
| Terminals Per Port: | 8 | LED Option: | No |
| Shielded EMI Tabs: | No | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Insulation Resistance: | 500 MΩ MIN @ 500V DC |
| Durrability: | 750 CYCLES MIN | Minimal Order: | 1pcs |
| Manner Of Packing: | 50pcs/tray,500pcs/case | ||
| Highlight: | 8P8C Unshielded RJ45 Cable Coupler,125V RJ45 Modular Coupler,8P8C Unshielded RJ45 Modular Coupler |
||
Product Description

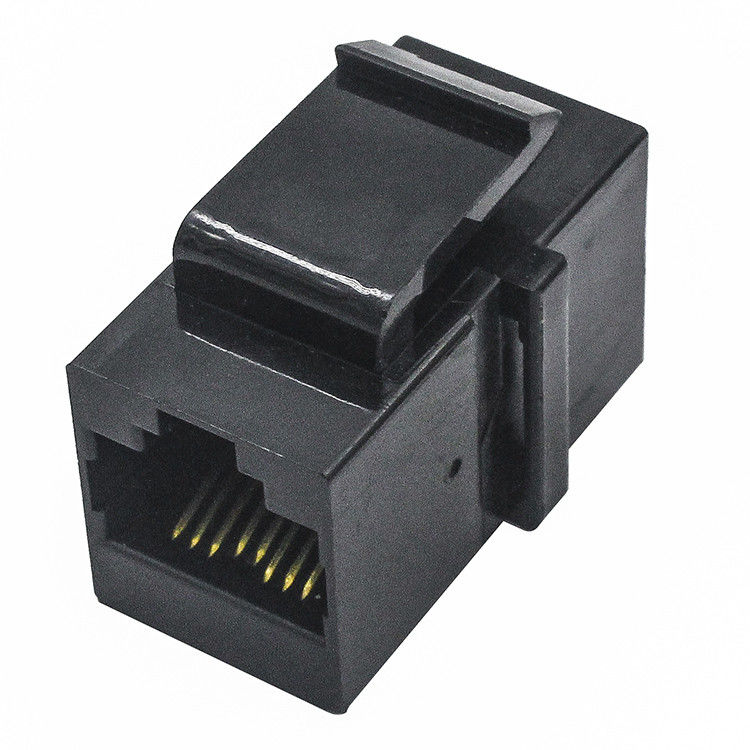

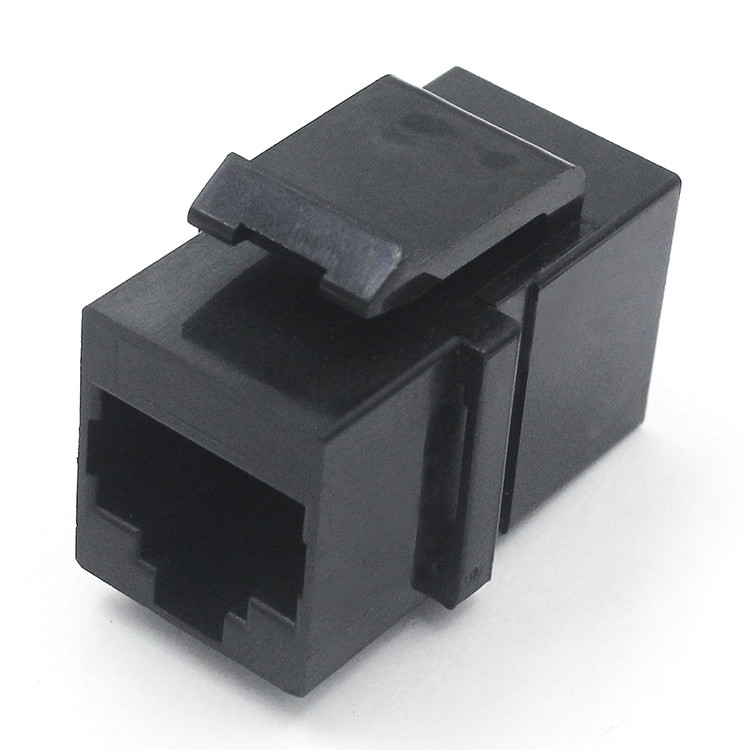

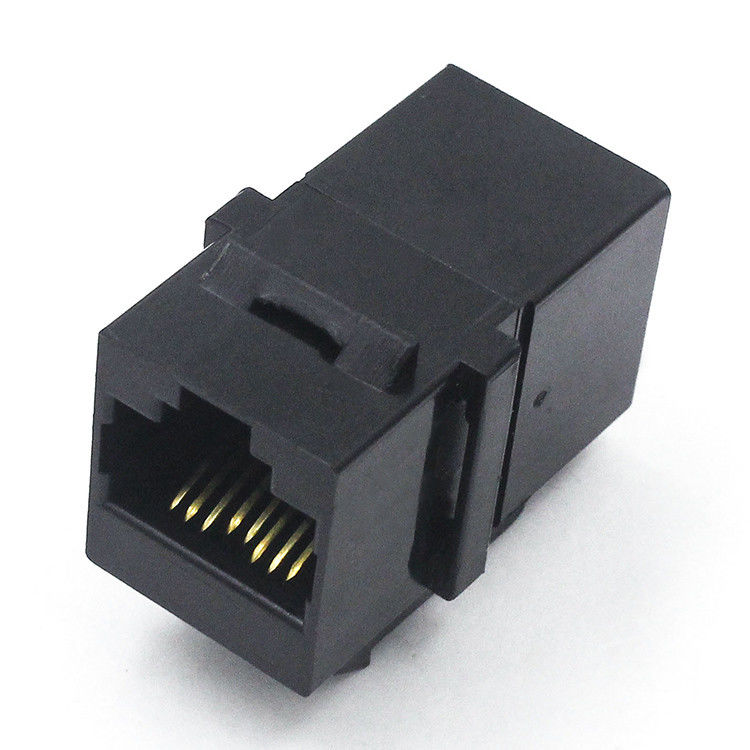

8P8C Unshielded RJ45 Cable Coupler Modular Coupler Female To Female
Unshielded Rj45 Coupler Female TO Female Clip On Straight Extension Without Keystone Panel TMZT281XSXX44
RJ45 Without Transformer (TMZT281XSXX44) Attributes:
| Model: | TMZT281XSXX44 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | 50pcs/tray,500pcs/case |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TMZT281XSXX44) Mechnical Drawing:
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Length: 27.6 mm
RJ45 Connector Width: 14.4 mm
RJ45 Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
