Female To Female RJ45 Modular Connector With 3mm Screw Hole
Female To Female RJ45 Modular Connector With 3mm Screw Hole Female To Female RJ45 Modular Connector With 3mm Screw Hole Female To Female RJ45 Modular Connector With 3mm Screw Hole Female To Female RJ45 Modular Connector With 3mm Screw Hole
Contact Now

Female To Female RJ45 Modular Connector With 3mm Screw Hole

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020021

Detail Information
Product Type : RJ45 Modular Keystone Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

Female RJ45 Modular Connector

,

3mm Screw Hole RJ45 Modular Connector

,

ISO9001 RJ45 Female Adapter

Product Description

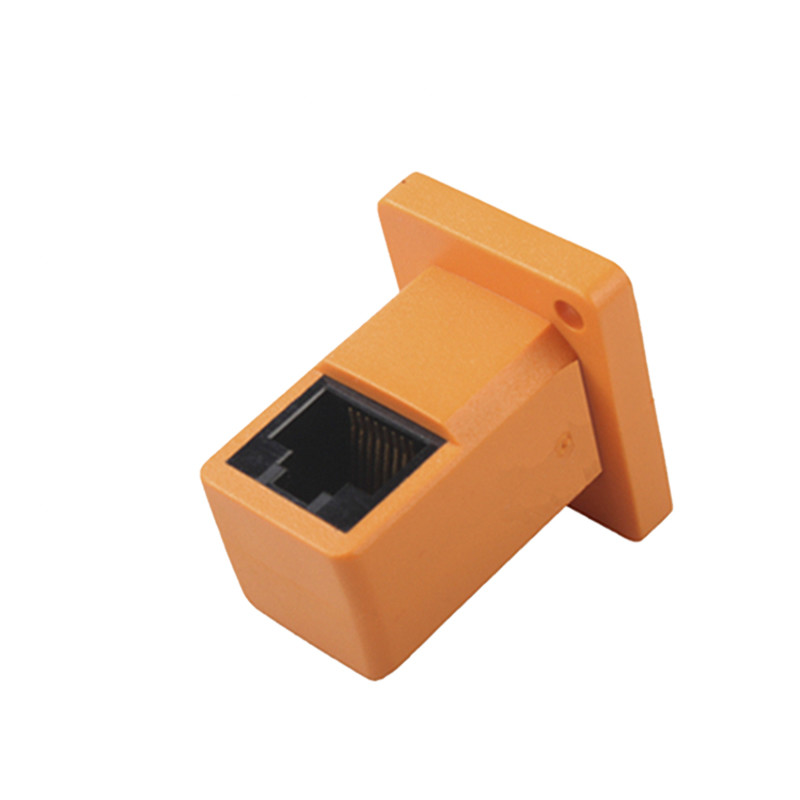

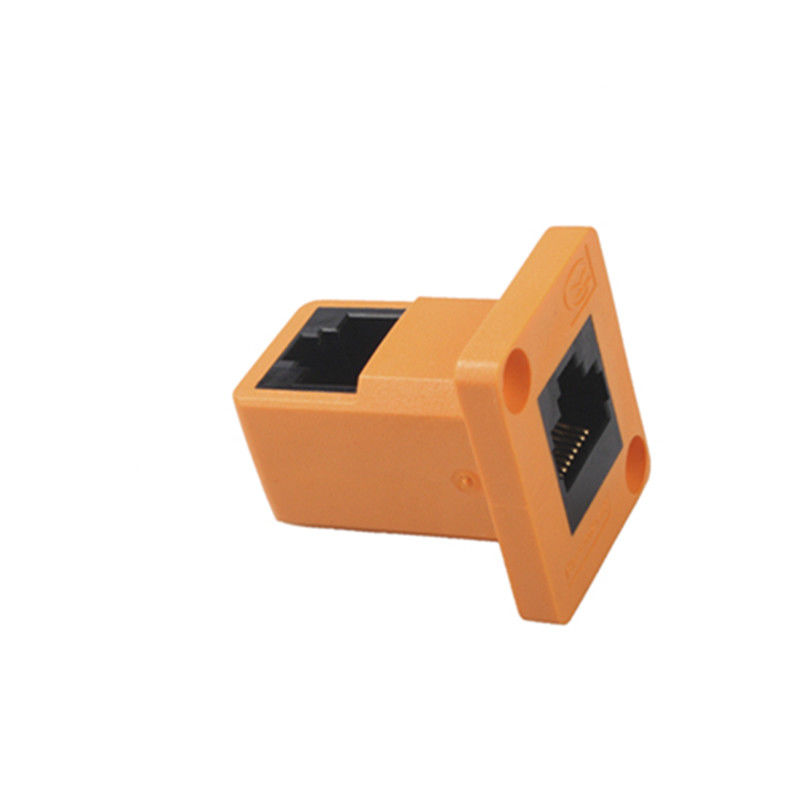

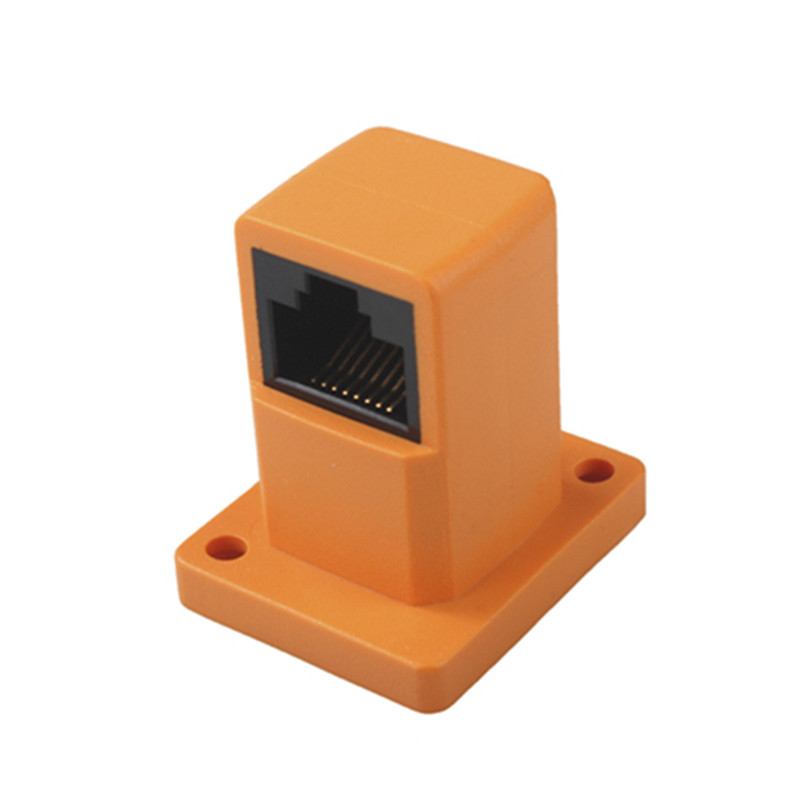

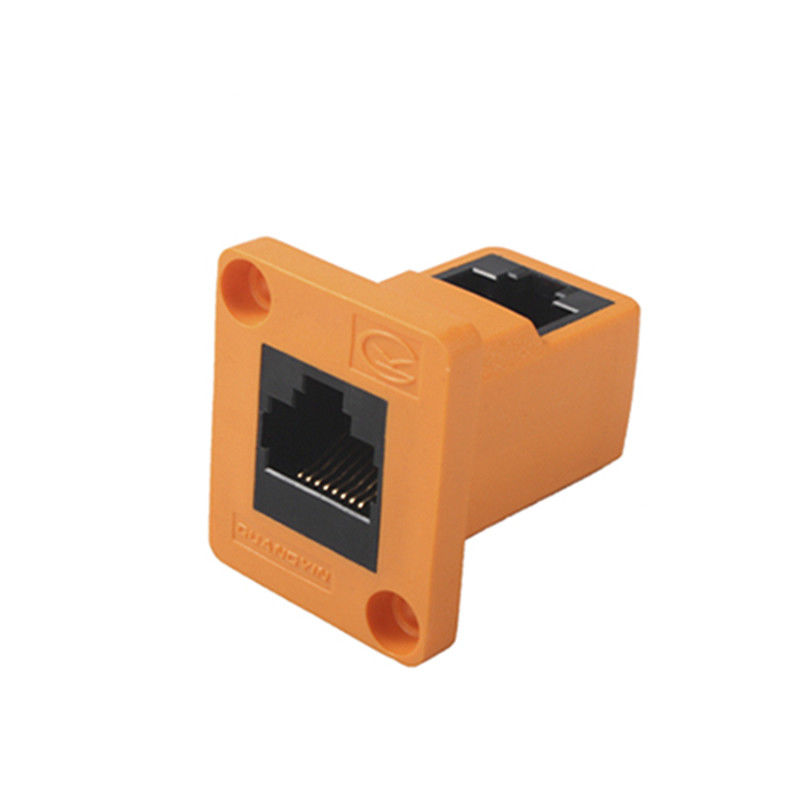

Network Modular RJ45 Connector Orange Color Cover Female to Female With 3mm Screw Hole 90° Angle



Model: TMZJT020021
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Keystone Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

Network Modular RJ45 Connector





Cat6 RJ45 Coupler Network Modular Drawing:



Female To Female RJ45 Modular Connector With 3mm Screw Hole 1
