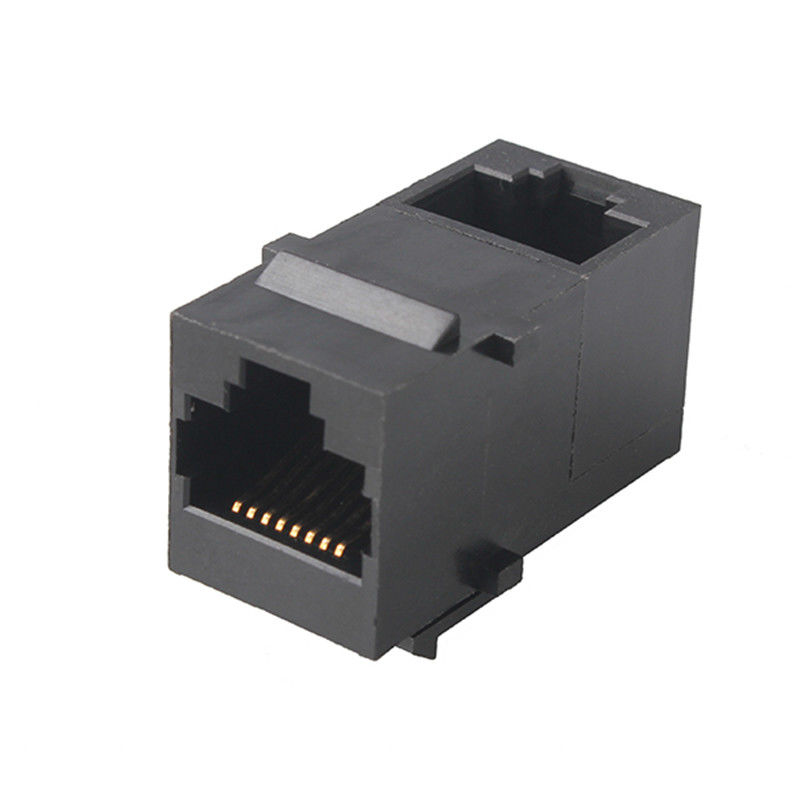

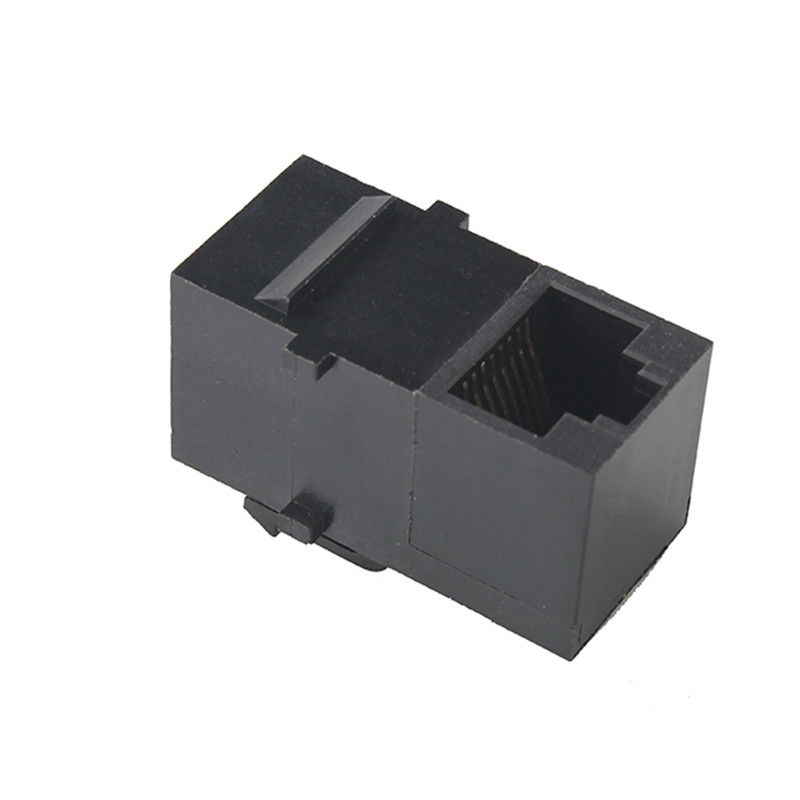

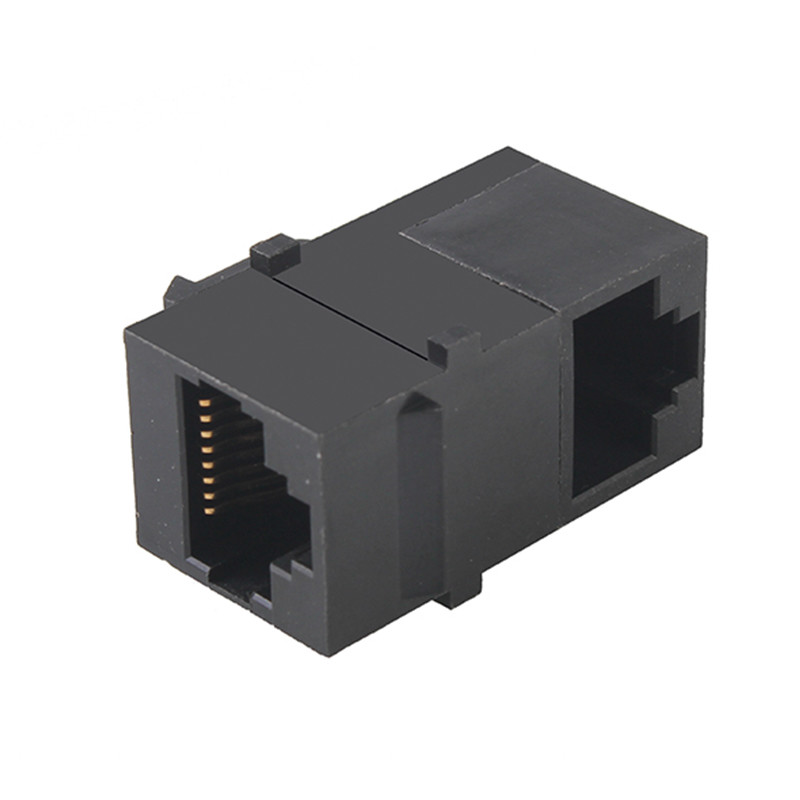

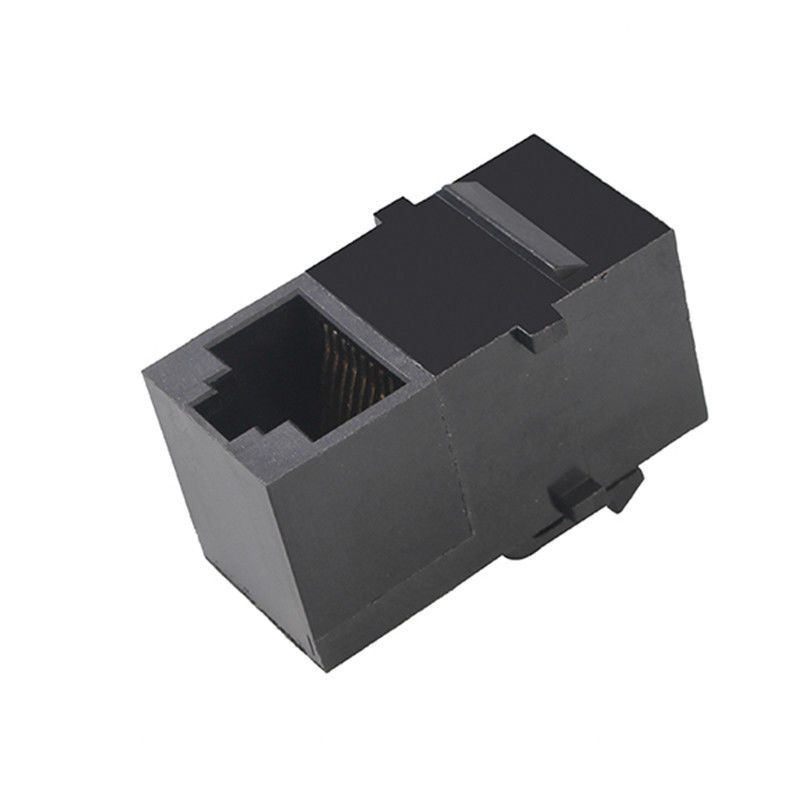

8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack
8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack 8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack 8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack 8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack
Contact Now

8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT8811SK004201111000

Detail Information
Product Type : RJ45 Modular Keystone Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

RJ45 Keystone Modular Jack

,

90° Keystone Modular Jack

,

8P8C Female To Female RJ45 Adapter

Product Description



Network Modular RJ45 Adapter Keystone Female to Female 90° Angle



Model: TMZT8811SK004201111000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Keystone Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



Network Modular RJ45 Adapter Female to Female 90° Angle



Cat6 RJ45 Coupler Network Modular Drawing:



8P8C Female To Female 90° Angle RJ45 Keystone Modular Jack 1
