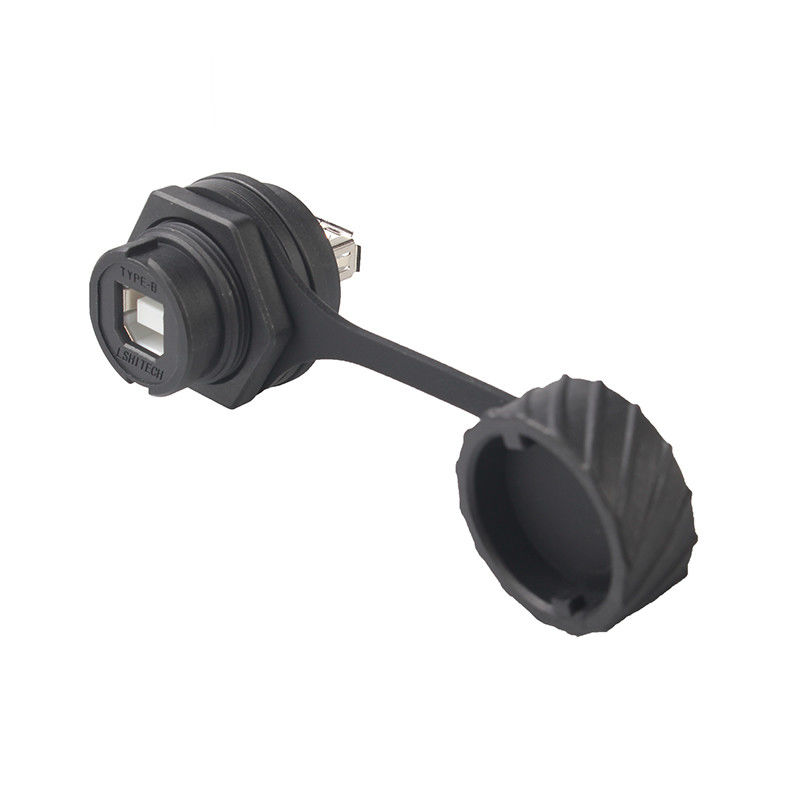

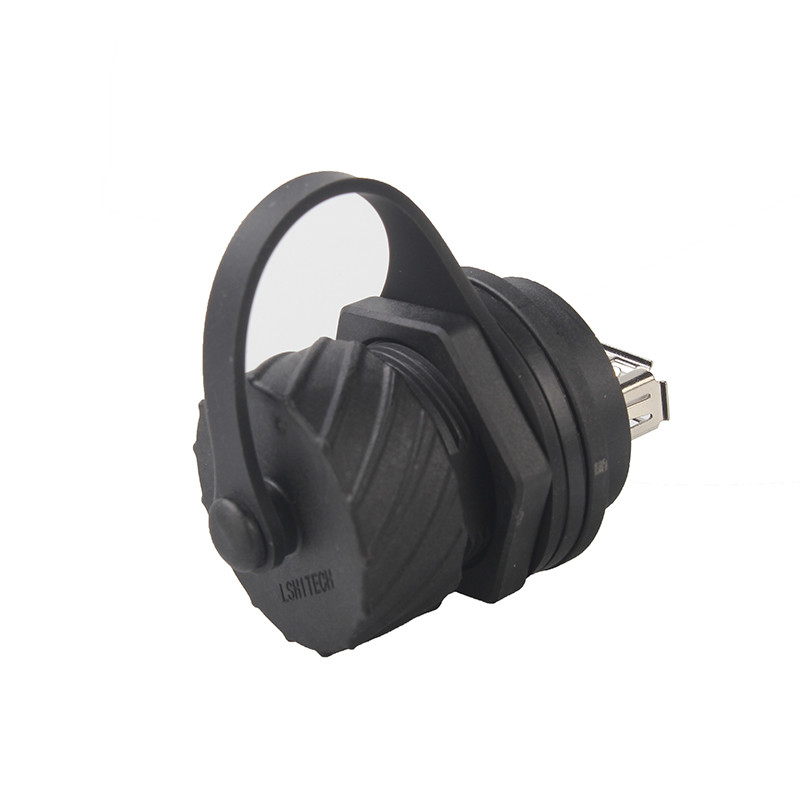

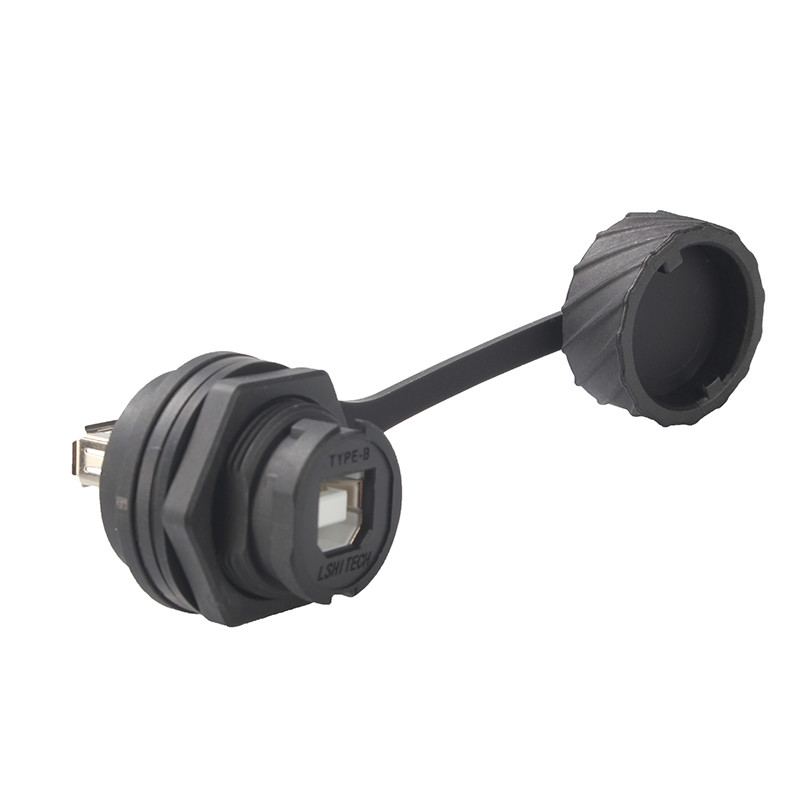

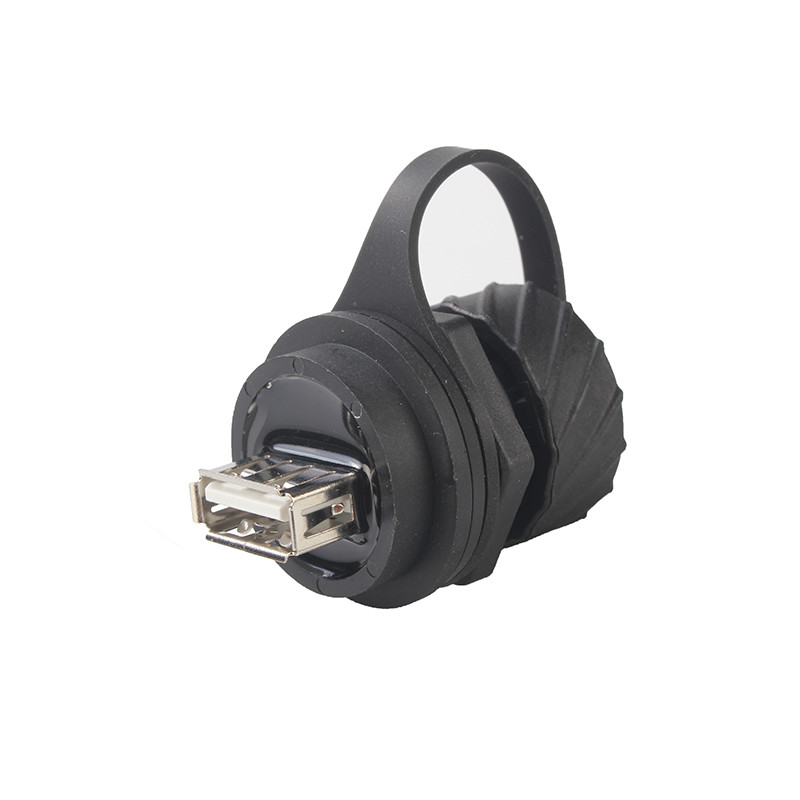

Female To Female USB BF TO USB 2.0 AF Waterproof Coupler
Female To Female USB BF TO USB 2.0 AF Waterproof Coupler Female To Female USB BF TO USB 2.0 AF Waterproof Coupler Female To Female USB BF TO USB 2.0 AF Waterproof Coupler Female To Female USB BF TO USB 2.0 AF Waterproof Coupler
Contact Now

Female To Female USB BF TO USB 2.0 AF Waterproof Coupler

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020061

Detail Information
Product Type : USB-BF TO USB 2.0 AF Coupler Jack Type: USB-BF/ USB 2.0 AF
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

USB BF TO USB 2.0 AF Coupler

,

125V AC Waterproof Coupler

,

125V AC Waterproof Adapter

Product Description



USB-BF TO USB 2.0 AF Coupler Female To Female Transfer For Printer Waterproof Dustproof Adapter Industrial Grade



Materials:

Housing : ABS,UL94V-0 ( RoHS )

Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

USB-BF TO USB 2.0 AF Coupler

One to one Port

Connector Length: 33 mm

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required

USB-BF TO USB 2.0 AF Coupler Female To Female Transfer For Printer Waterproof Dustproof Adapter Industrial Grade

USB-BF TO USB 2.0 AF Coupler Female To Female Transfer For Printer Waterproof Dustproof Adapter Industrial Grade



USB-BF TO USB 2.0 AF Coupler (TMZJT020061) Attributes:,

Model: TMZJT020061
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB-BF TO USB 2.0 AF Coupler
Jack Type: USB-BF/ USB 2.0 AF
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 1000 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



USB-BF TO USB 2.0 AF Coupler (TMZJT020061) Mechnical Drawing:

Female To Female USB BF TO USB 2.0 AF Waterproof Coupler 2Female To Female USB BF TO USB 2.0 AF Waterproof Coupler 3
