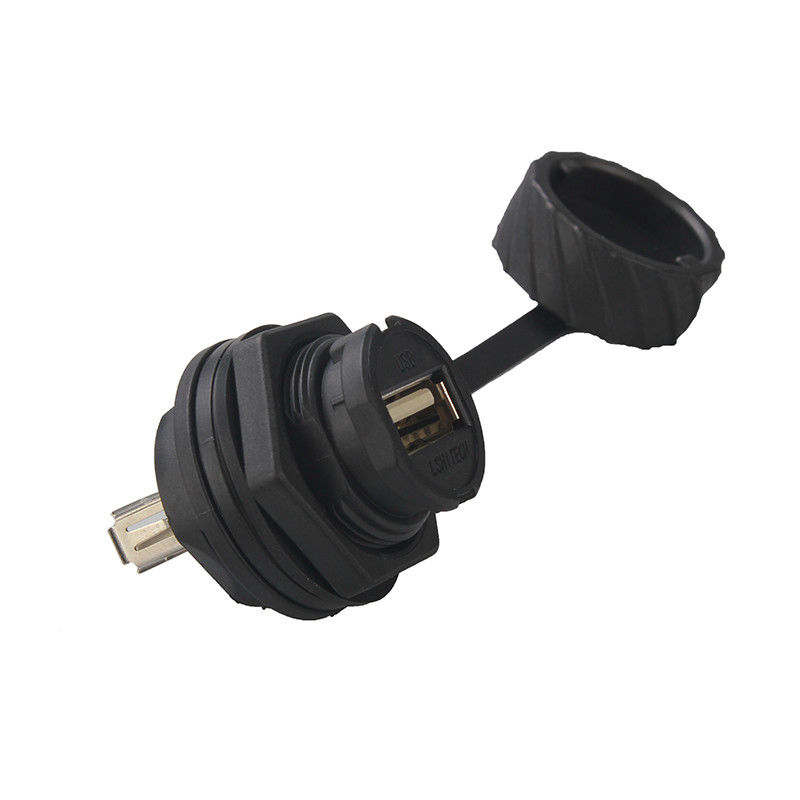

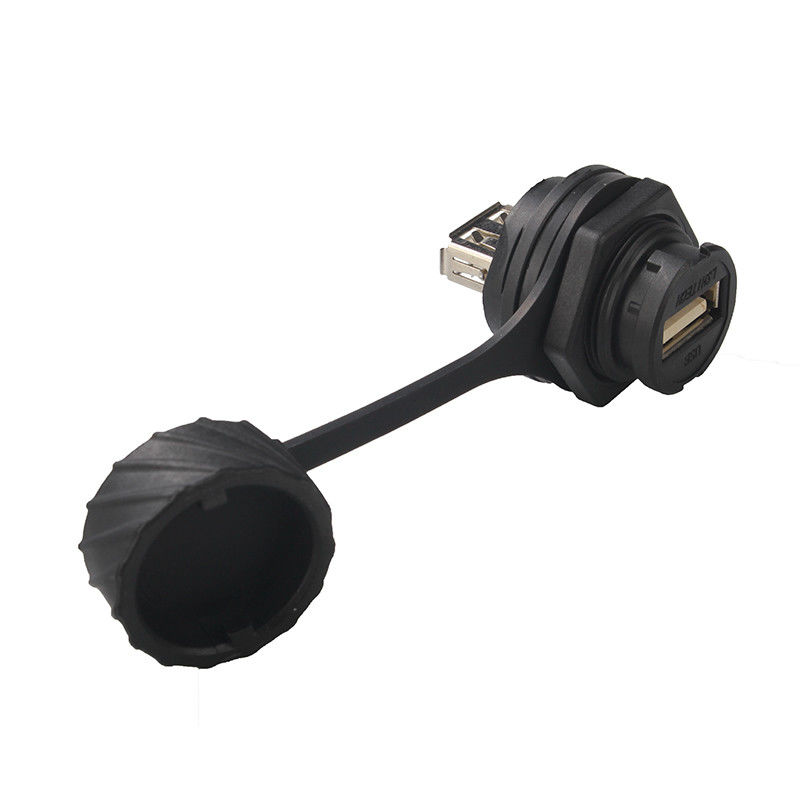

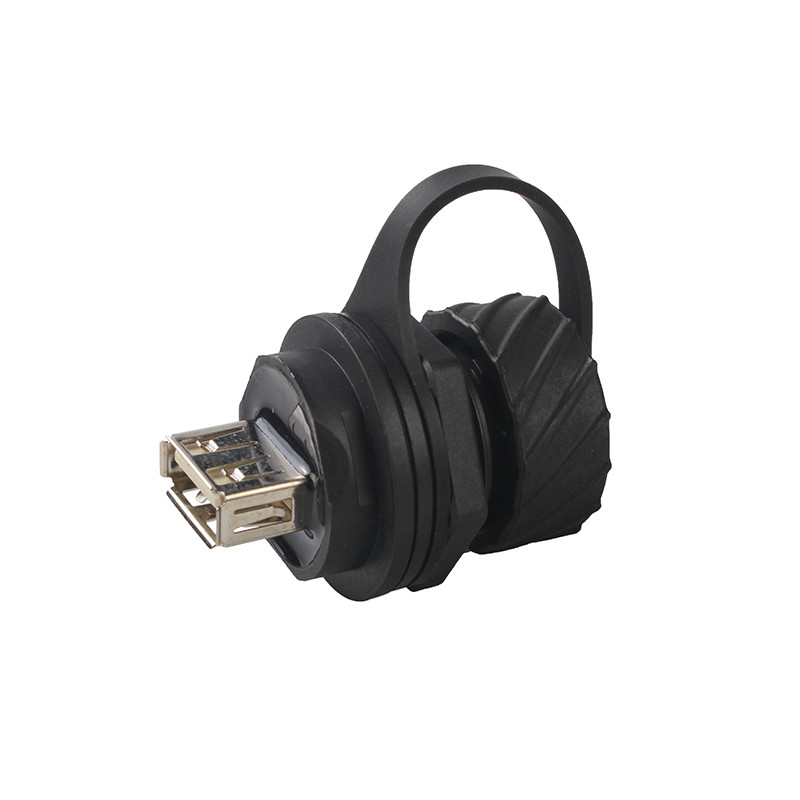

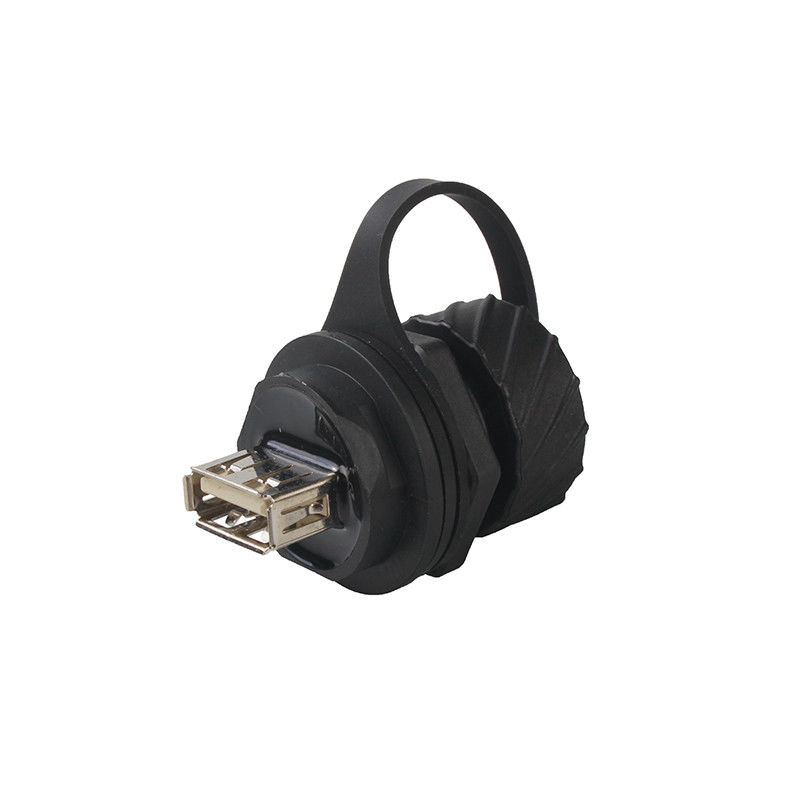

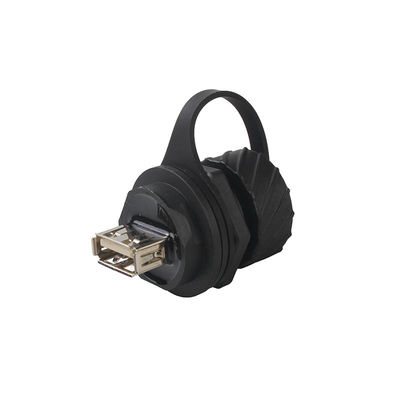

UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler
UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler
Contact Now

UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020062

Detail Information
Product Type : USB 2.0 AF Adapter Jack Type: USB 2.0 AF
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

USB 2.0 AF Female To Female Coupler

,

UL94V-0 Female To Female Coupler

,

UL94V-0 Female Adapter

Product Description



USB 2.0 AF TO USB 2.0 AF Adapter Female To Female Transfer For Usb Cable Waterproof Dustproof Coupler Industrial Grade



Materials:

Housing : ABS,UL94V-0 ( RoHS )

Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

USB 2.0 AF Adapter

One to one Port

Connector Length: 33 mm

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required



USB 2.0 AF Adapter (TMZJT020062) Attributes:,

Model: TMZJT020062
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB 2.0 AF Adapter
Jack Type: USB 2.0 AF
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 1000 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



USB 2.0 AF Adapter (TMZJT020062) Mechnical Drawing:

UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler 0UL94V-0 USB 2.0 AF TO USB 2.0 AF Female To Female Coupler 1
