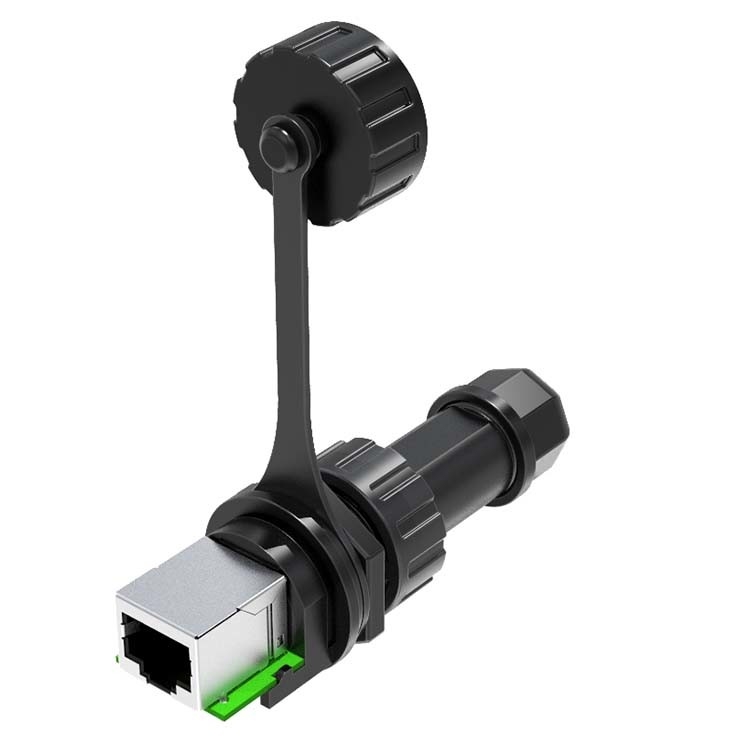

Waterproof Rj45 Modular Jack Female To Female 40m Ohm Industrial
Waterproof Rj45 Modular Jack Female To Female 40m Ohm Industrial
Contact Now

Waterproof Rj45 Modular Jack Female To Female 40m Ohm Industrial

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMPMWRJ0001

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 40m Ohm Durrability: 750 CYCLES MIN
High Light:

Waterproof Rj45 Modular Jack

,

Female To Female Rj45 Modular Jack

,

Industrial Rj45 Modular Connector

Product Description

RJ45 Network Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For Cable Extension

Drawing data sheet Download









Types of RJ45 Couplers

Ethernet couplers can be divided into different types according to their different characteristics and applications. In general, they can be classified into unshielded or shielded Ethernet couplers, indoor or outdoor RJ45 couplers, and inline Ethernet couplers or keystone couplers.


RJ45 Network Adapter Female (TMPMWRJ0001) Attributes:

Model: TMPMWRJ0001
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 40mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Network Adapter Female (TMPMWRJ0001) Mechnical Drawing:



Waterproof Rj45 Modular Jack Female To Female 40m Ohm Industrial 0



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min




Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 43.20 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
