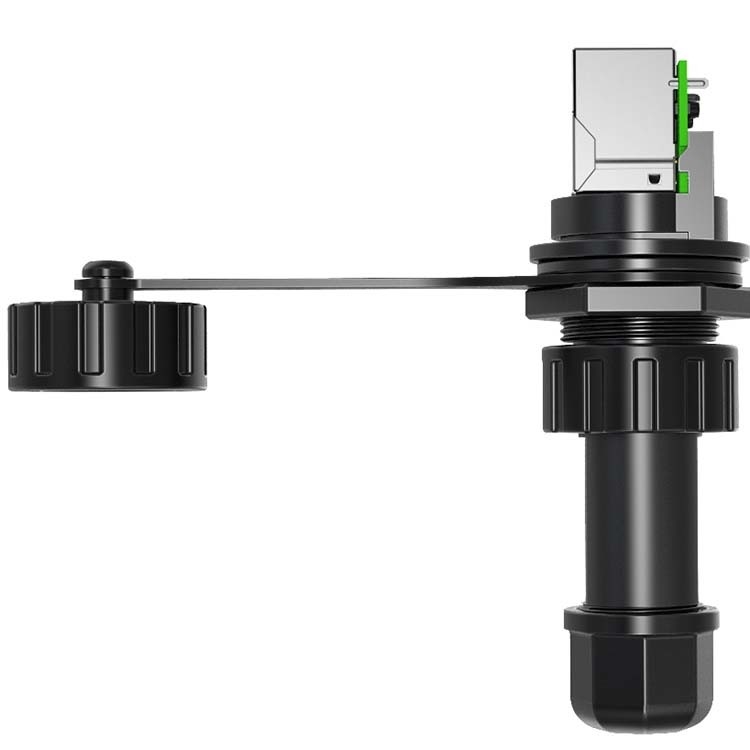

Dustproof Ethernet Female Adapter 8p8c Type 750 Cycle Min Life

Product Description

RJ45 Network Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For Cable Extension

Drawing data sheet Download

RJ45 couplers are used for Ethernet LAN networks. They can extend a network cable so it will reach a computer or other device, or can be used through a Keystone module to allow you to easily plug any computer into a network jack. It’s important, though, to select the proper inline coupler to match network wiring. For example, not all Cat6a cables will deliver optimal signal quality when connected through a Cat5e coupler; it’s best to purchase a Cat6a coupler in that case. Smaller RJ11/RJ12 inline couplers are primarily used with phone cables to connect telephones or fax machines, or those facilitating VOIP communication via devices like cable modems. Once again, you can find simple inline couplers or Keystone module couplers that take RJ11/RJ12 plugs.

RJ45 Network Adapter Female (TMPMWRJ0001) Attributes:

RJ45 Network Adapter Female (TMPMWRJ0001) Mechnical Drawing:

Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min

Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 43.20 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
