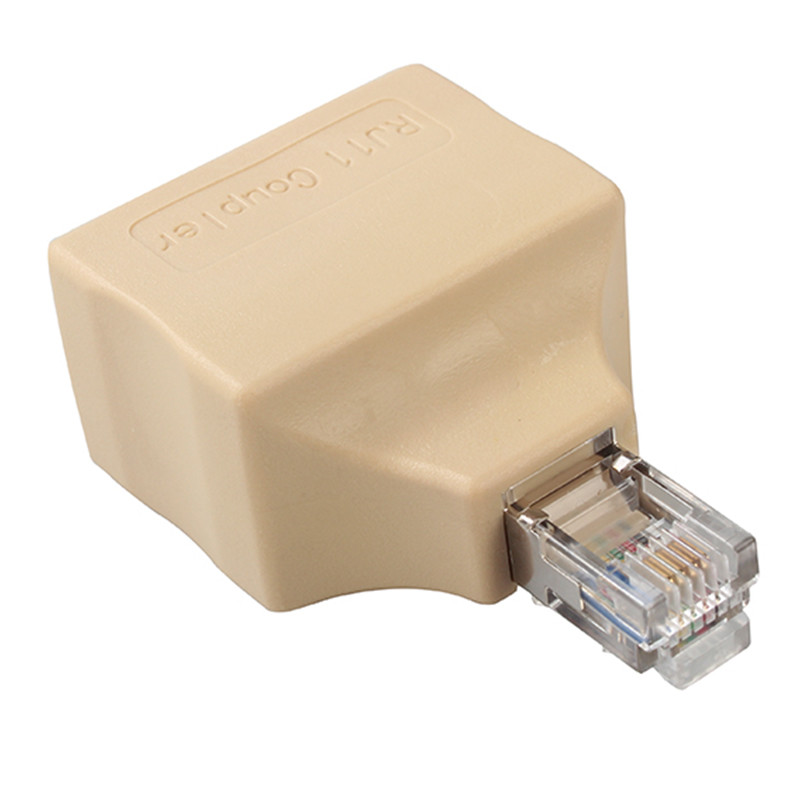

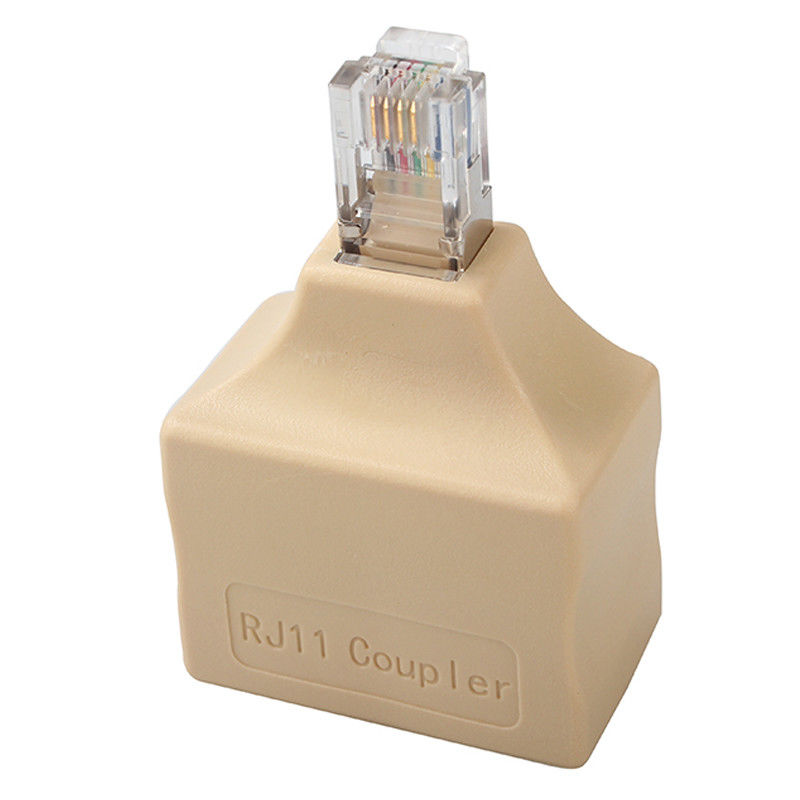

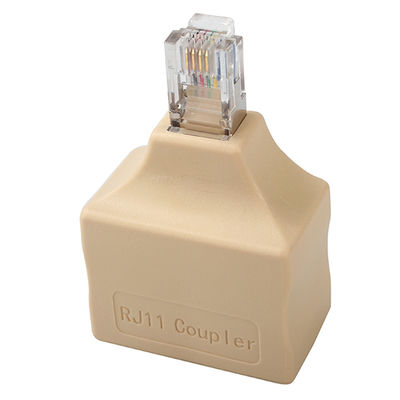

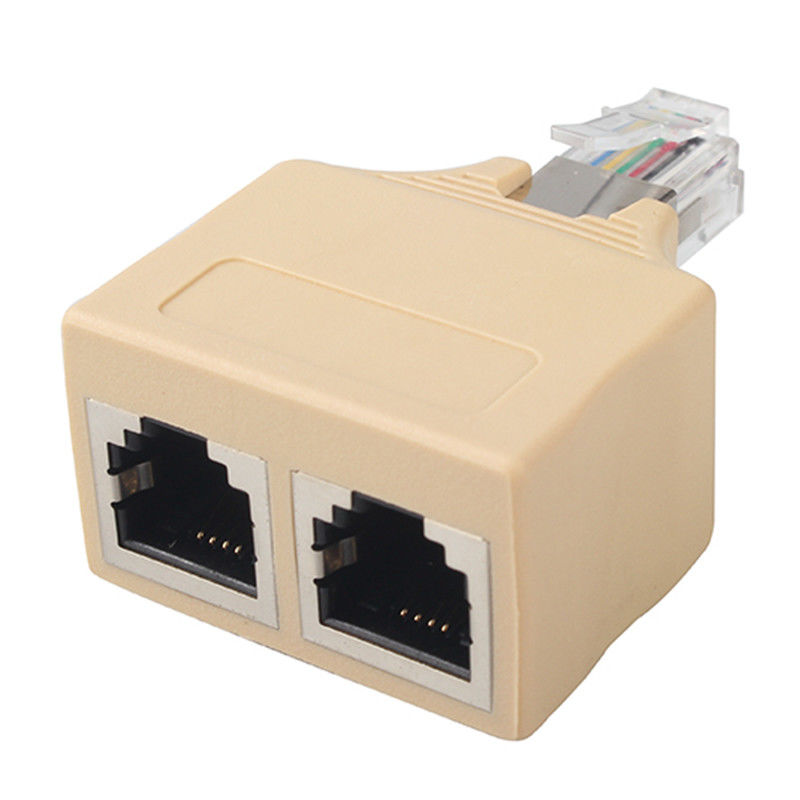

Male To Female RJ11 Telephone Adapter Hub Splitter With Shield
Male To Female RJ11 Telephone Adapter Hub Splitter With Shield Male To Female RJ11 Telephone Adapter Hub Splitter With Shield Male To Female RJ11 Telephone Adapter Hub Splitter With Shield
Contact Now

Male To Female RJ11 Telephone Adapter Hub Splitter With Shield

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMNJ2512SX00210CA41000

Detail Information
Jack Type: RJ11 Prouduct Type: Telephone Adapter/ Hub/ Splitter
Number Of Positions: 6 Terminals Per Port: 6
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

RJ11 Telephone Adapter

,

125V Telephone Adapter

,

1.5A RJ11 Telephone Adapter

Product Description

Male To Female RJ11 Telephone Adapter Hub Splitter With Shield



RJ11 Male To Female Telephone Adapter/ Hub/ Splitter With Shield



RJ11 Telephone Adapter (TMNJ2512SX00210CA41000) Materials:
CONNECTOR :
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating over nickel( RoHS )
Gold plating:1.5u” Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all( RoHS )
PCB: FR4 UL94V-0 ( RoHS )
Plug:6P6C Shield shell,PC
Shell: PVC Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.


RJ11 Telephone Adapter (TMNJ2512SX00210CA41000) Product Structure:

RJ11 Telephone Adapter
RJ11 Connector Length: 48.5 mm
RJ11 Connector Width: 32.5 mm
RJ11 Connector Height: 20 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ11 Telephone Adapter (TMNJ2512SX00210CA41000) Attributes:



Model: TMNJ2512SX00210CA41000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 1pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union, ,Paypal
Supply Ability: 500K/year



RJ11 Telephone Adapter (TMNJ2512SX00210CA41000) Mechnical Drawing:



Male To Female RJ11 Telephone Adapter Hub Splitter With Shield 0
