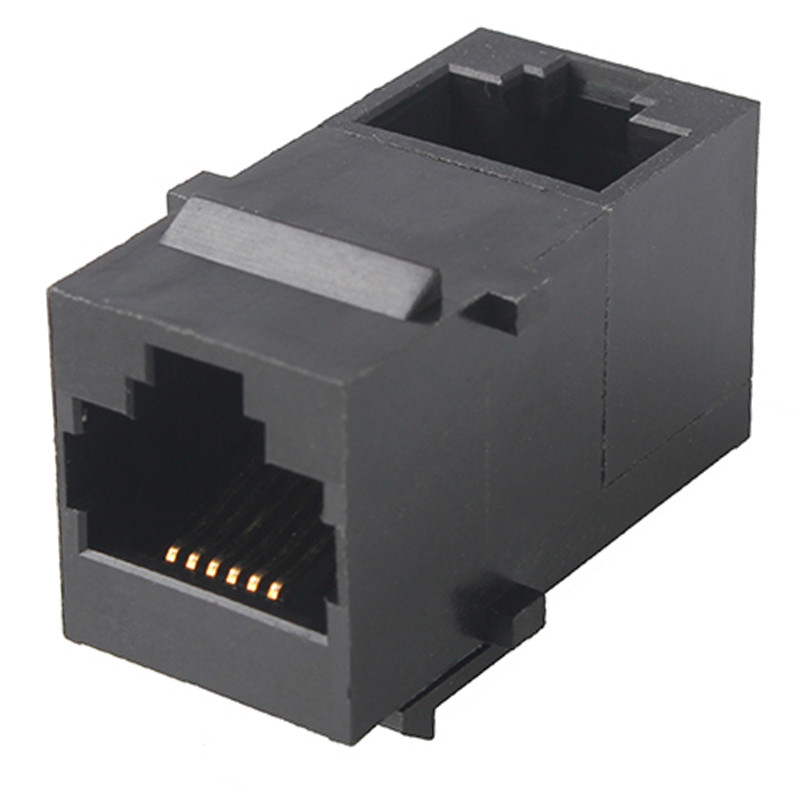

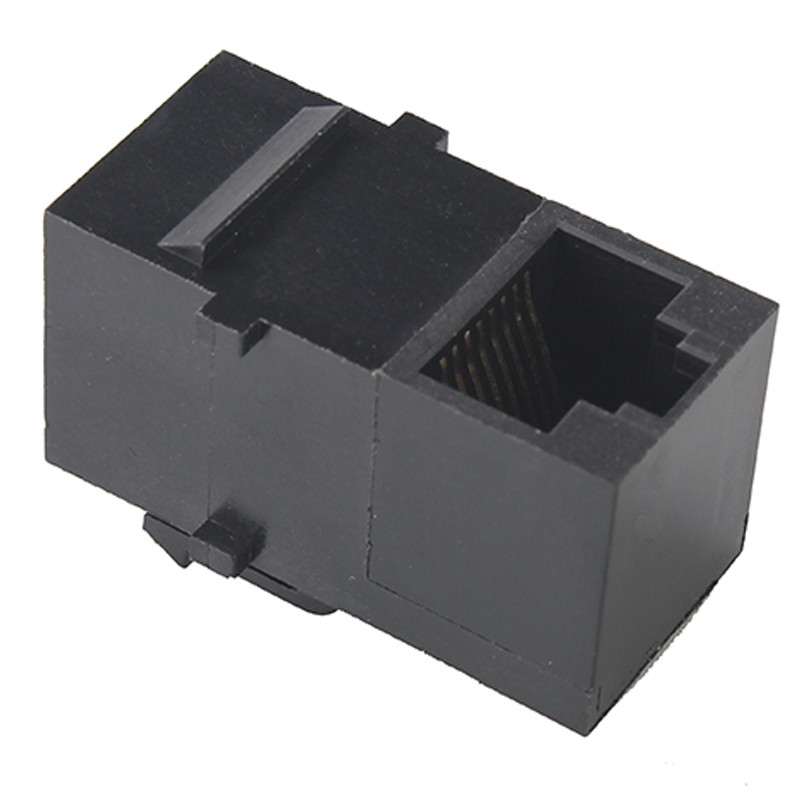

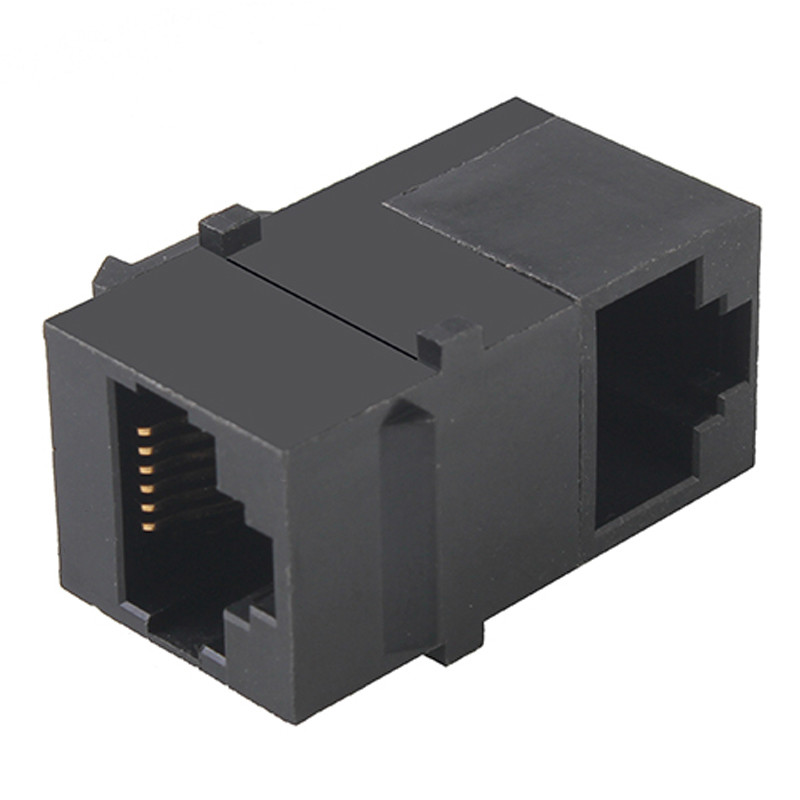

RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension
RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension
Contact Now

RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case 20 Days Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT8511SK001107A41013

Detail Information
Jack Type: RJ11 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Cat3e RJ11 Inline Coupler

,

6p6c RJ11 Modular Connector

,

Cat3e RJ11 Modular Connector

Product Description

RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension



RoHS Cat3e 6p6c RJ11 Modular Adapter 90 Degree Straight Extension



UL94V-0 ( RoHS ) cat3e 6p6c 90 degree rj45 female connector straight extension adapter TMZT8511SK001107A41013



RJ45 Female Adapter Product Structure:

RJ11 Modular Jack

Connector Length: 30.3 mm

Connector Width: 14.45 mm

Connector Height: 16.05 mm

Termimal Solder Pin Length: 0 mm

6P6C ( 6 positions 6 contacts )

90°Orientation

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required



RJ45 Female Adapter (TMZT8511SK001107A41013) Attributes:

Model: TMZT8511SK001107A41013
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Adapter (TMZT8511SK001107A41013) Mechnical Drawing:



RoHS Cat3e 6p6c RJ11 Inline Coupler 90 Degree Straight Extension 0
