6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer

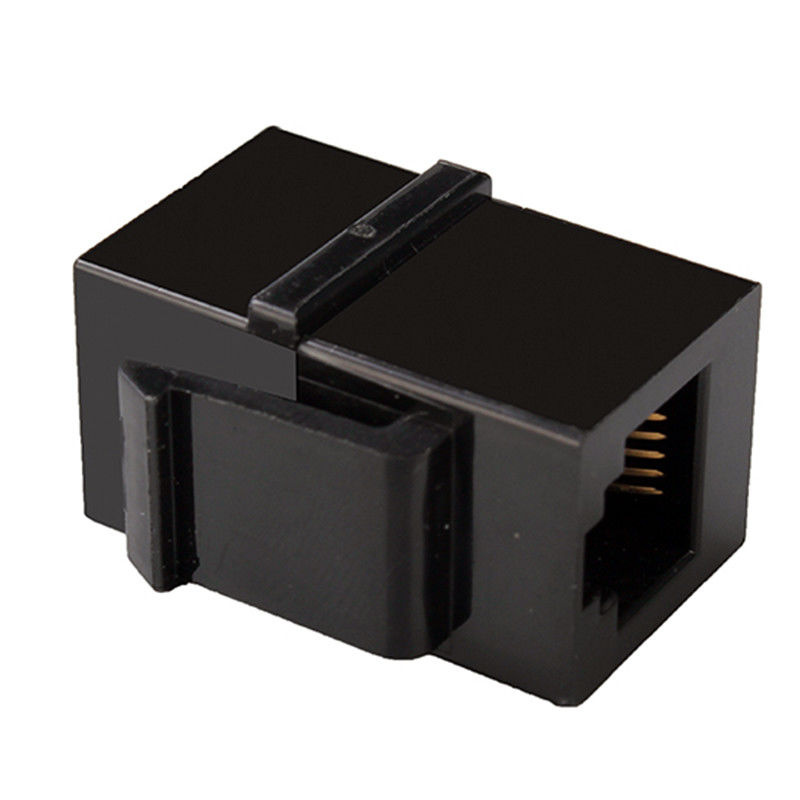

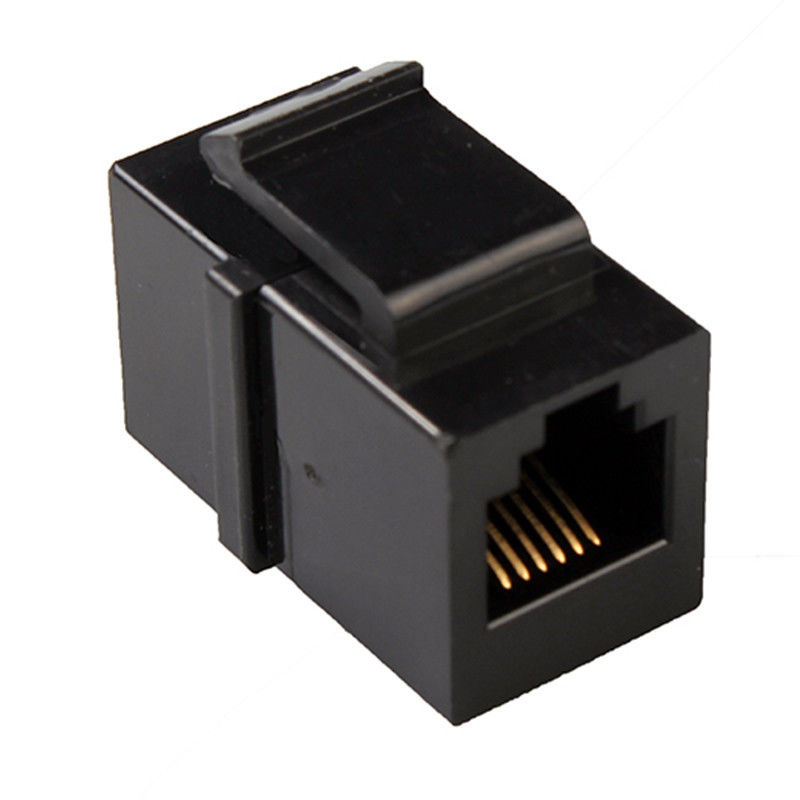

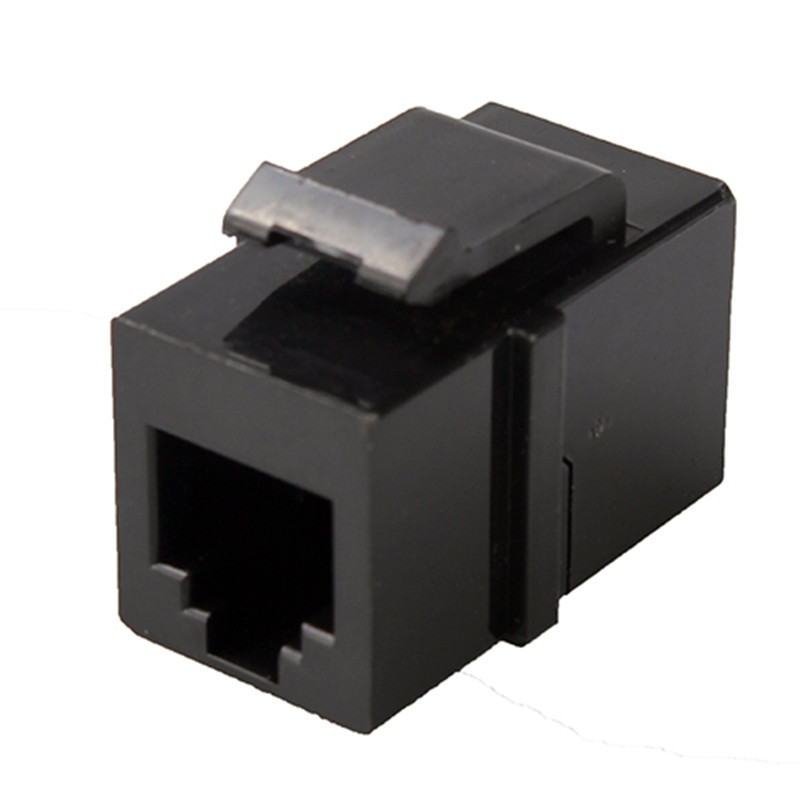

6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer 6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer 6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer
Contact Now

6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3511SK004207111010

Detail Information
Product Type: RJ11 Modular Connector Jack Type: RJ11
Terminals Per Port: 6 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

6 Contacts RJ11 Inline Coupler

,

6 Positions RJ11 Inline Coupler

,

6P6C RJ11 Modular Adapter

Product Description

6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer

6 Positions 6 Contacts RJ11 Modular Adapter Female To Female Without Transformer

180°Orientation One to one Port 6 positions 6 contacts RJ11 Modular Connector Without Transformer TMZT3511SK004207111010

RJ11 Female Connector (TMZT3511SK004207111010) Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

RJ11 Female Connector (TMZT3511SK004207111010) Product Structure:
RJ11 Modular Jack
One to one Port
Connector Length: 26.96 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ11 Without Transformer (TMZT3511SK004207111010) Attributes:,

Model:TMZT3511SK004207111010
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ11 Modular Connector
Jack Type:RJ11
Number of Positions :6
Terminals per Port:6
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year


RJ11 Female Connector (TMZT3511SK004207111010) Mechnical Drawing:

6 Positions 6 Contacts RJ11 Inline Coupler Without Transformer 06 Positions 6 Contacts RJ11 Inline Coupler Without Transformer 1
