Home ProductsRJ11 Inline CouplerRoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree

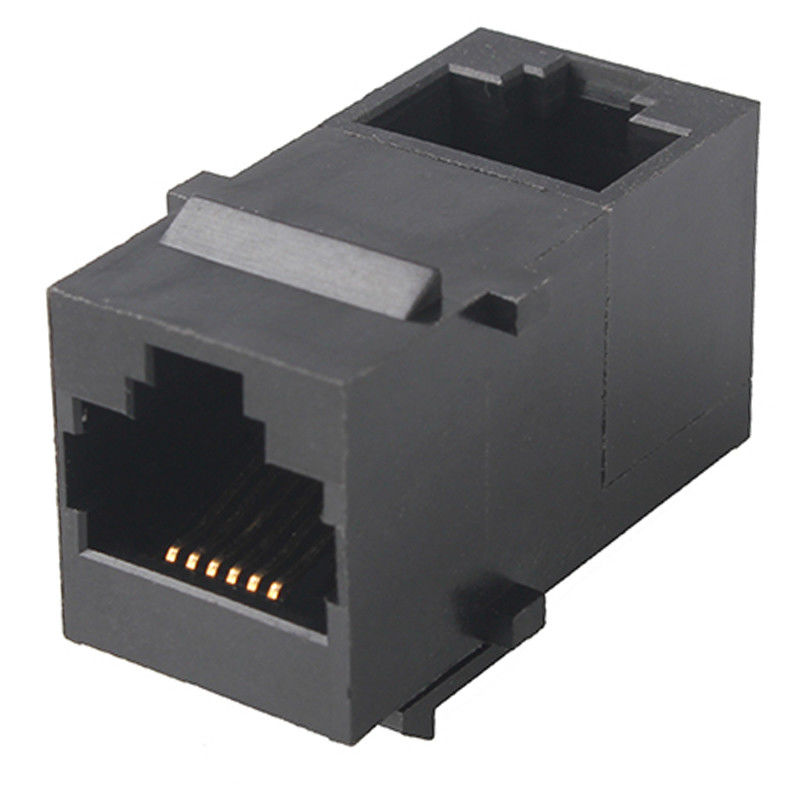

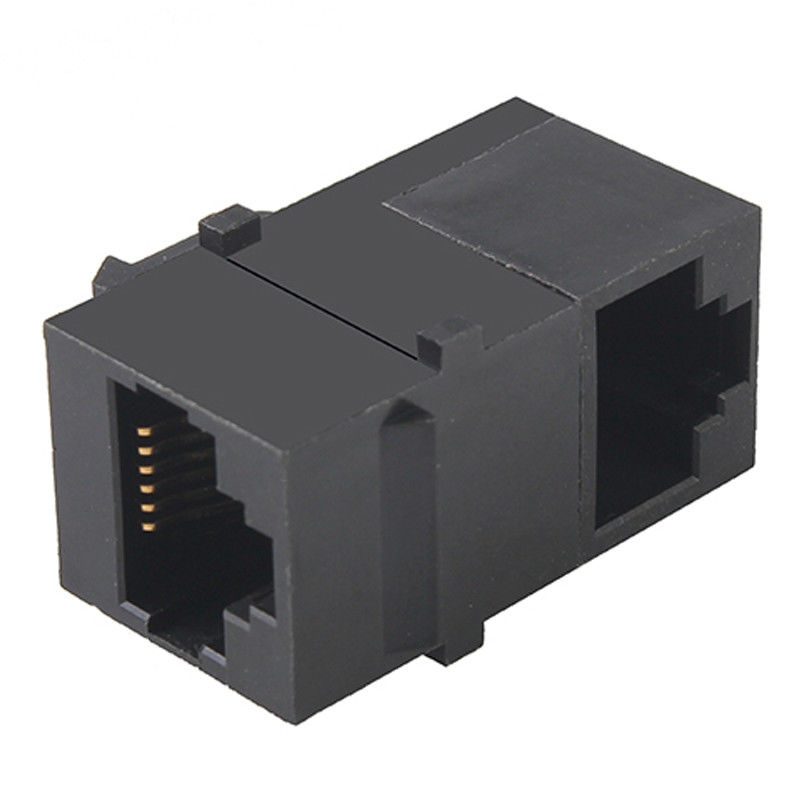

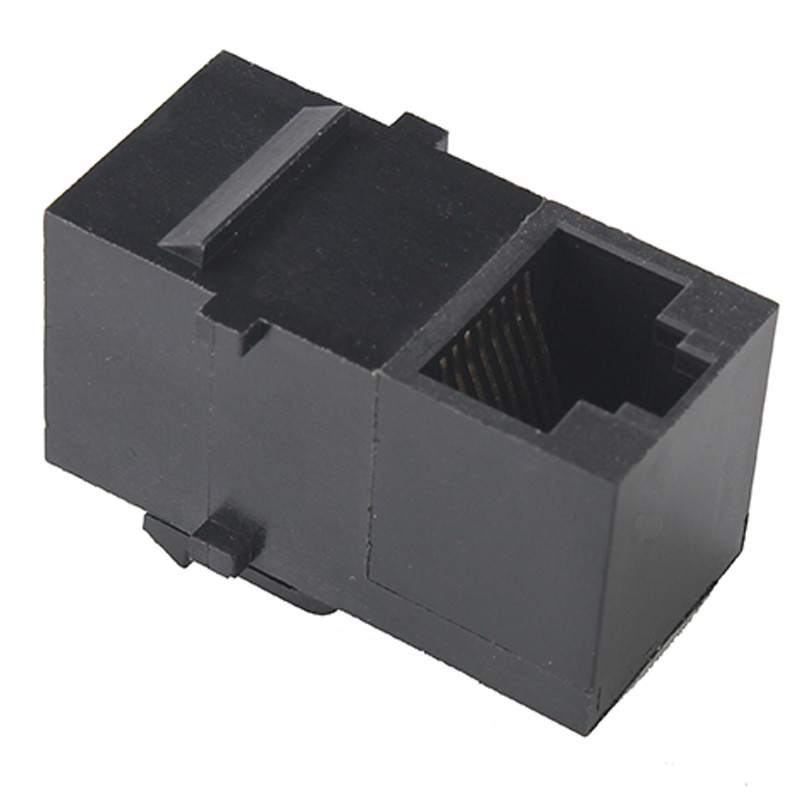

RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree
RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree
Contact Now

RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case 20 Days Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT8511SK001107A41013

Detail Information
Jack Type: RJ11 Number Of Positions: 6
LED Option: No Shielded EMI Tabs: No
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Cat3e Rj11 Female Connector

,

RoHS Rj11 Female Connector

,

Cat3e Modular Telephone Connectors

Product Description

RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree

6 Positions 6 Contacts RJ11 Modular Connector 180 ° Orientation One To One Port

UL94V-0 ( RoHS ) cat3e 6p6c 90 degree rj45 female connector straight extension adapter TMZT8511SK001107A41013

RJ45 Female Extension Adapter Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm GOLD PLATING FU" OVER NICKEL.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

RJ45 Female Extension Adapter Product Structure:
RJ11 Modular Jack
Connector Length: 30.3 mm
Connector Width: 14.45 mm
Connector Height: 16.05 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
90°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Female Extension Adapter (TMZT8511SK001107A41013) Attributes:

Model:TMZT8511SK001107A41013
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ11 Modular Connector
Jack Type:RJ11
Number of Positions :6
Terminals per Port:6
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year


RJ45 Female Extension Adapter (TMZT8511SK001107A41013) Mechnical Drawing:

RoHS Cat3e Rj11 Female Connector Straight Extension 90 Degree 0
