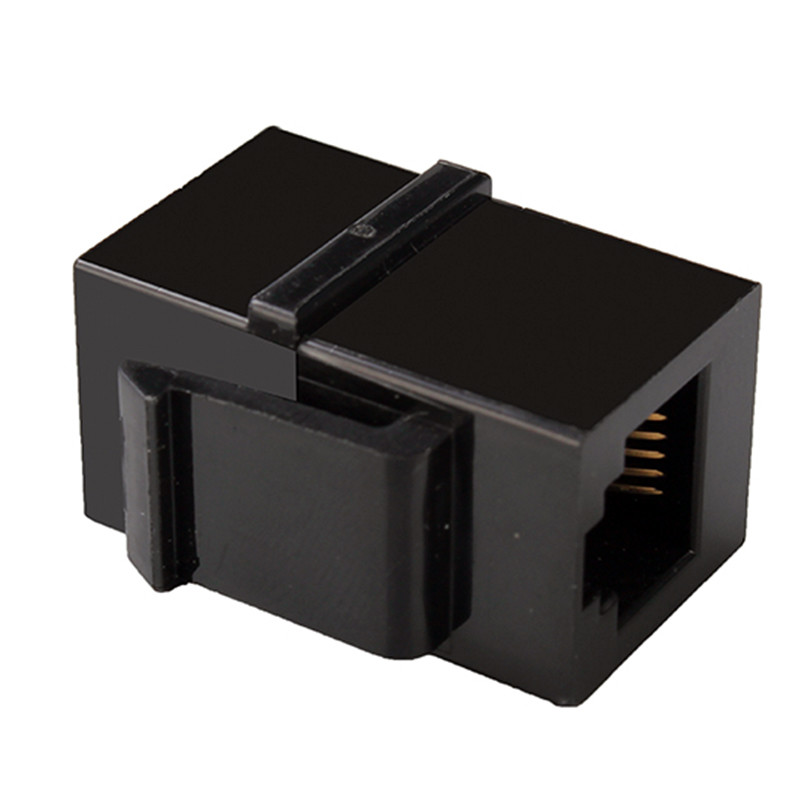

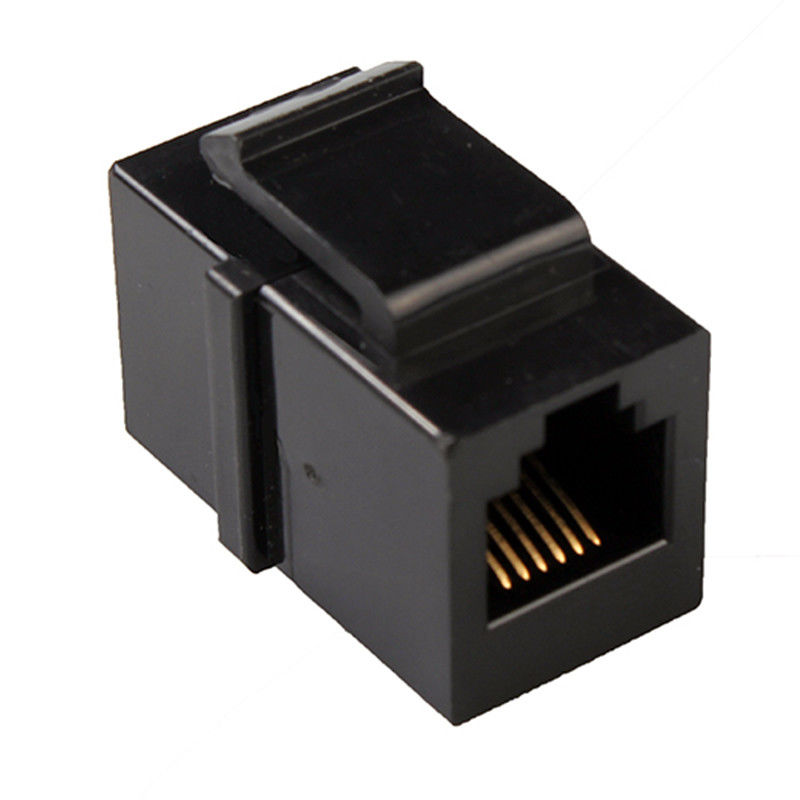

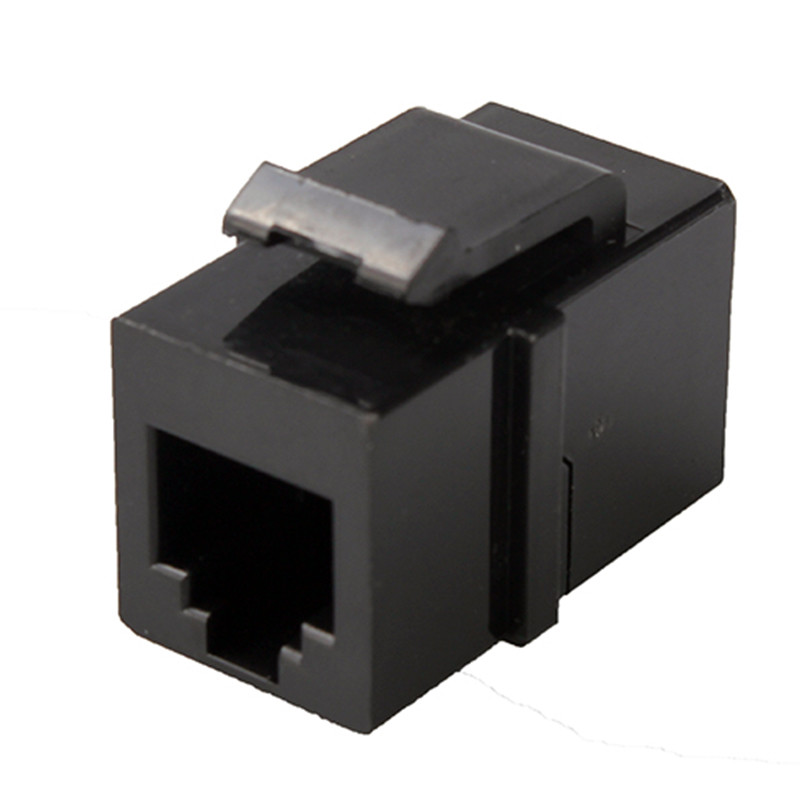

Female To Female RJ11 Inline Coupler Network LAN Connector Adapter
Female To Female RJ11 Inline Coupler Network LAN Connector Adapter Female To Female RJ11 Inline Coupler Network LAN Connector Adapter Female To Female RJ11 Inline Coupler Network LAN Connector Adapter
Contact Now

Female To Female RJ11 Inline Coupler Network LAN Connector Adapter

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3511SK004207111010

Detail Information
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Female To Female RJ11 Inline Coupler

,

Rohs RJ11 Inline Coupler

,

RJ11 LAN Connector Adapter

Product Description

Female To Female RJ11 Inline Coupler Network LAN Connector Adapter



Black Female to Female Network LAN Connector Adapter Coupler Extender RJ45 Ethernet Cable Join Extension Converter Coupler



Network LAN Connector Adapter(TMZT3511SK004207111010)Product Structure:

RJ11 Modular Jack

One to one Port

Connector Length: 26.96 mm

Connector Width: 14.48 mm

Connector Height: 16.13 mm

Termimal Solder Pin Length: 0 mm

6P6C ( 6 positions 6 contacts )

180°Orientation

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required



Network LAN Connector Adapter(TMZT3511SK004207111010) Attributes:,

Model: TMZT3511SK004207111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Network LAN Connector Adapter(TMZT3511SK004207111010) Mechnical Drawing:



Female To Female RJ11 Inline Coupler Network LAN Connector Adapter 0Female To Female RJ11 Inline Coupler Network LAN Connector Adapter 1
