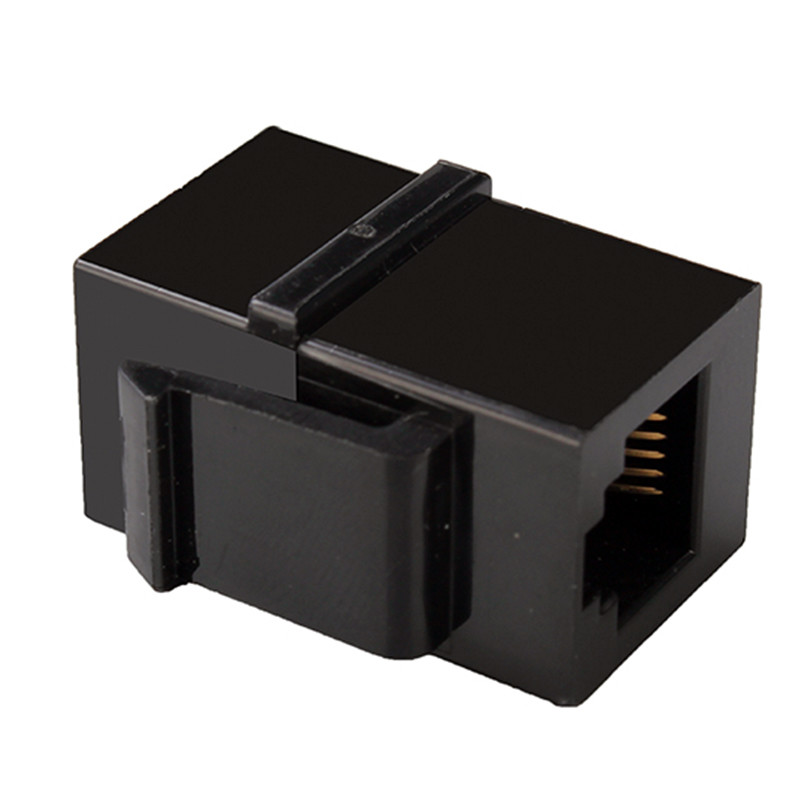

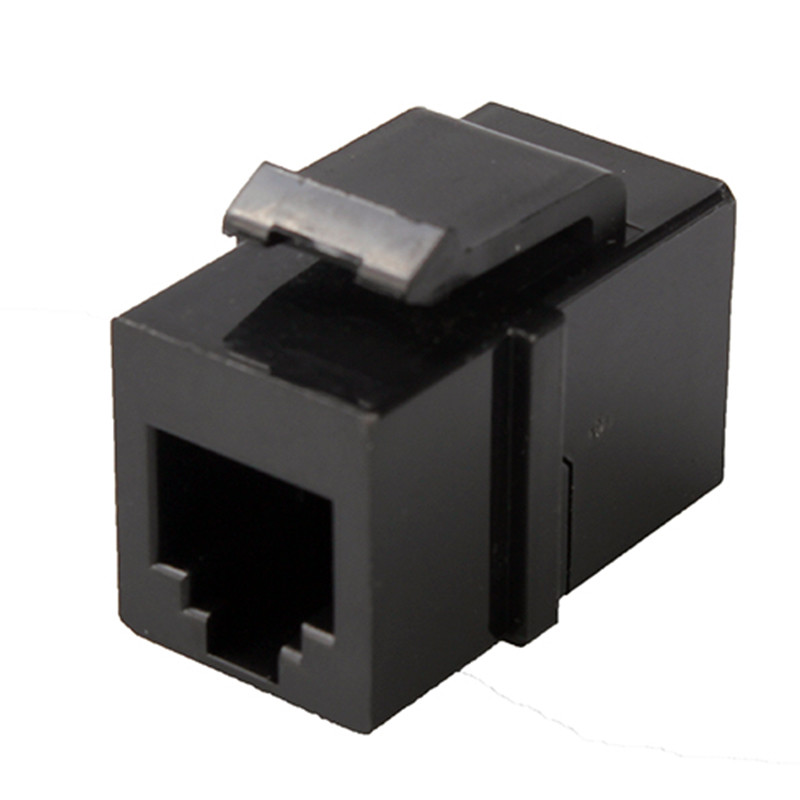

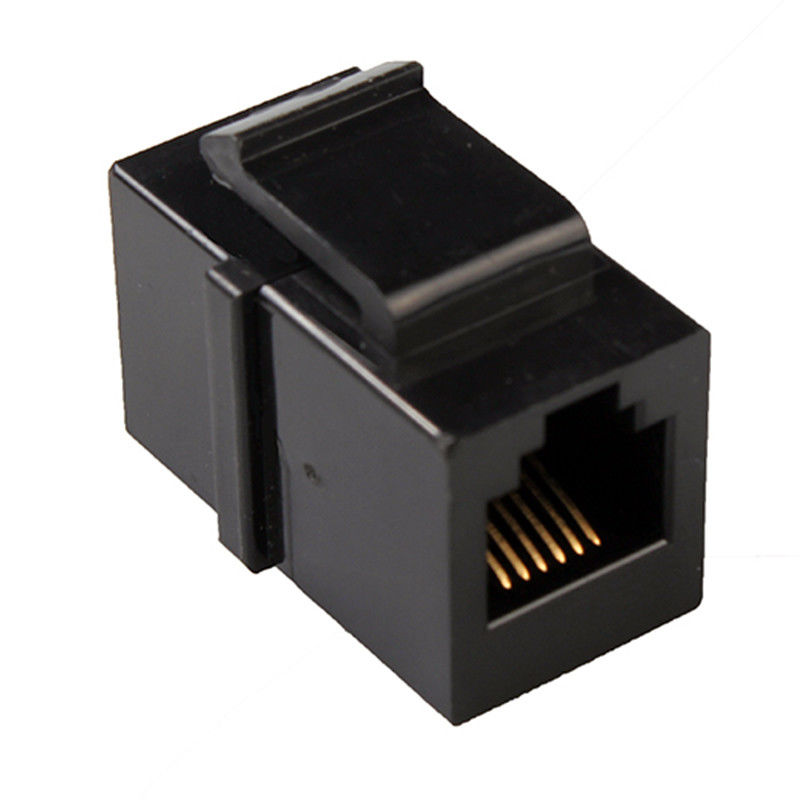

RJ11 Adapter Telephone Extension Connector Female to Female Modular
RJ11 Adapter Telephone Extension Connector Female to Female Modular RJ11 Adapter Telephone Extension Connector Female to Female Modular RJ11 Adapter Telephone Extension Connector Female to Female Modular
Contact Now

RJ11 Adapter Telephone Extension Connector Female to Female Modular

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3511SK004207111010

Detail Information
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

RJ11 Telephone Extension Connector

,

125V Telephone Extension Connector

,

125V RJ11 Adapter

Product Description

RJ11 Adapter Telephone Extension Connector Female To Female Modular

high quality Telephone extension connector F-F Modular Telephone crystal head RJ11 adapter TMZT3511SK004207111010

F-F Modular Telephone Adapter (TMZT3511SK004207111010) Attributes:,

Model:TMZT3511SK004207111010
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ11 Modular Connector
Jack Type:RJ11
Number of Positions :6
Terminals per Port:6
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year



F-F Modular Telephone Adapter Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

F-F Modular Telephone Adapter Product Structure:
RJ11 Modular Jack
One to one Port
Connector Length: 26.96 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

F-F Modular Telephone Adapter (TMZT3511SK004207111010) Mechnical Drawing:

RJ11 Adapter Telephone Extension Connector Female to Female Modular 0RJ11 Adapter Telephone Extension Connector Female to Female Modular 1
