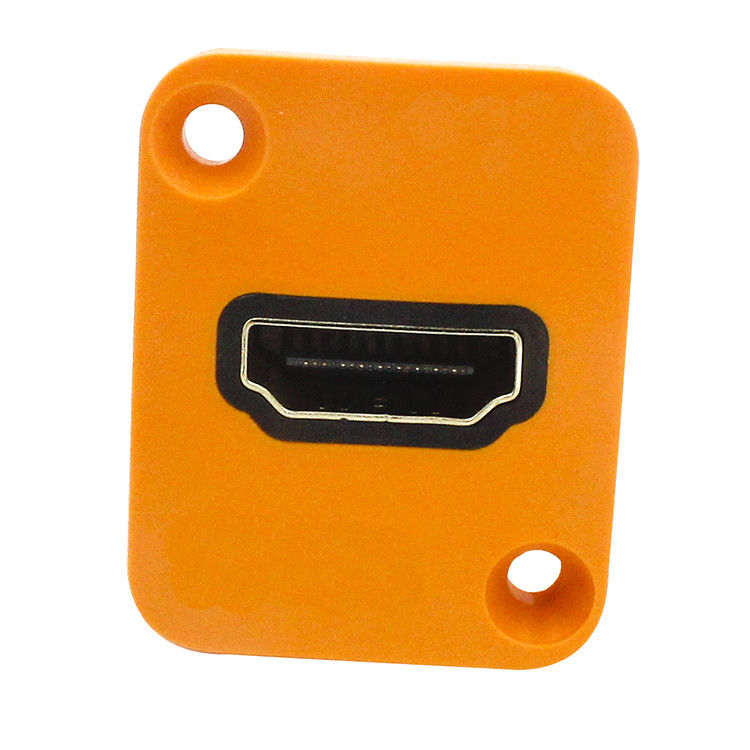

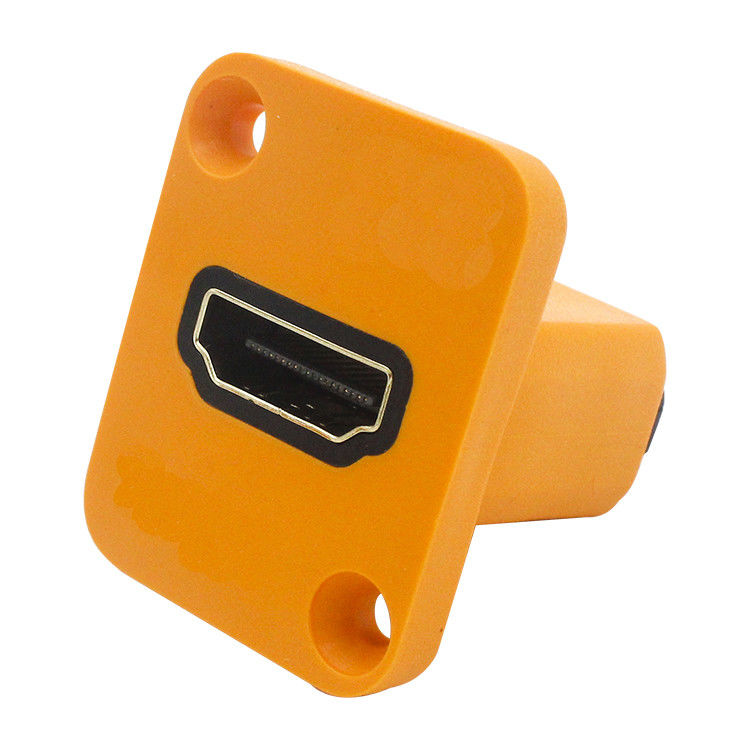

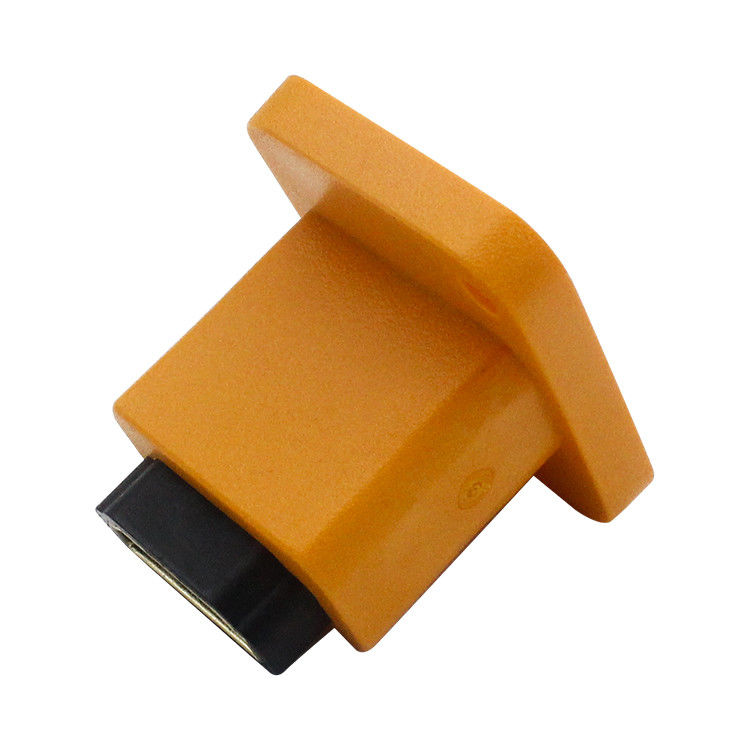

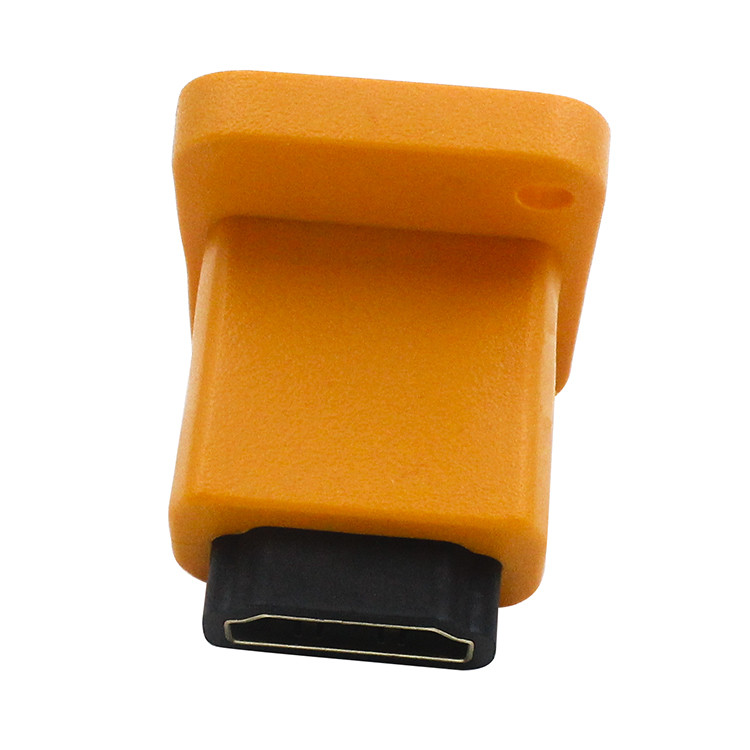

HDMI RJ45 Panel Mount Connector Female To Female Straight Through
HDMI RJ45 Panel Mount Connector Female To Female Straight Through HDMI RJ45 Panel Mount Connector Female To Female Straight Through HDMI RJ45 Panel Mount Connector Female To Female Straight Through HDMI RJ45 Panel Mount Connector Female To Female Straight Through
Contact Now

HDMI RJ45 Panel Mount Connector Female To Female Straight Through

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020011

Detail Information
Jack Type: HDMI Panel Stop: Yes
Screw Hole: Yes Terminals Per Port: 19
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 30Vmax Current Rating: 1.5A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability：: 750 CYCLES MIN
High Light:

Rohs RJ45 Panel Mount Connector

,

TMZJT020011 RJ45 Panel Mount Connector

,

TMZJT020011 Rj45 90 Degree Adapter

Product Description

HDMI RJ45 Panel Mount Connector Female To Female Straight Through



HDMI Adapter/Coupler Female To Female Straight Through With Panel & Screw Hole TMZJT020011



HDMI Adapter/Coupler Female To Female Straight Through With Panel & Screw Hole TMZJT020011



HDMI Adapter/Coupler Product Structure:


HDMI Modular Jack
One to one Port
Connector Length: 29 mm
Connector Width: 26 mm
Connector Height: 33 mm
Connector Lock hole spacing: 19*24 mm
19P19C ( 19 positions 19 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



HDMI Adapter/Coupler ( TMZJT020011) Mechnical Drawing:



HDMI RJ45 Panel Mount Connector Female To Female Straight Through 0
