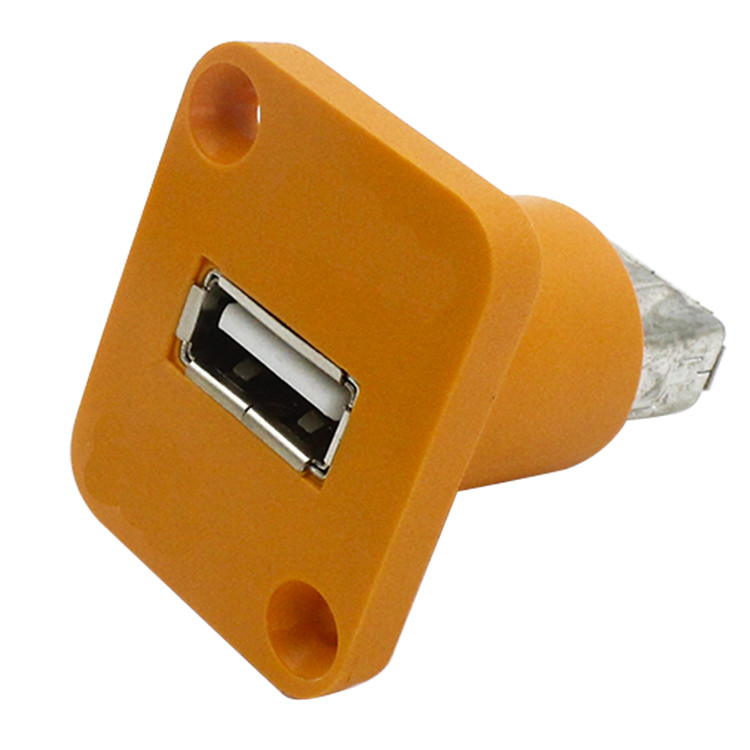

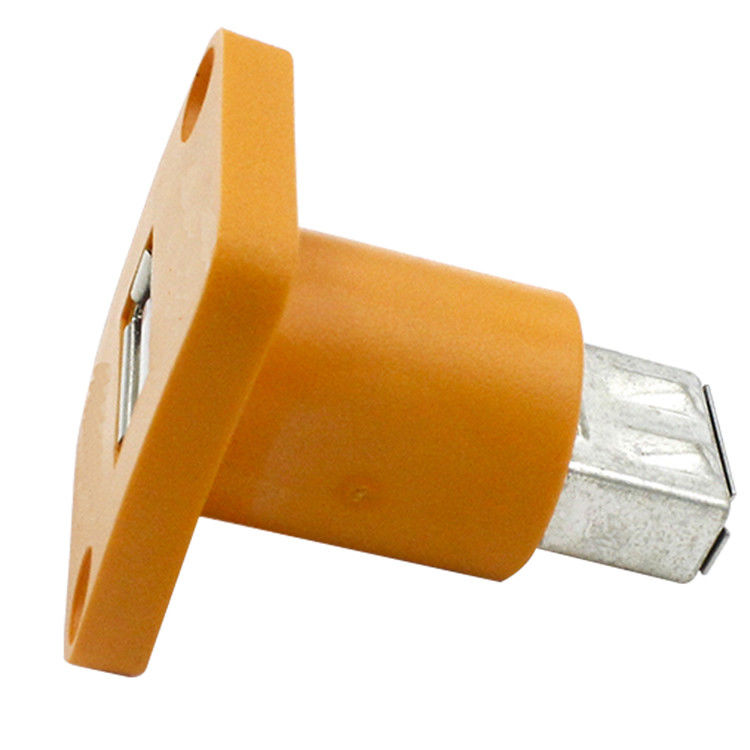

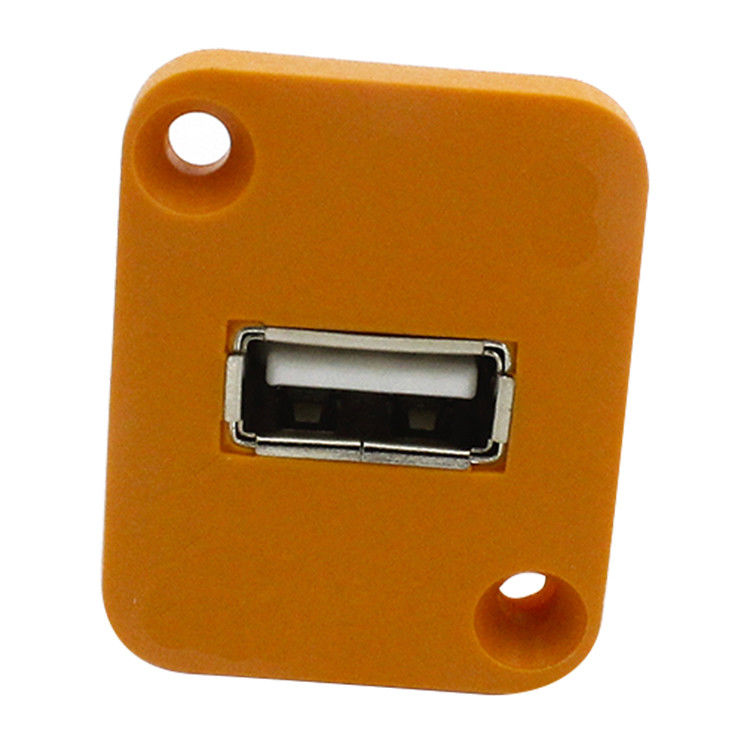

Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole
Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole
Contact Now

Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020010

Detail Information
Jack Type: USB 2.0/3.0 Coupler Terminals Per Port: 4
Panel Stop: Yes Screw Hole: Yes
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 30 V Max Contact Resistance: 30mΩ
Insulation Resistance: 100 MΩ MIN Dielectric Resistance: 500V AC RMS 50Hz. 1MIN
High Light:

rj45 90 degree adapter

,

rj45 female to female adapter

Product Description

Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw Hole





USB 2.0/3.0 Coupler/Adapter (TMZJT020010)Materials:


CONNECTOR :
Housing:PBT,BLACK,UL94V-0
Contact material:flat needle nickel plating, tin plating, contact area gold plating( RoHS )
Shielding Shell: Copper alloy with Nickel Plating over all
PCB: FR4 UL94V-0 ( RoHS )
Shell: PVC Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.




USB Female Connector ( TMZJT020010) Mechnical Drawing:

Female To Female USB 2.0/3.0 Coupler/Adapter With Panel Stop & Screw hole 0
