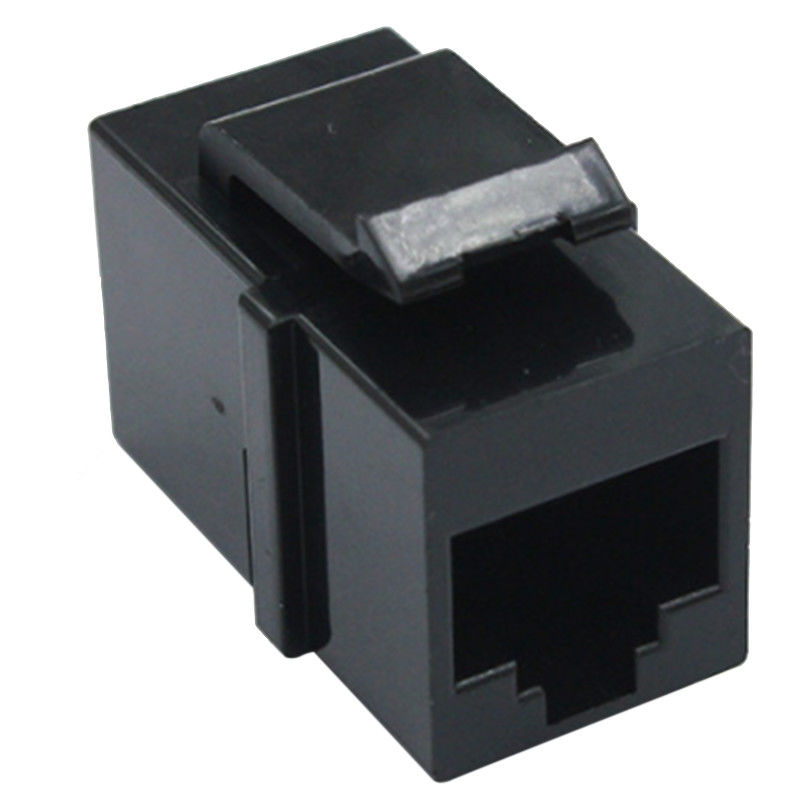

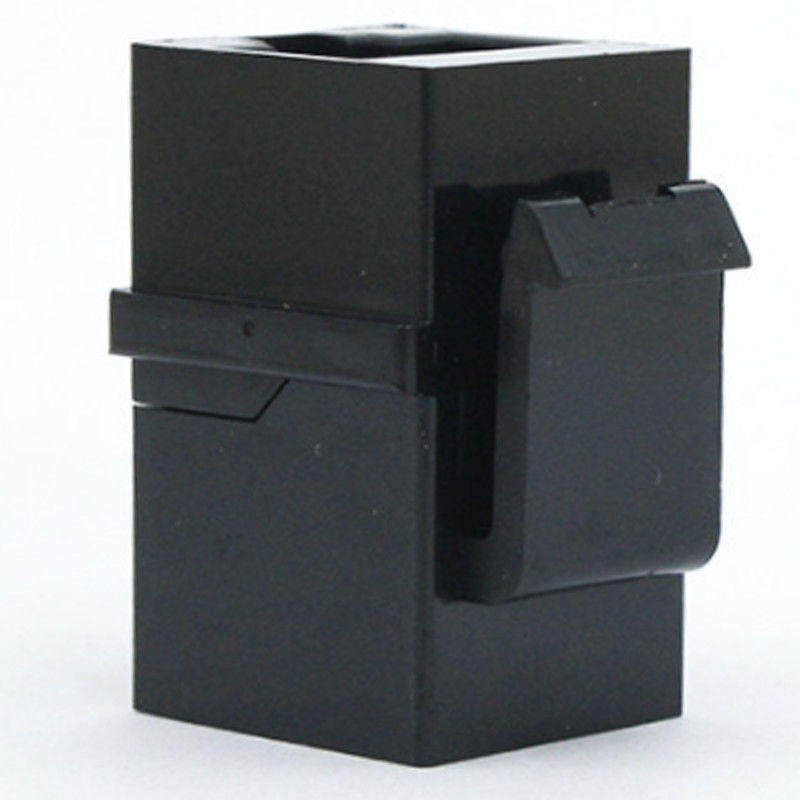

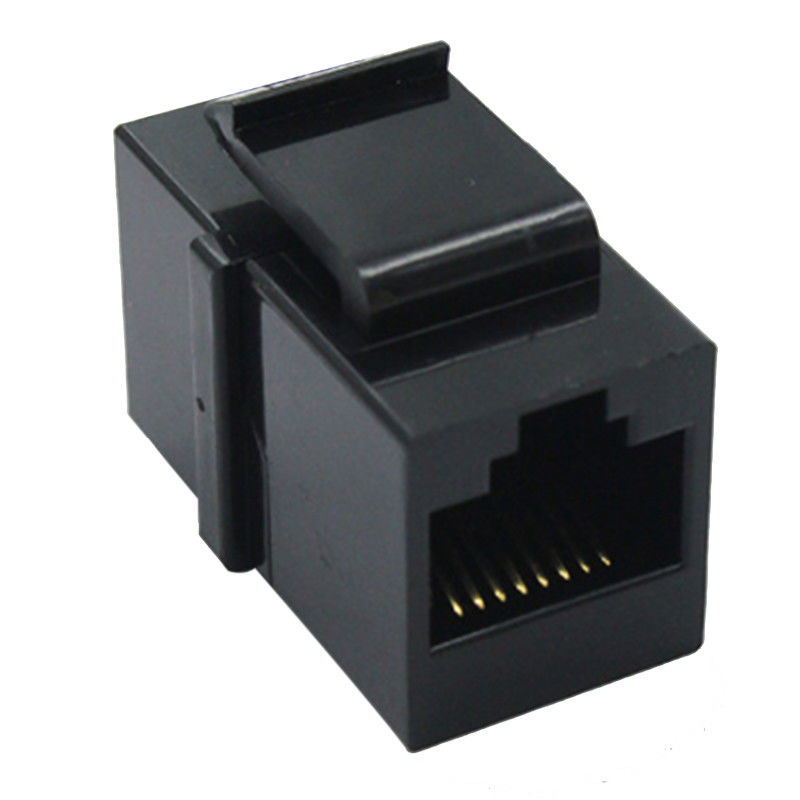

Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic
Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic
Contact Now

Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,1000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3811SK004207111059

Detail Information
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

RJ45 Female Adapter 16.13 Mm Height

,

ethernet female adapter

,

Low Profile RJ45 Female Adapter

Product Description

16.13 mm Height PBT Black Fully plastic rj45 Female low profile adapter Without Transformer



RJ45 Female adapter(TMZT3811SK004207111059) Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.


RJ45 Female adapter (TMZT3811SK004207111059)Product Structure:
RJ45 Modular Jack
Connector Length: 26.96 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Female adapter (TMZT3811SK004207111059) Attributes:



Model: TMZT3811SK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 50pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female adapter (TMZT3811SK004207111059) Mechnical Drawing:



Low Profile RJ45 Female Adapter 16.13 Mm Height PBT Black Fully Plastic 0
