30V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector
30V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector
Contact Now

30V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020010

Detail Information
Product Type: USB2.0 Modular Connector Jack Type: USB2.0
Number Of Positions: 4 Terminals Per Port: 4
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 30Vmax Current Rating: 1.5A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability：: 750 CYCLES MIN
High Light:

1.5A RJ45 Panel Mount Connector

,

30mΩ RJ45 Panel Mount Connector

,

1.5A Panel Mount Ethernet Connector

Product Description

30V Max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector



1.5A RJ45 Ethernet Connector Adapter Straight Through With Panel USB2.0

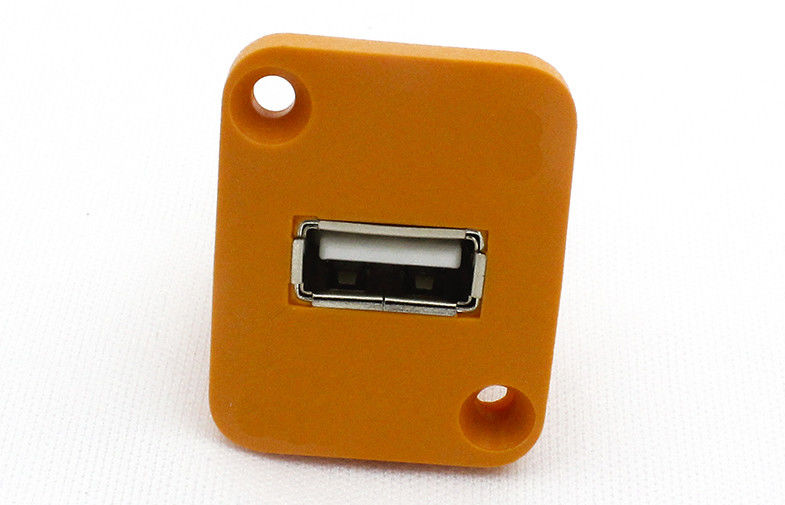

USB 2.0 Female to Female Straight through adapter with panel TMZJT020010



Materials:
CONNECTOR :
Housing:PBT,WHITE,UL94V-0
Contact material:flat needle nickel plating, tin plating, contact area gold plating( RoHS )
Gold plating:Fu” Optional
Shielding Shell: Steel casing with Nickel Plating over all
Wire: 1061# 26awg UL94V-0 ( RoHS )
Shell: PVC orange UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.



USB (TMZJT020010) Attributes:

Model: TMZJT020010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB2.0 Modular Connector
Jack Type: USB2.0
Number of Positions : 4
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 30Vmax
Current rating: 1.5A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 1pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



USB Female Connector ( TMZJT020010) Mechnical Drawing:

30V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector 030V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector 030V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector 0

30V max 1.5A RJ45 Panel Mount Connector USB2.0 Modular Connector 3
