Straight Extension RJ45 Ethernet Connector Adapter / Double Female Ethernet Adapter
Straight Extension RJ45 Ethernet Connector Adapter / Double Female Ethernet Adapter
Contact Now

Straight Extension RJ45 Ethernet Connector Adapter / Double Female Ethernet Adapter

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020011

Detail Information
Number Of Positions: 19 Terminals Per Port: 19
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 40 V Max Current Rating: 0.5 A Max
Contact Resistance: 10mΩ Insulation Resistance: 100 MΩ MIN
Dielectric Resistance: 500V AC RMS 50Hz. 1MIN
High Light:

rj45 90 degree adapter

,

rj45 female to female adapter

Product Description

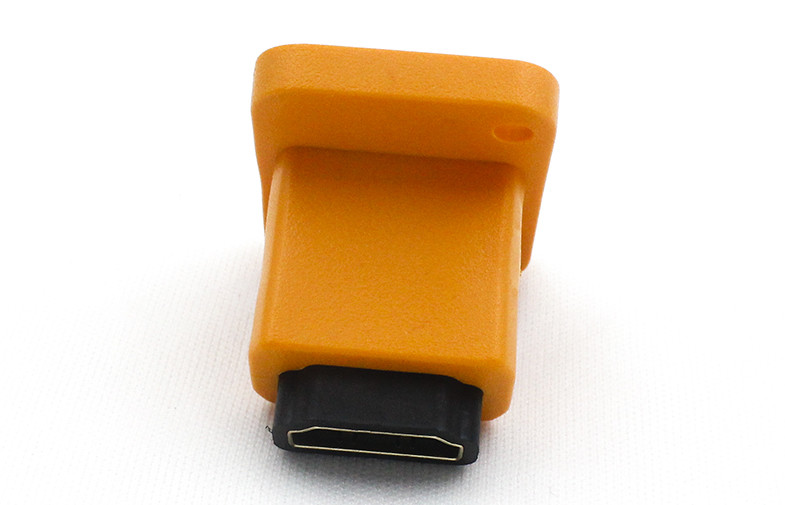

RJ45 90 degree with panel HDMI ,Female to Female straight extension adapter





Product Structure:


HDMI Modular Jack
One to one Port
Connector Length: 29 mm
Connector Width: 26 mm
Connector Height: 33 mm
Connector Lock hole spacing: 19*24 mm
19P19C ( 19 positions 19 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



HDMI Without Transformer (TMZJT020011) Attributes:



Model: TMZJT020011
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : HDMI Modular Connector
Jack Type: HDMI
Number of Positions : 19
Terminals per Port: 19
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 40 V max
Current rating: 0.5 A max
Contact resistance: 10mΩ
Insulation resistance: 100 MΩ MIN
Dielectric resistance: 500V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 1pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



HDMI Female Connector ( TMZJT020011) Mechnical Drawing:

Straight Extension RJ45 Ethernet Connector Adapter / Double Female Ethernet Adapter 0
