Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension Female 8P8C Keystone RJ45 Connector For Network Cable Extension Female 8P8C Keystone RJ45 Connector For Network Cable Extension Female 8P8C Keystone RJ45 Connector For Network Cable Extension Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Contact Now

Female 8P8C Keystone RJ45 Connector For Network Cable Extension

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3811SK004207111059

Detail Information
Product Type : RJ45 Modular Keystone Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

8P8C Keystone RJ45 Connector

,

Female Keystone RJ45 Connector

,

RoHS RJ45 Female Adapter

Product Description

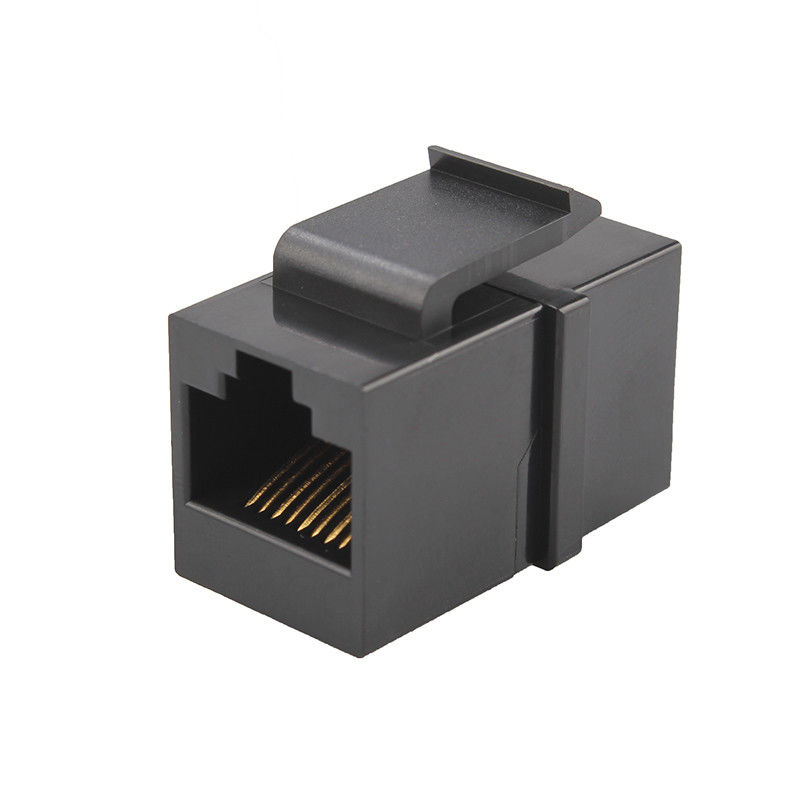

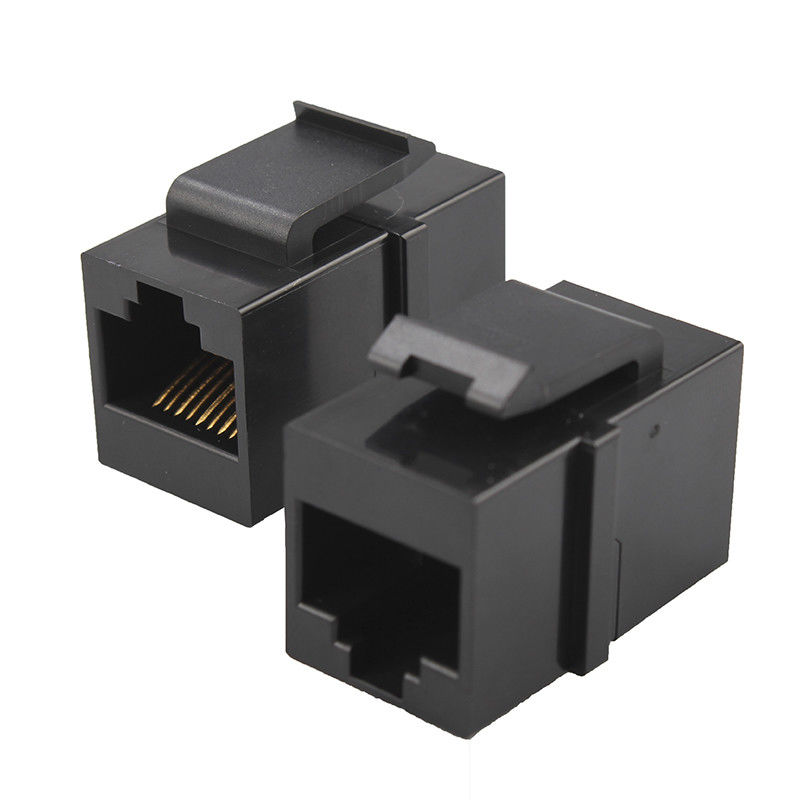

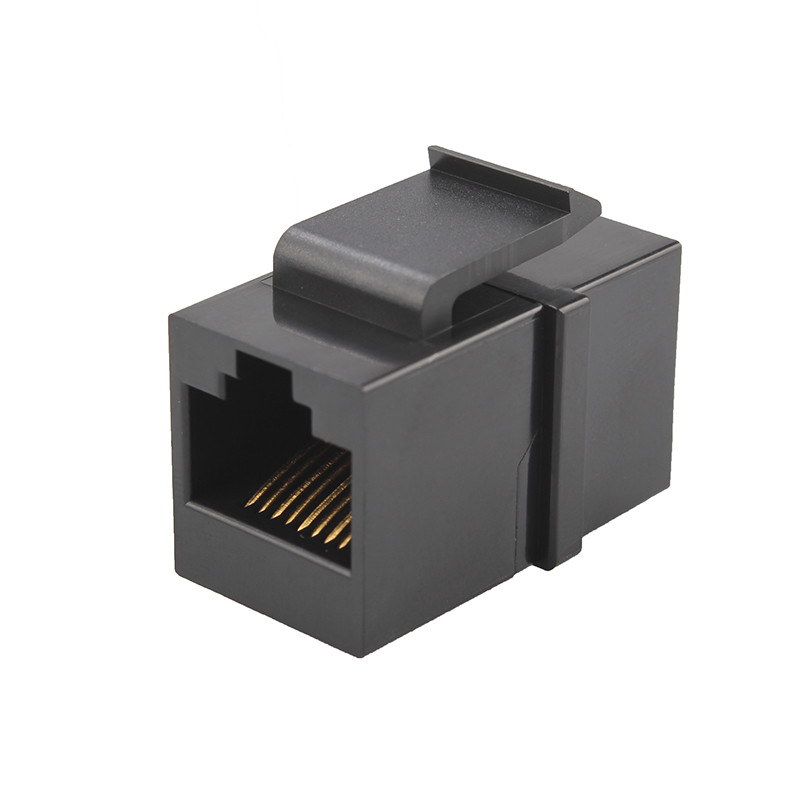

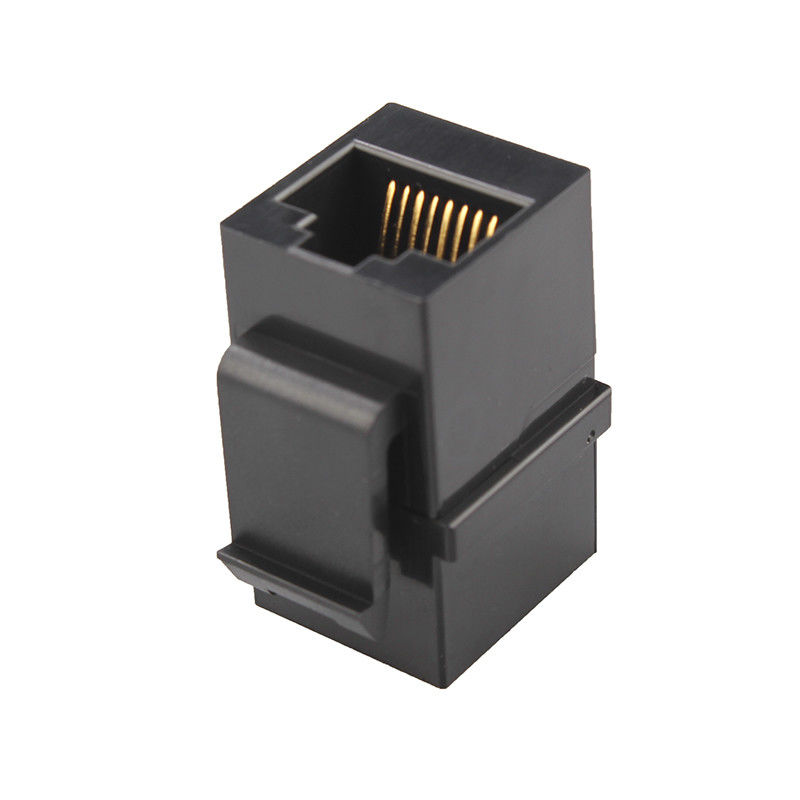

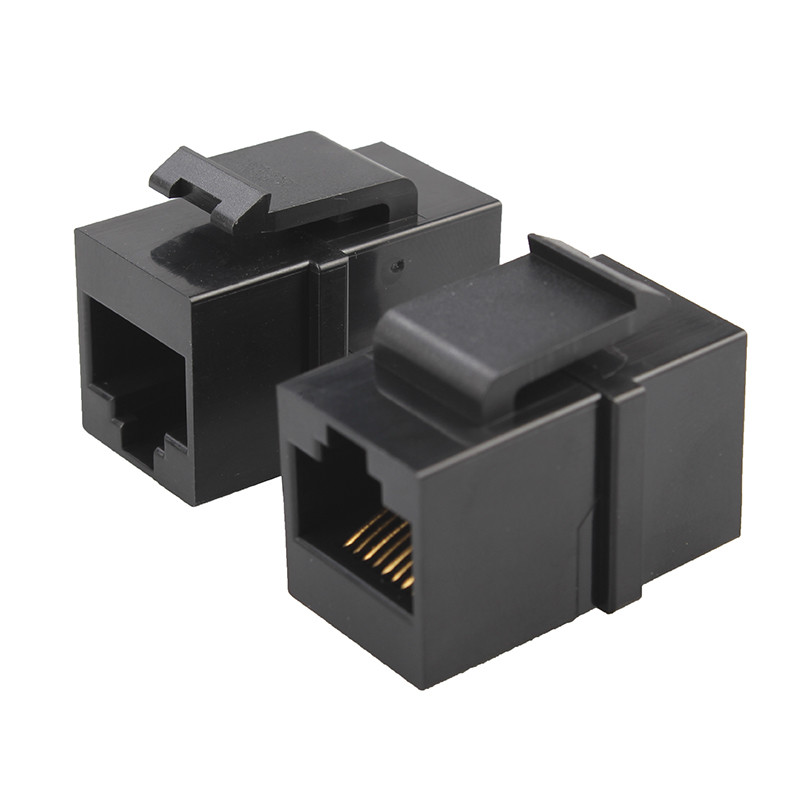

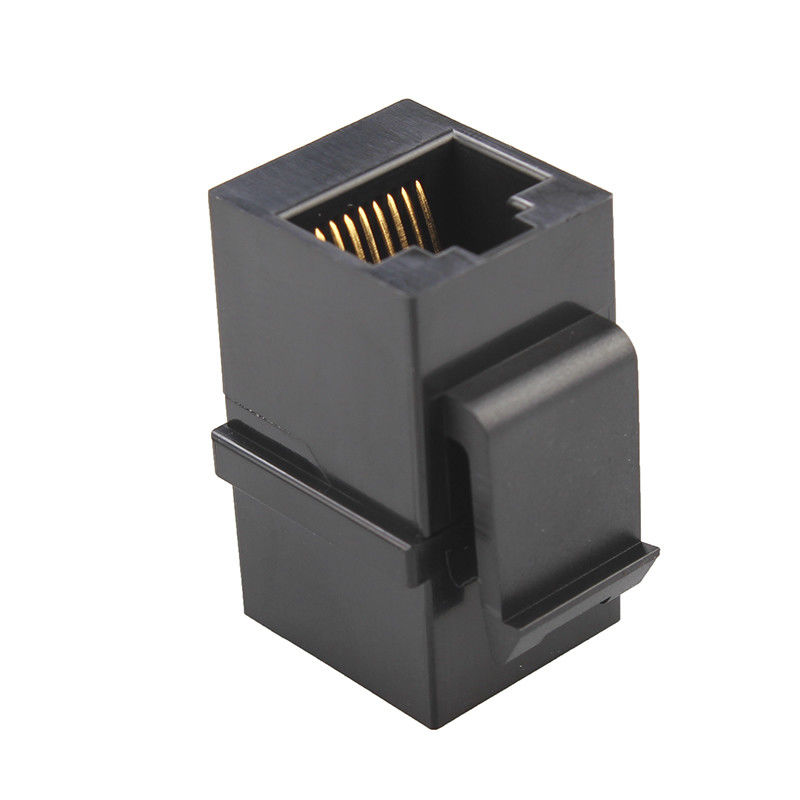

Keystone Rj45 Connector Female/ Female 8P8C For Network Cable Extension



Network Straight Through Coupler to extend the length of patch cords, or use in standard data wallplates to provide feed-through patching. Keystone design allows the coupler to be used as a stand-alone unit, mounted in a faceplate, or blank keystone type patch panel.



Model: TMZT3811SK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Keystone Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



Cat6 RJ45 Coupler Network Modular Keystone



Cat6 RJ45 Coupler Network Modular Drawing:

Female 8P8C Keystone RJ45 Connector For Network Cable Extension 1
