Home ProductsRJ11 Inline Coupler6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port
6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port
6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port 6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port 6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port
Contact Now

6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT3511SK004207111010

Detail Information
Jack Type: RJ11 Number Of Positions: 6
Terminals Per Port: 6 Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
High Light:

RJ11 Inline Coupler

,

Keystone RJ11 Inline Coupler

,

RJ11 Keystone Coupler

Product Description

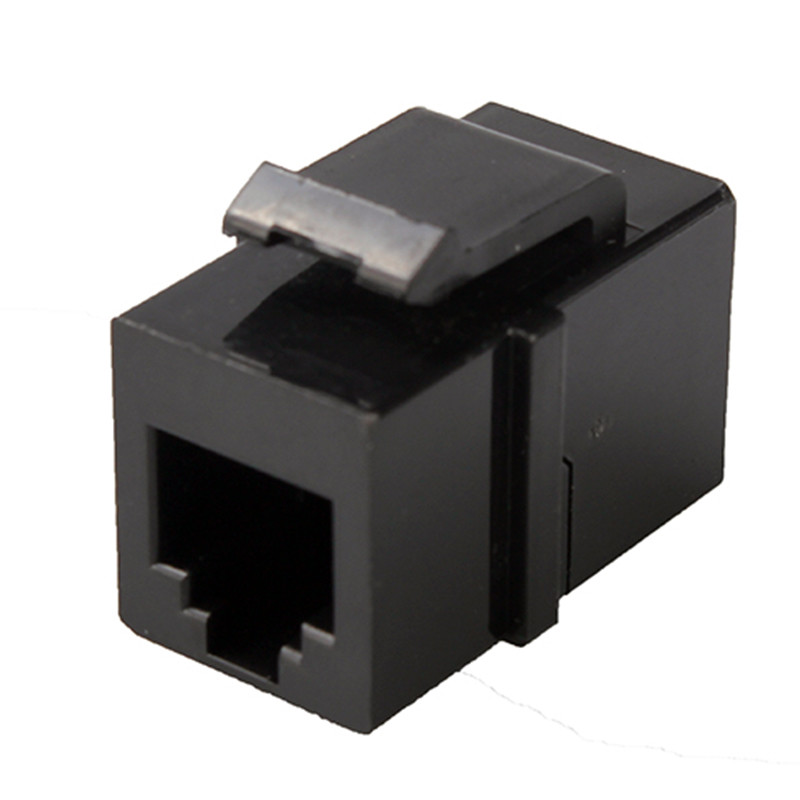

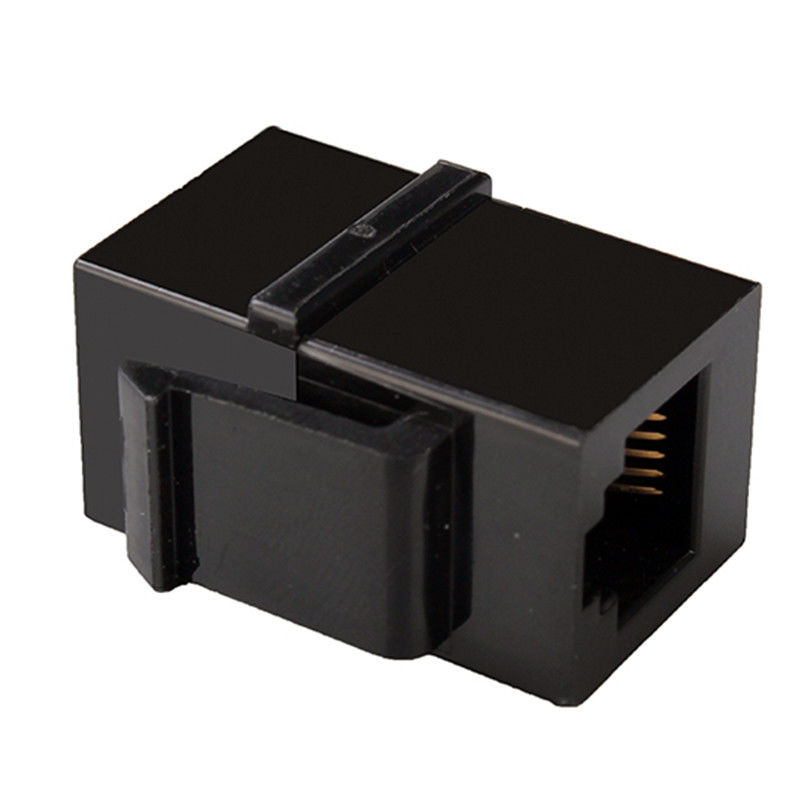

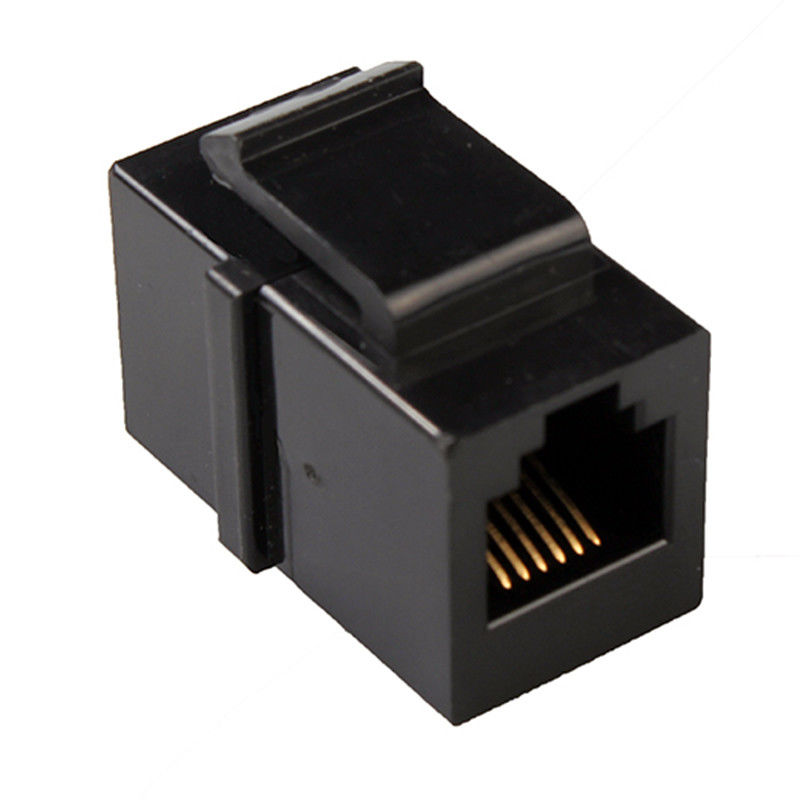

6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port

6 Positions 6 Contacts 180 Degree Angle Rj11 Keystone Coupler One To One Port​ TMZT3511SK004207111010

RJ11 Female Connector (TMZT3511SK004207111010) Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

RJ11 Female Connector (TMZT3511SK004207111010) Product Structure:
RJ11 Modular Jack
One to one Port
Connector Length: 26.96 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ11 Female Connector (TMZT3511SK004207111010) Attributes:,

Model:TMZT3511SK004207111010
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ11 Modular Connector
Jack Type:RJ11
Number of Positions :6
Terminals per Port:6
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year


RJ11 Female Connector (TMZT3511SK004207111010) Mechnical Drawing:

6P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port 06P6C 180 Degree Angle Keystone RJ11 Inline Coupler One To One Port 1

Tag:

rj11 modular jack

rj11 female jack

rj11 modular connector
