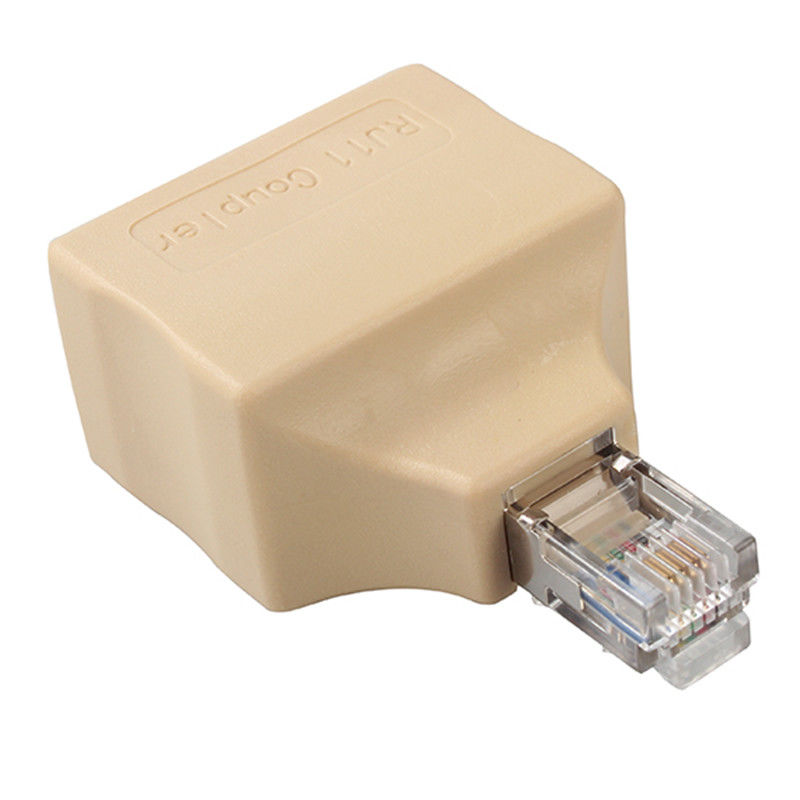

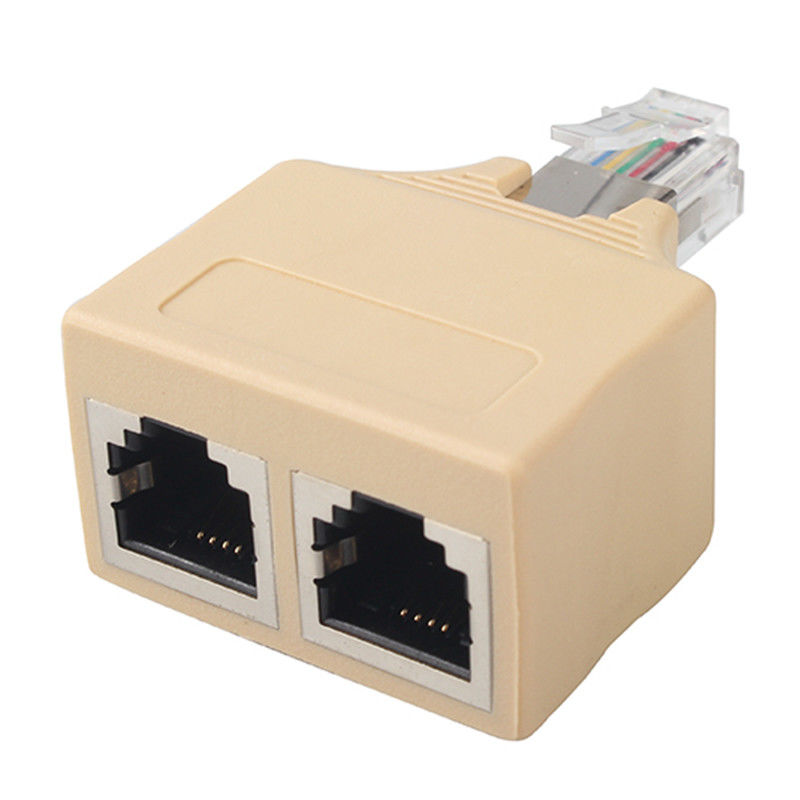

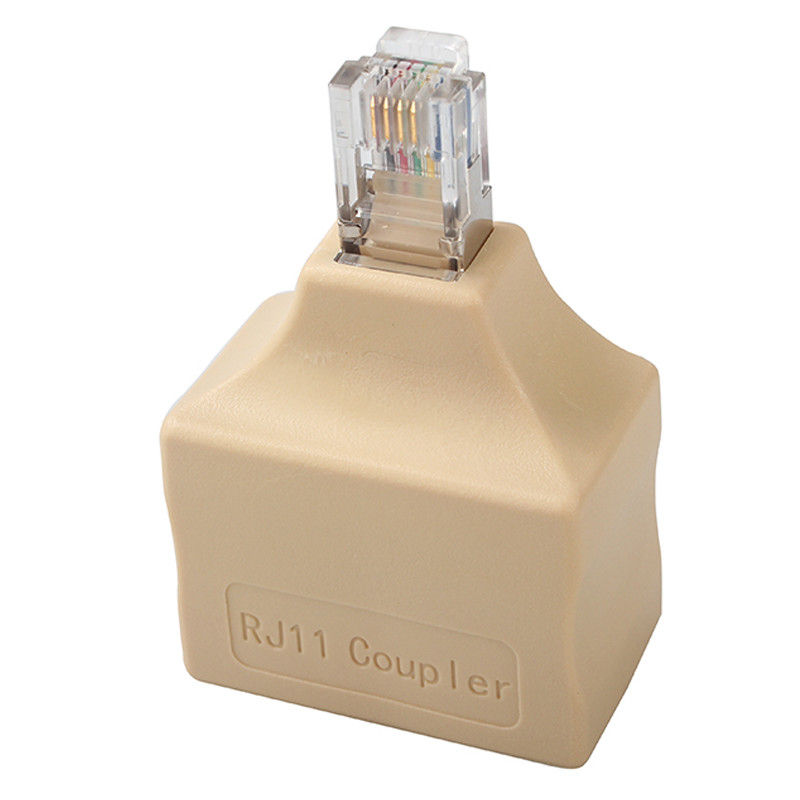

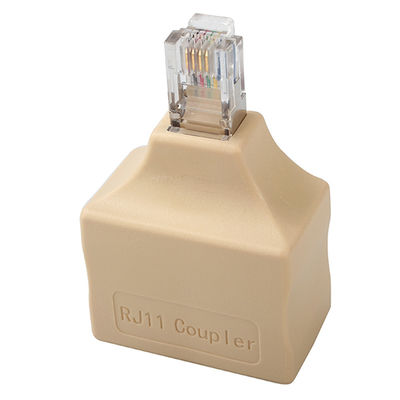

Unshielded RJ11 Modular Adapter Female To Female One Revolution
Unshielded RJ11 Modular Adapter Female To Female One Revolution Unshielded RJ11 Modular Adapter Female To Female One Revolution Unshielded RJ11 Modular Adapter Female To Female One Revolution
Contact Now

Unshielded RJ11 Modular Adapter Female To Female One Revolution

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMNJ2512SX00210CA41000

Detail Information
Number Of Positions: 6 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
High Light:

RJ11 Modular Adapter

,

Unshielded RJ11 Modular Adapter

,

Unshielded RJ11 Jack

Product Description

Unshielded RJ11 Modular Adapter Female To Female One Revolution



Unshielded Rj11 Modular Adapter / Rj11 Female To Female One Revolution



RJ11 one revolution two Female Adapte TMNJ2512SX00210CA41000



RJ11 Two Female Adapte Materials:
CONNECTOR :
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating over nickel( RoHS )
Gold plating:1.5u” Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all( RoHS )
PCB: FR4 UL94V-0 ( RoHS )
Plug:6P6C Shield shell,PC
Shell: PVC Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.


RJ11 Two Female Adapte Product Structure:
RJ11 Modular Jack
RJ11 Connector Length: 48.5 mm
RJ11 Connector Width: 32.5 mm
RJ11 Connector Height: 20 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ11 Two Female Adapte (TMNJ2512SX00210CA41000) Attributes:



Model: TMNJ2512SX00210CA41000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Adapte
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 1pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union, ,Paypal
Supply Ability: 500K/year



RJ11 Two Female Adapte (TMNJ2512SX00210CA41000) Mechnical Drawing:



Unshielded RJ11 Modular Adapter Female To Female One Revolution 0

Unshielded RJ11 Modular Adapter Female To Female One Revolution 1
